February, 2008
4-84
WorkCentre 5225, 5230
REP 12.2
Launch Version
Repairs and Adjustments
REP 12.2 Tray 4 Feeder (2TM)
Parts List on PL 12.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Pull out Tray 3/4.
2. Remove the Foot Covers. (Figure 1)
1. Loosen the screw (1).
2. Remove the Foot Cover (1).

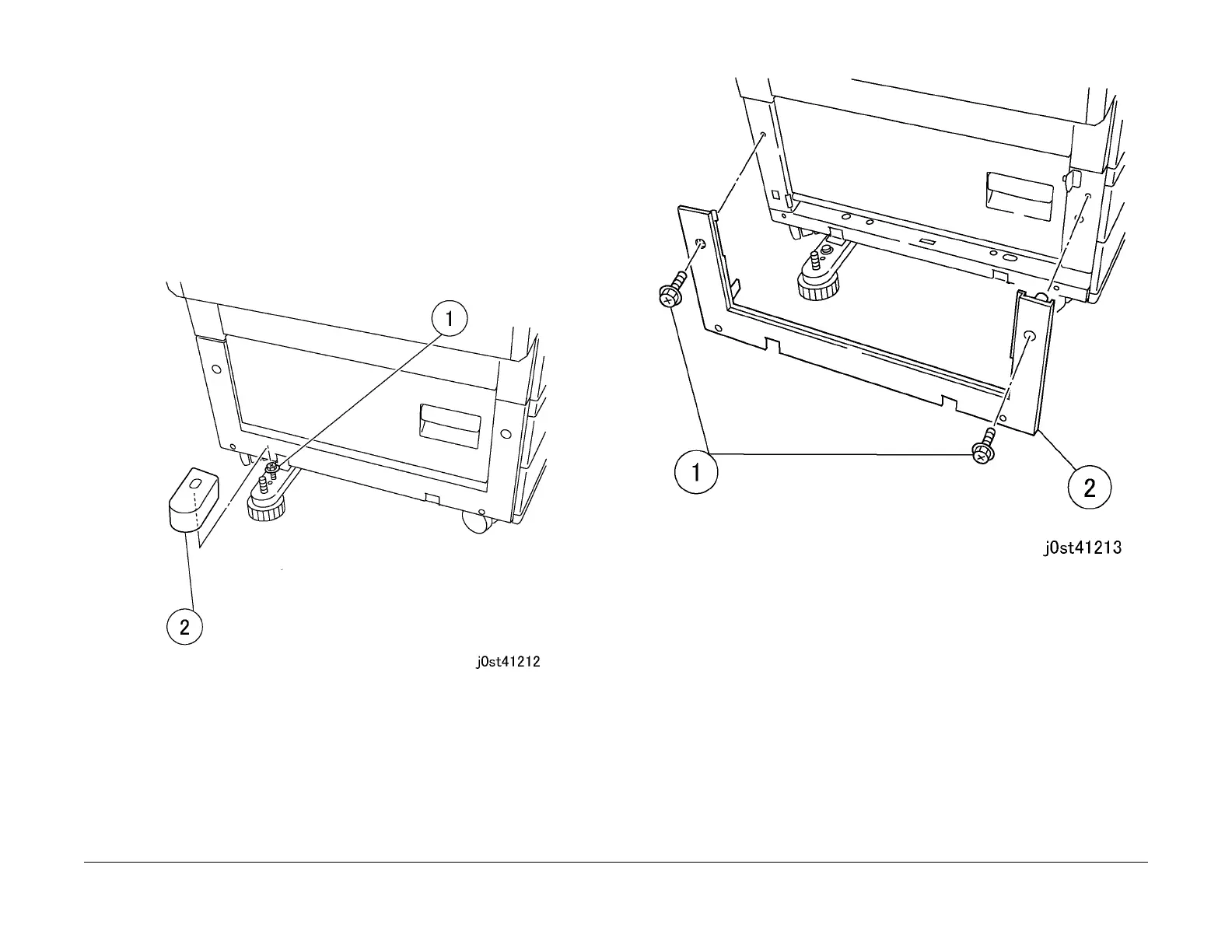

Figure 1 Removing the Foot Covers (j0st41212)
3. Remove the Left Lower Cover. (Figure 2)
1. Removing the screws (x2).
2. Removing the Left Lower Cover.
Figure 2 Removing the Left Lower Cover (j0st41213)
4. Open the Left Cover Assembly.
5. Remove the screws. (Figure 3)
1. Remove the screws.
To Next Page
