Xerox WorkCentre 5230 User Manual

February, 2008
5-40
WorkCentre 5225, 5230
PL 11.4
Launch Version
Parts List

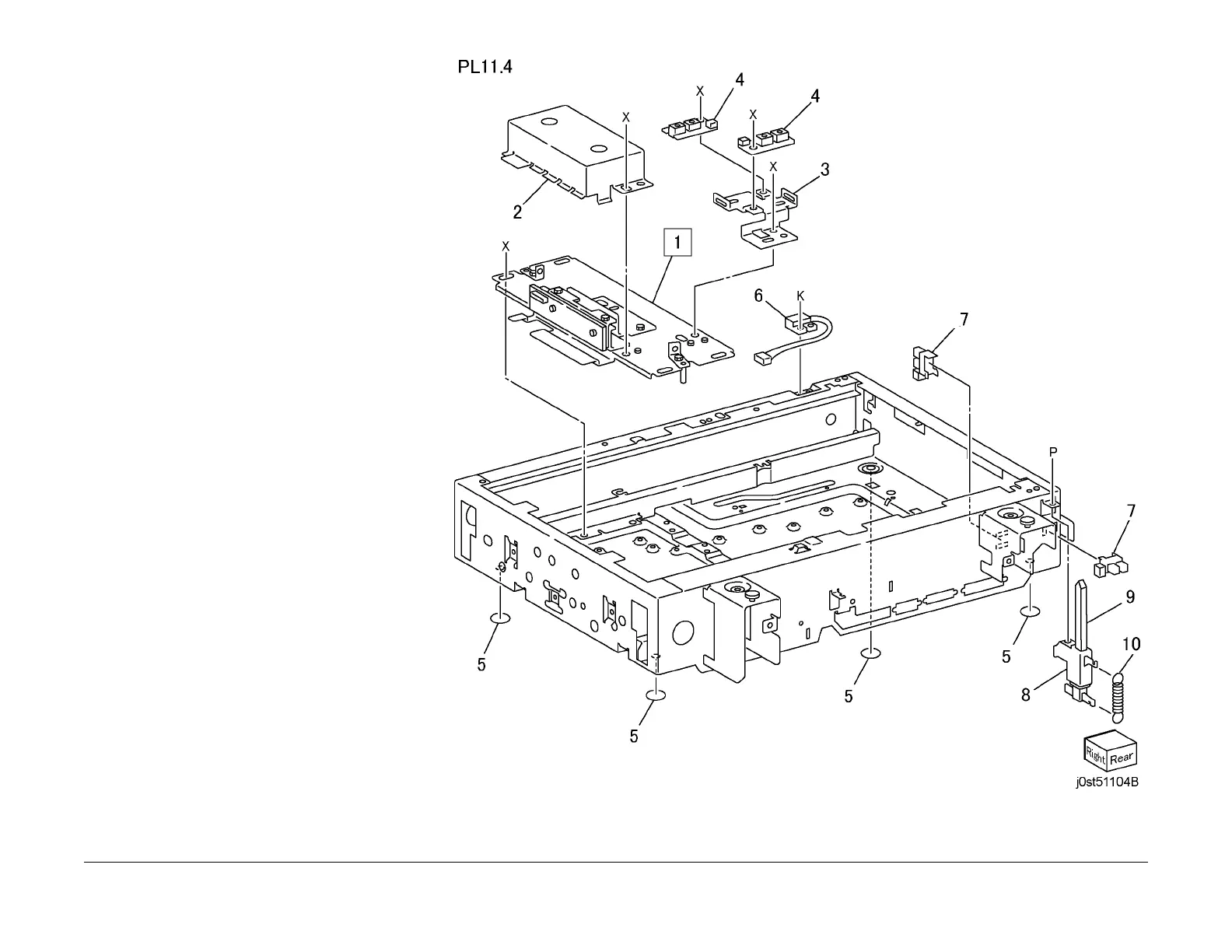

PL 11.4 CCD PWB, Sensor
Item Part Description
1 062K19060 Lens Kit (REP 11.4.1)
2 – Lens Cover (P/O PL 11.1 Item 10)
3 – Bracket (P/O PL 11.1 Item 10)
4 130K64150 APS Sensor
5 – Seal (P/O PL 11.1 Item 10)
6 110K11960 Platen Open Switch
7 130E87280 IIT Registration Sensor, Platen
Angle Sensor
8 – Support (P/O PL 11.1 Item 10)
9 120E22031 Actuator
10 – Spring (P/O PL 11.1 Item 10)
