February, 2008
4-94
WorkCentre 5225, 5230
REP 13.4.1
Launch Version
Repairs and Adjustments

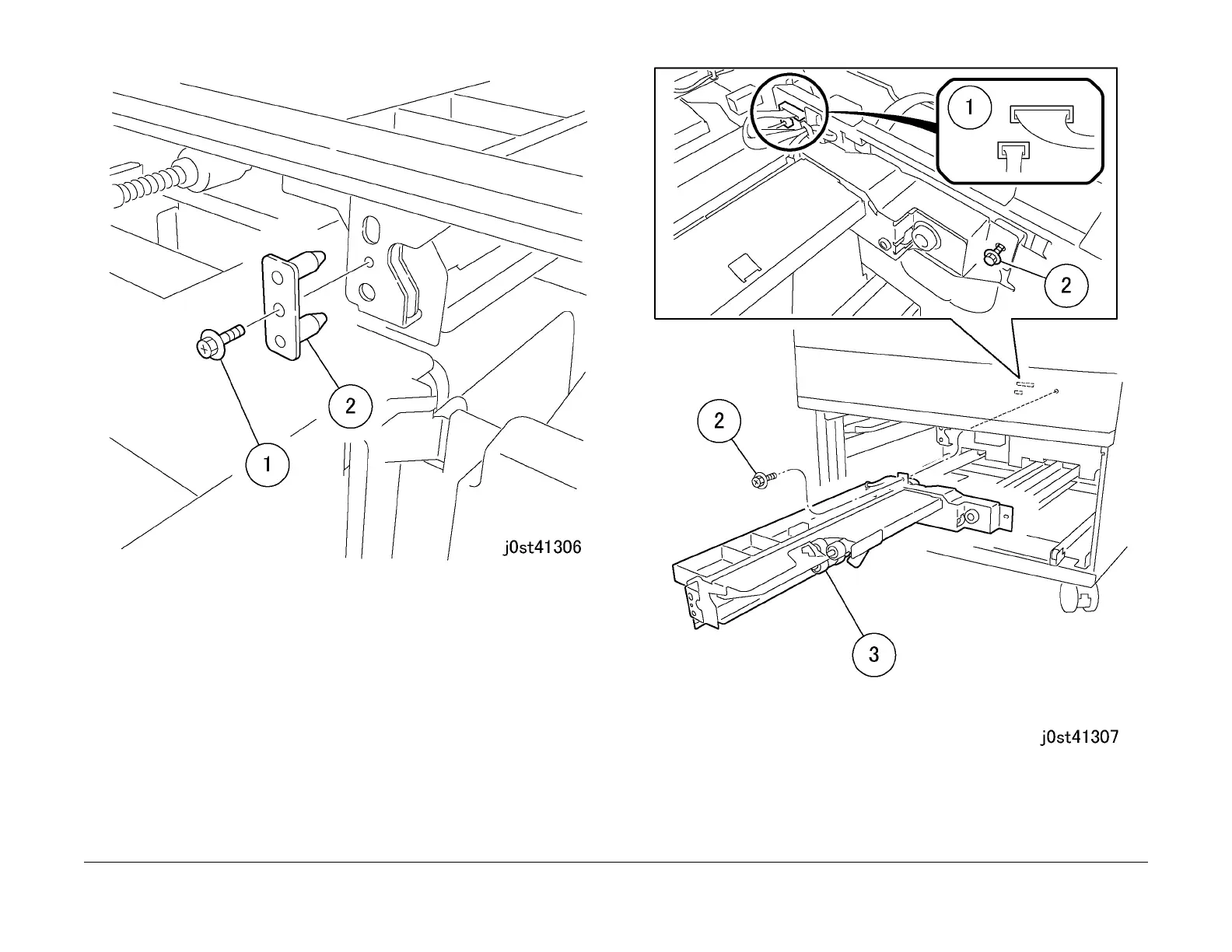

Figure 2 Removing the Stud Bracket (j0st41306)
5. Remove the Tray 4 Feeder Assembly. (Figure 3)
1. Disconnect the connectors (x2).
2. Remove the screws (x2).
3. Remove the Tray 4 Feeder Assembly.
Figure 3 Removing the Tray 4 Feeder Assembly (j0st41307)
6. Remove the Tray 4 Feeder. (Figure 4)
1. Remove the screws (x2).
2. Remove the Upper Chute.
