Xerox WorkCentre 5230 User Manual

February, 2008
4-65
WorkCentre 5225, 5230
REP 11.3.2, REP 11.4.1
Repairs and Adjustments
Launch Version
2. When having replaced the IIT/IPS PWB, install the EP ROM from the old IIT/IPS PWB on
the new IIT/IPS PWB. (Figure 4)

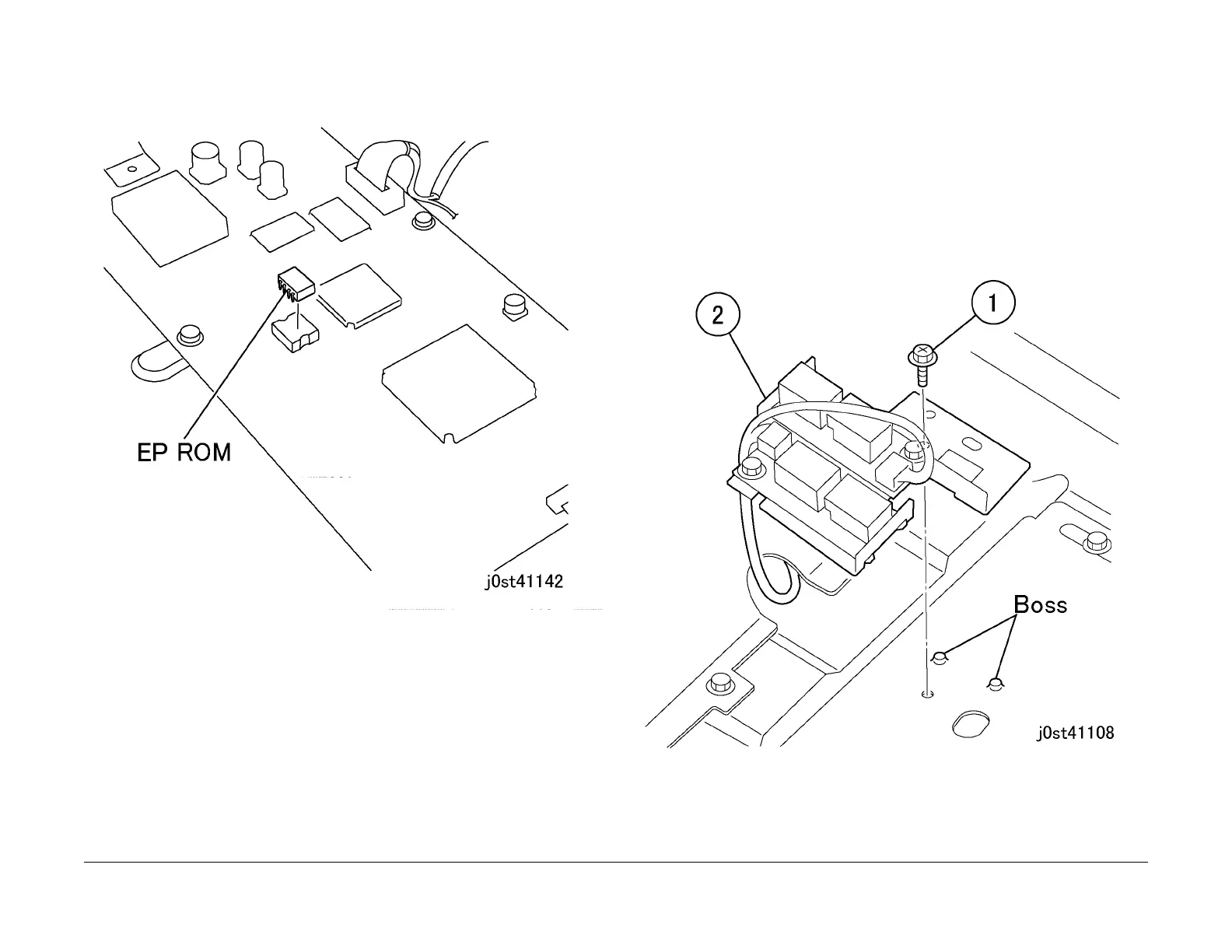

Figure 4 EP ROM Replacement (j0st41142)
REP 11.4.1 Lens Kit Assembly
Parts List on PL 11.4
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the Platen Glass. (REP 11.3.1)
2. Remove the APS Sensor. (Figure 1)
1. Remove the Screw.
2. Remove the APS Sensor.
Figure 1 Removing the APS Sensor (j0st41108)
3. Remove the Lens Cover. (Figure 2)
1.Remove the screws (x2).
