Xerox WorkCentre 5230 User Manual

February, 2008
4-201
WorkCentre 5225, 5230
REP 22.8.2
Repairs and Adjustments
Launch Version

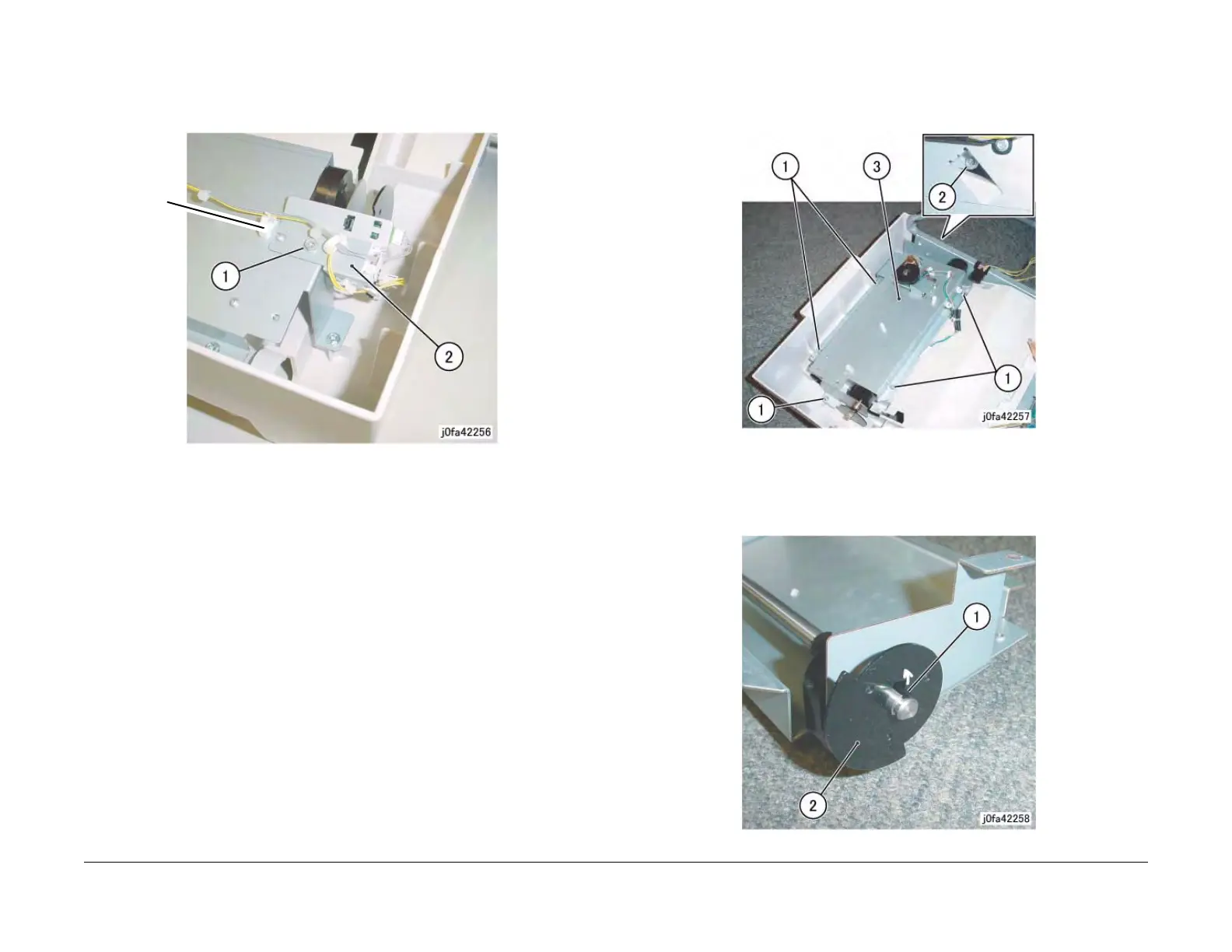

9. Remove the Stacker Stack Sensor Assembly. (Figure 5)
(1)Remove Screw.
(2)Remove Stacker Stack Sensor Assembly.
(3)Remove wires from Clamps (4)
Figure 5 Removing the Stacker Stack Sensor Assembly (j0fa42256)
10. Remove the Stacker Assembly. (Figure 6)
(1)Remove Tapping Screws (5).
(2)Remove Screw.
(3)Remove Stacker Assembly.
Figure 6 Removing the Stacker Assembly (j0fa42257)
11. Remove the Actuator. (Figure 7)
(1)Unhook.
(2)Remove Actuator.
Figure 7 Removing the Actuator (j0fa42258)
Clamp (4)

Xerox WorkCentre 5230 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Standard input capacity	500 sheets
Internal memory	No MB
Type	Digital copier
