Xerox WorkCentre 5230 User Manual

February, 2008
5-64
WorkCentre 5225, 5230
PL 15.5
Launch Version
Parts List

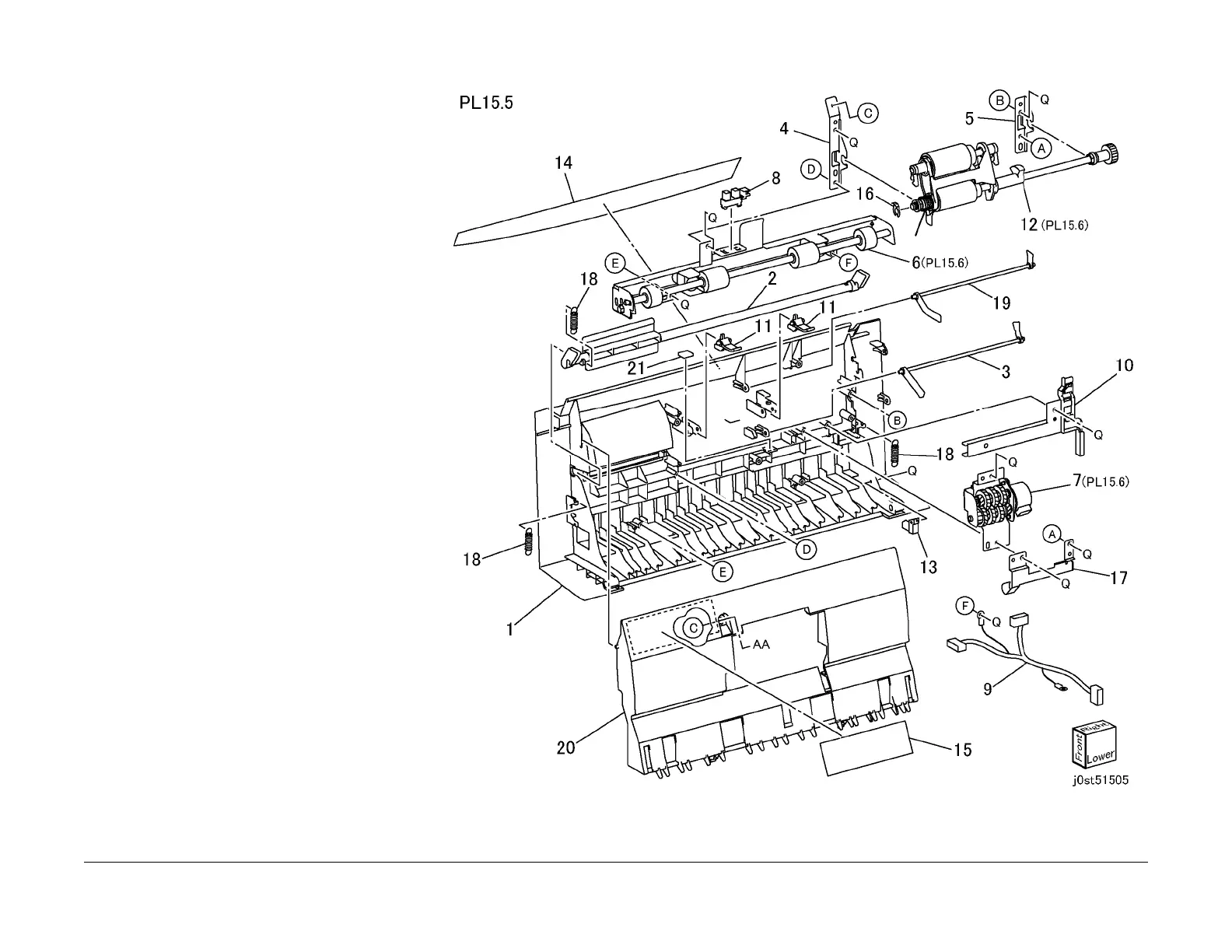

PL 15.5 Top Cover Component
Item Part Description
1 – Top Cover (P/O PL 15.4 Item 4)
2 – Handle Lever (P/O PL 15.4 Item 4)
3 – Actuator (Feed Out) (P/O PL 15.4
Item 4)
4 – Bracket (P/O PL 15.4 Item 4)
5 – Bracket (P/O PL 15.4 Item 4)
6 059K60740 Takeaway Pinch Roll
7 127K38412 DADF Nudger Motor
8 930W00111 DADF Nudger Sensor
9 962K19705 Wire Harness
10 – Harness Guide (P/O PL 15.4 Item
4)
11 – Set Guide (P/O PL 15.4 Item 4)
12 059K48900 Nudger/Feed Roll Assembly
13 – Harness Guide (P/O PL 15.4 Item
4)
14 – Label (Size) (P/O PL 15.4 Item 4)
15 – Label (Jam Clear) (P/O PL 15.4
Item 4)
16 028E94260 K-Clip
17 – Plate Spring (P/O PL 15.4 Item 4)
18 – Spring (P/O PL 15.4 Item 4)
19 – Actuator (Set) (P/O PL 15.4 Item 4)
20 – Chute (P/O PL 15.4 Item 4)
21 – Pad (P/O PL 15.4 Item 4)

Xerox WorkCentre 5230 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Standard input capacity	500 sheets
Internal memory	No MB
Type	Digital copier
