February, 2008
5-72
WorkCentre 5225, 5230
PL 18.3
Launch Version
Parts List

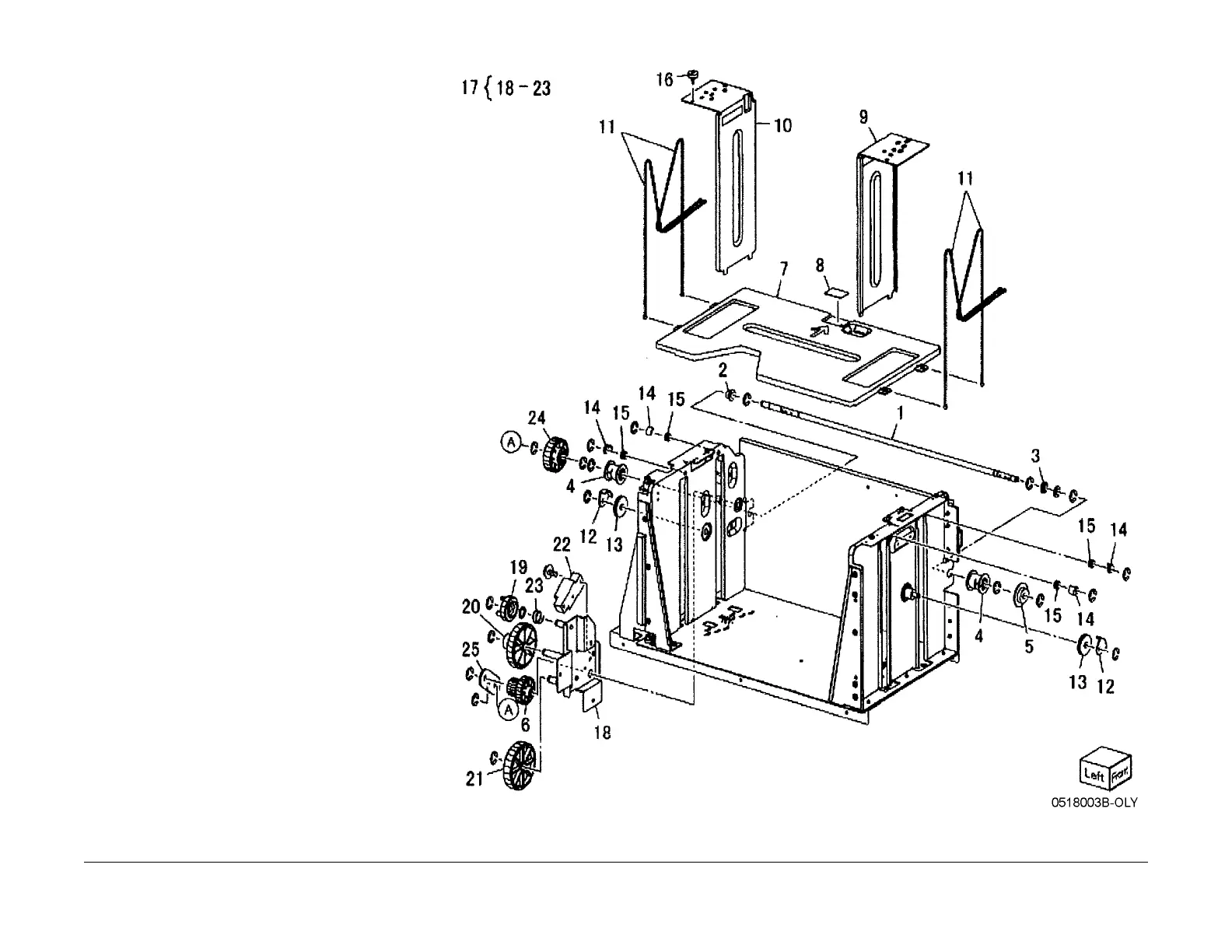

PL 18.3 HCF Tray 6 (2 of 2)
Item Part Description
1 – Lift Shaft (P/O PL 18.1 Item 5)
2 – Bearing (P/O PL 18.1 Item 5)
3 – Bearing (P/O PL 18.1 Item 5)
4 020E37620 Tray Cable Pulley
5 – Gear (P/O PL 18.1 Item 5)
6 – Gear (P/O PL 18.1 Item 5)
7 815E09030 Bottom Plate
8 019E58620 Pad
9 – front Side Guide (P/O PL 18.1 Item
5)
10 – Rear Side Guide (P/O PL 18.1 Item
5)
11 604K19981 Tray Cable Pulley (REP 7.3.4)
12 032E22410 Wire Guide (L)
13 – Pulley
14 – Wire Guide (S) (P/O PL 18.1 Item
5)
15 – Pulley (P/O PL 18.1 Item 5)
16 –Screw
17 015K65531 Gear Bracket Assembly
18 – Gear Bracket (P/O PL 18.3 Item 17)
19 – Contact Gear (P/O PL 18.3 Item
17)
20 – Gear (P/O PL 18.3 Item 17)
21 – Gear (P/O PL 18.3 Item 17)
22 – Brake (P/O PL 18.3 Item 17)
23 – Spring (P/O PL 18.3 Item 17)
24 807E04500 Lift Gear
25 – Plate (P/O PL 18.1 Item 5)
