Xerox WorkCentre 5230 User Manual

February, 2008
4-16
WorkCentre 5225, 5230
REP 2.6.1, REP 2.6.2
Launch Version
Repairs and Adjustments

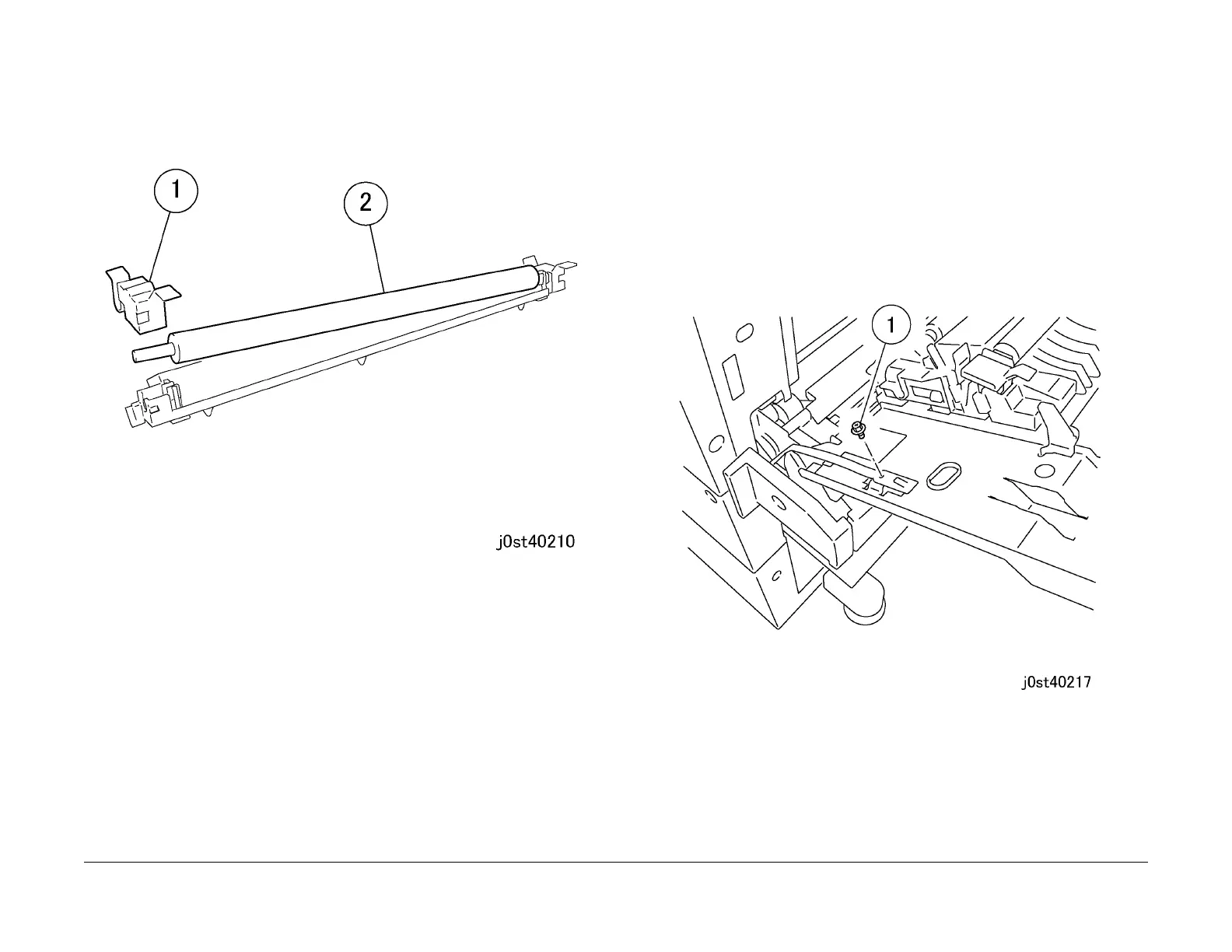

Figure 2 Removing the BTR Roll (j0st40210)
Replacement
1. To install, carry out the removal steps in reverse order.
REP 2.6.2 L/H Upper Cover Unit
Parts List on PL 2.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power
applied to the machine.
1. Open the L/H Upper Cover.
2. Disconnect the Duplex Unit Cable.
3. Remove the screw while holding the L/H Upper Cover. (Figure 1)
1. Remove the screw.
Figure 1 Removing the screw (j0st40217)
4. Remove the L/H Upper Cover Unit. (Figure 2)
1. Open the L/H Upper Cover Unit until it becomes horizontal.
2. Lift up the unit and remove it.

Xerox WorkCentre 5230 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Standard input capacity	500 sheets
Internal memory	No MB
Type	Digital copier
