REP 7.2.1 MPT Feed Roll/Retard Pad
Parts List on PL 7.2
Removal
NOTE: When replacing the MPT Feed Roll/Retard Pad, enter the Diag. mode and clear the
counter for MPT Feed. 741/516]
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
To prevent data loss when the power is turned off, please note the following.
[FAX Models]
Check that the “Stored Documents” lamp is not on, and press the Job Status] button to ensure
that there are no jobs in progress.
[Printer Models]
Check that “Ready to Print/Send” is displayed on the Control Panel display.
NOTE: The MPT Feed Roll and MPT Retard Pad must both be replaced at the same time.
1. Remove the MPT Assembly. (REP 7.1.1)
2. Remove the plate. (Figure 1)
1.Remove the screws (x2).
2.Remove the plate.

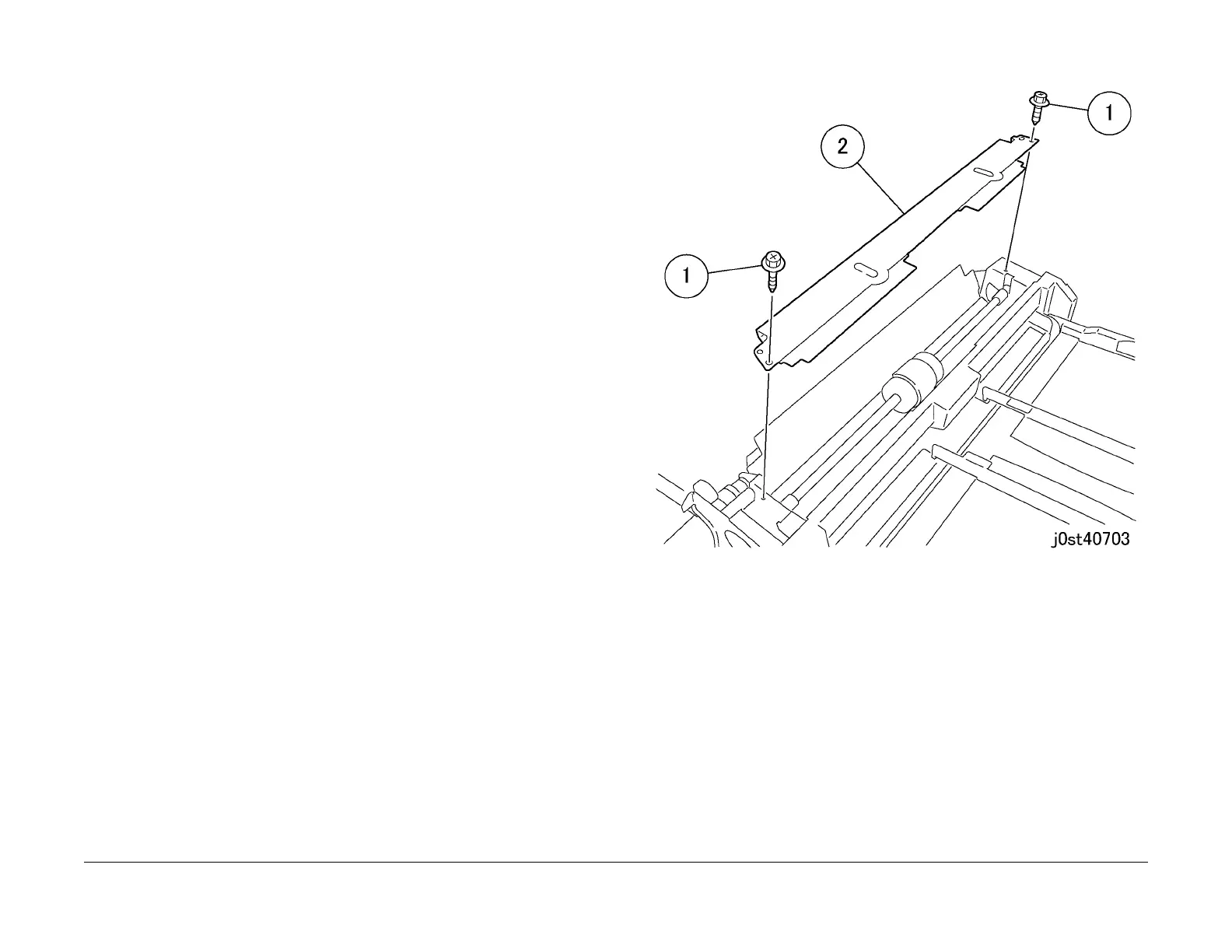

Figure 1 Removing the plate (j0st40703)
3. Remove the MPT Feed Roll. (Figure 2)
1.Remove the ends of the roll and slide them out.
2.Remove the ends of the roll and slide them out.
3.Slide the MPT Feed Roll to the front and remove it.
To Next Page
