Xerox WorkCentre 5230 User Manual

February, 2008
5-39
WorkCentre 5225, 5230
PL 11.3
Parts List
Launch Version

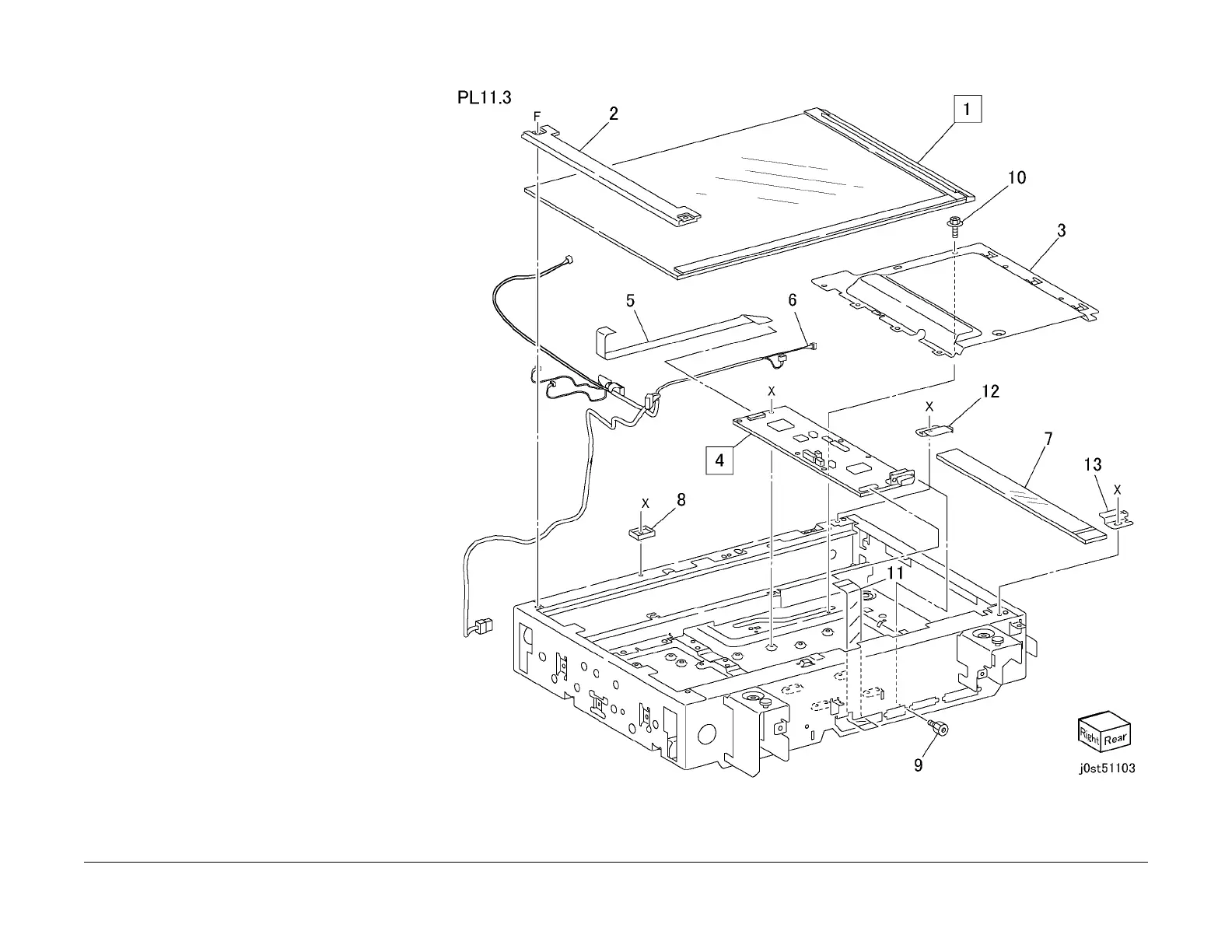

PL 11.3 Platen Glass
Item Part Description
1 090K93210 Platen Glass (REP 11.3.1)
2 815E36330 Right Side Plate
3 – IPS Cover (P/O PL 11.1 Item 10)
4 960K32481 IIT/IPS PWB (REP 11.3.2)
5 117E27750 CCD Flat Cable
6 – Wire Harness (P/O PL 11.1 Item
10)
7 090K93011 Left Side Plate
8 – Platen Glass Plate (P/O PL 11.1
Item 10)
9 – Lock Screw (P/O PL 11.1 Item 10)
10 – Screw (Not Spared)
11 – ESS Flat Cable (Not Spared)
12 – Support Glass (P/O PL 11.1 Item
10)
13 – Support Glass (P/O PL 11.1 Item
10)
