Image Quality
IQS11 Skips And Smears
Specification
Procedure
Use Side B of the Standard Test Pattern.
[Reduction]
Except for the first 2 mm from the lead edge of the copy, 1.8
ladder chart must be completely resolved.
[100% /Enlargement]
Except for the first 2 mm from the lead edge of the copy, 2.5
ladder chart must be completely resolved (Figure 1).

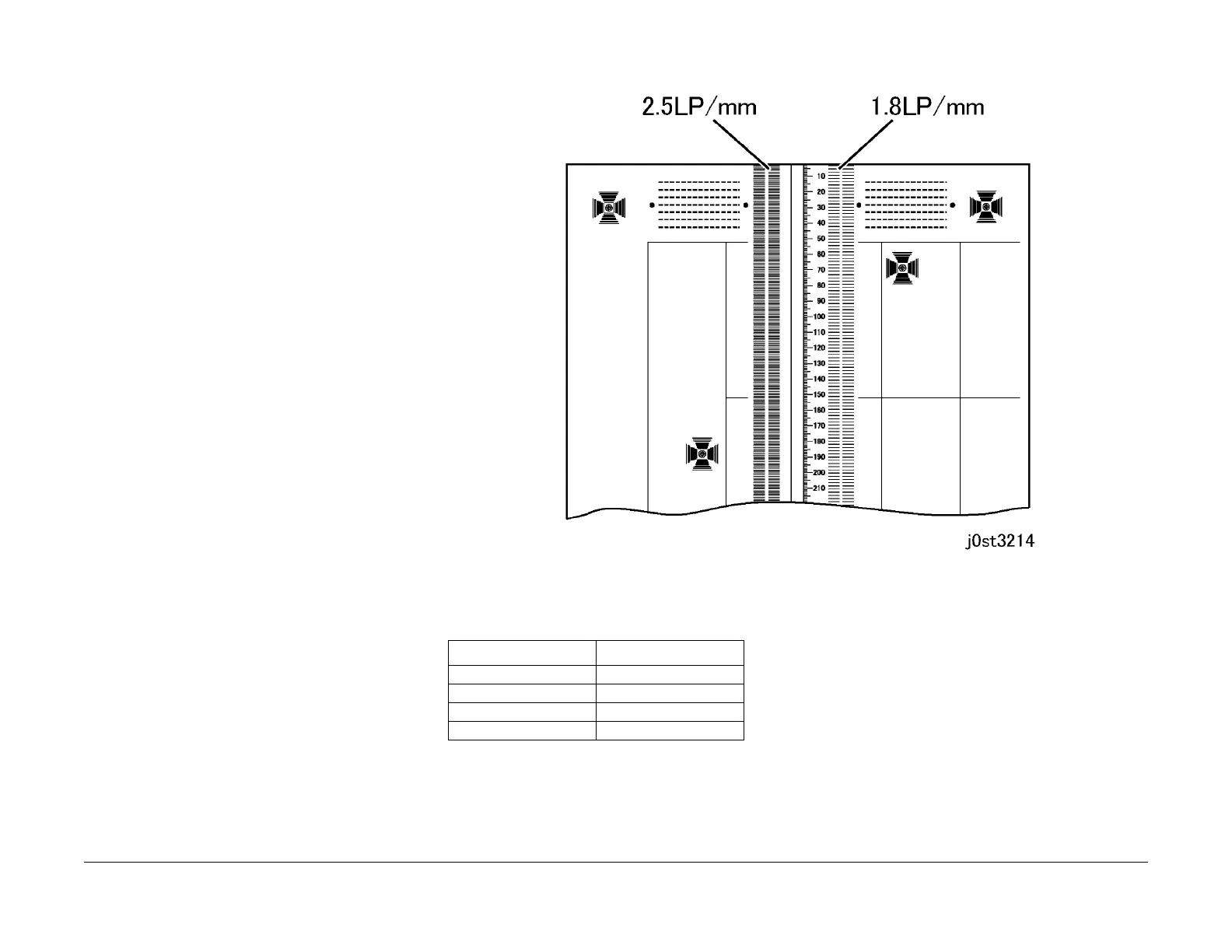

Figure 1 Skips and Smears(j0st3214)
Table 1 Skips and Smears Specifications
Magnification(%) Ladder LP/mm
70 1.8
100 2.5
141 2.5
200 2.5

Xerox WorkCentre 5230 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Standard input capacity	500 sheets
Internal memory	No MB
Type	Digital copier
