February, 2008
4-78
WorkCentre 5225, 5230
REP 11.6.2
Launch Version
Repairs and Adjustments
REP 11.6.2 Lamp Wire Harness
Parts List on PL 11.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the DADF. (REP 15.1.1)
2. Remove the Platen Glass. (REP 11.1.1)

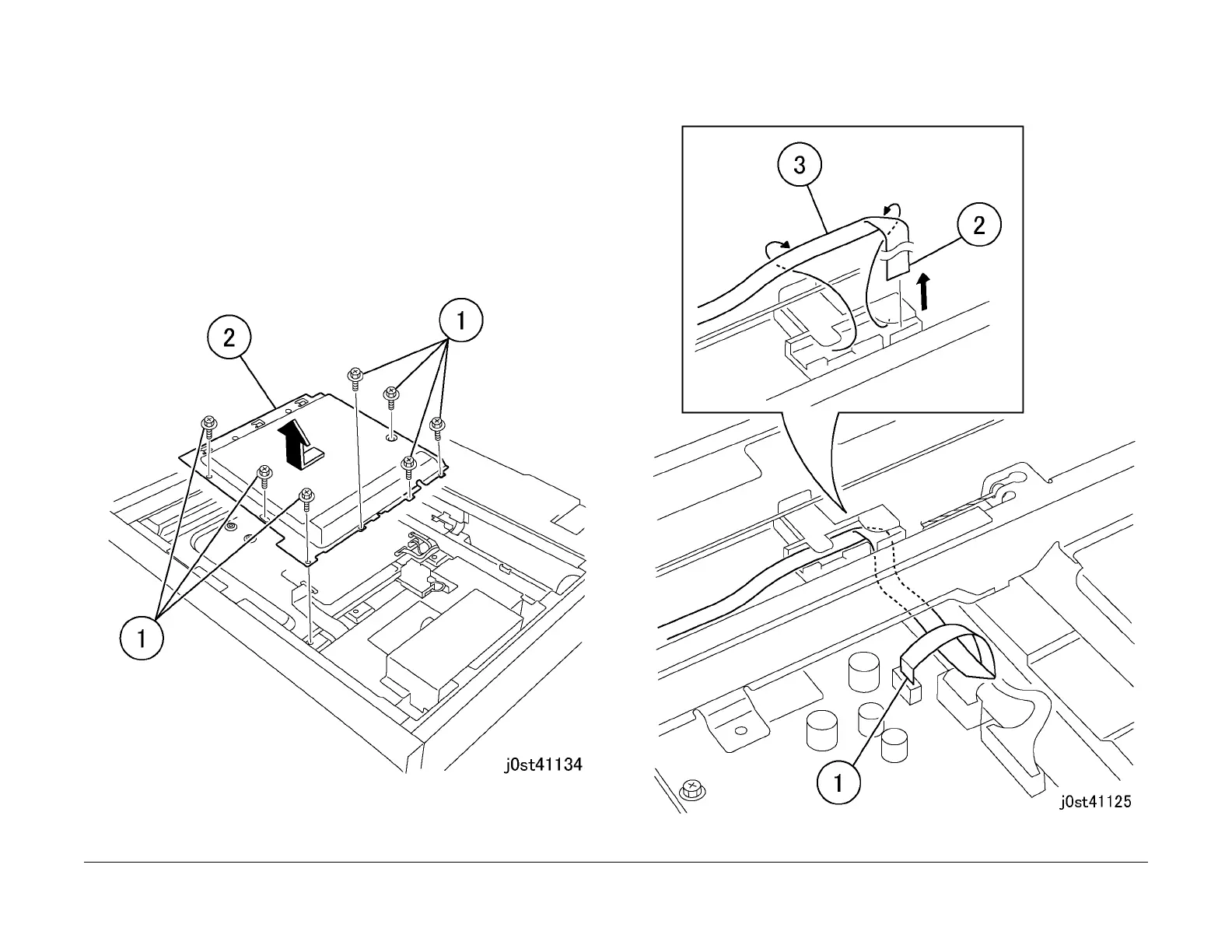

3. Remove the IPS Cover. (Figure 1)
1. Remove the screws (x7).
2. Remove the IPS Cover.
Figure 1 Removing the IPS Cover (j0st41134)
4. Disconnect the connector of the Lamp Wire Harness. (Figure 2)
1. Disconnect the connector.
2. Pull the connector out of the hole.
3. Release the connector from the hook.
Figure 2 Disconnecting the connector (j0st41125)
To Next Page
