Xerox WorkCentre 5230 User Manual

February, 2008
4-176
WorkCentre 5225, 5230
REP 22.3.1
Launch Version
Repairs and Adjustments

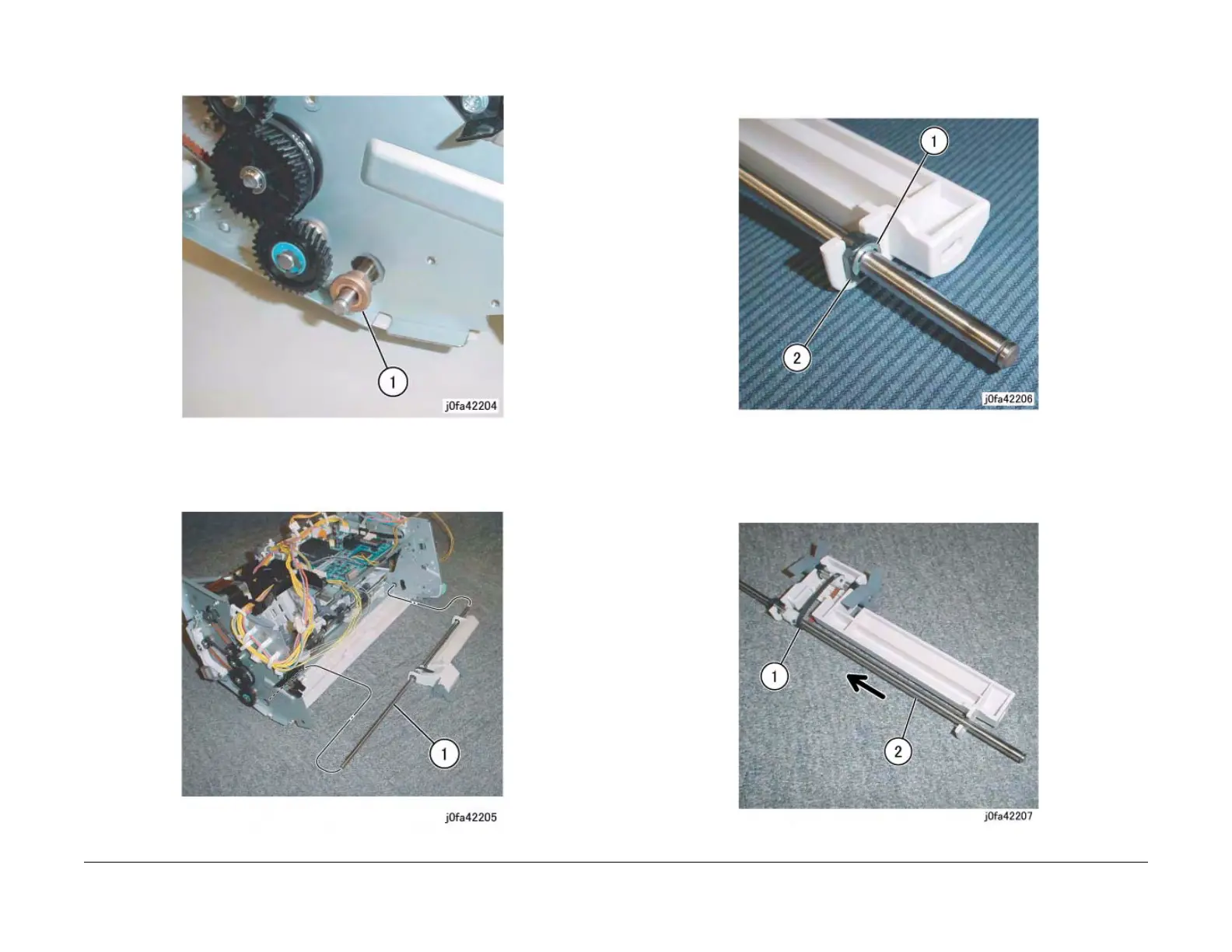

6. Remove the rear Bearing. (Figure 4)
(1)Remove Bearing.
Figure 4 Removing the Bearing (j0fa42204)
7. Remove the Paddle Link Assembly. (Figure 5)
(1)Remove Paddle Link Assembly.
Figure 5 Removing the Paddle Link Assembly (j0fa42205)
8. Remove the Bearing. (Figure 6)
(1)Remove E-Clip.
(2)Remove Bearing.
Figure 6 Removing Bearing (0fa42206)
9. Remove the Shaft Assembly. (Figure 7)
(1)Remove Paddle Belt from Pulley.
(2)Remove Shaft Assembly in the direction of the arrow.
Figure 7 Removing Shaft Assembly (j0fa42207)

Xerox WorkCentre 5230 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Standard input capacity	500 sheets
Internal memory	No MB
Type	Digital copier
