February, 2008
4-127
WorkCentre 5225, 5230
REP 15.8.1
Repairs and Adjustments
Launch Version

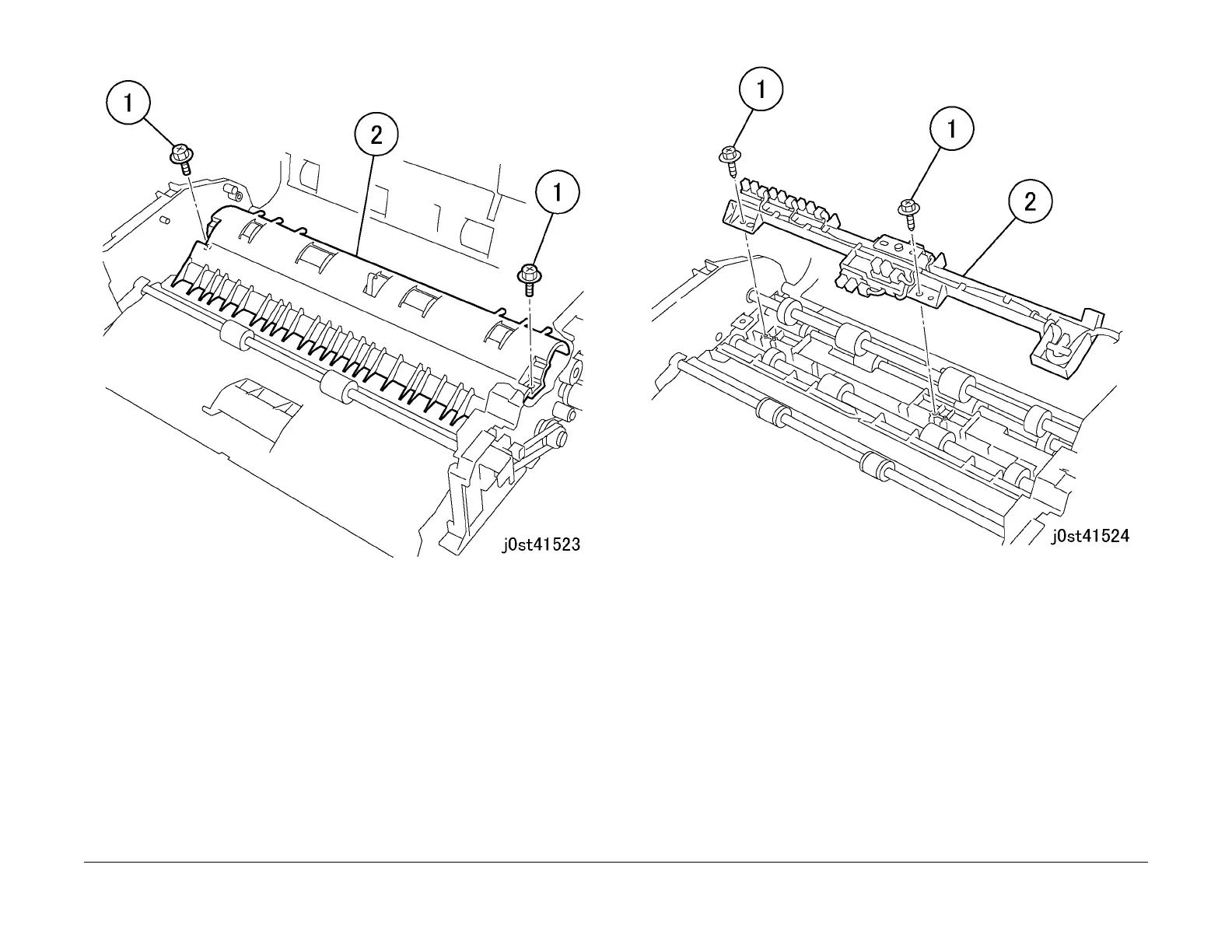

Figure 3 Removing the Feed Guide
10. Remove the sensor holder. (Figure 4)
1. Remove the Tapping Screws (2).
2. Remove the sensor holder.
Figure 4 Removing the sensor holder
11. Loosen the belt tension. (Figure 5)
1. Remove the spring.
2. Loosen the screw.
3. Loosen the belt tension.
4. Remove the E-Clip.
5. Remove the gear.

Xerox WorkCentre 5230 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Standard input capacity	500 sheets
Internal memory	No MB
Type	Digital copier
