Xerox WorkCentre 5230 User Manual

February, 2008
4-158
WorkCentre 5225, 5230
REP 16.2.23, REP 16.2.24
Launch Version
Repairs and Adjustments
REP 16.2.23 Eject Motor
Parts List on PL 23.11
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Undock the Finisher. (REP 16.2.1)
2. Remove the Booklet Maker. (REP 16.3.2)
3. Remove the Rear Upper Cover. (REP 16.2.3)
4. Remove the Eject Motor Assembly. (REP 16.2.19)
5. Remove the Eject Motor.
a. Remove the screws (2)
b. Remove the Eject motor
Replacement
1. To install, carry out the removal steps in reverse order.
REP 16.2.24 Front/Rear Tamper Motor
Parts List on PL 23.12
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the Compiler Tray. (REP 16.2.13)
2. Turn the Compiler Tray over on a work surface.
3. Remove the Tamper Motor. (Figure 1)
a. Release the wires from the wire guide.
b. Remove the screw (1) and remove the wire guide.
c. Disconnect the Tamper Motor connector.
NOTE: The Rear Tamper Motor connector has already been disconnected.
d. Remove the screws (2).
e. Remove the Tamper Motor.

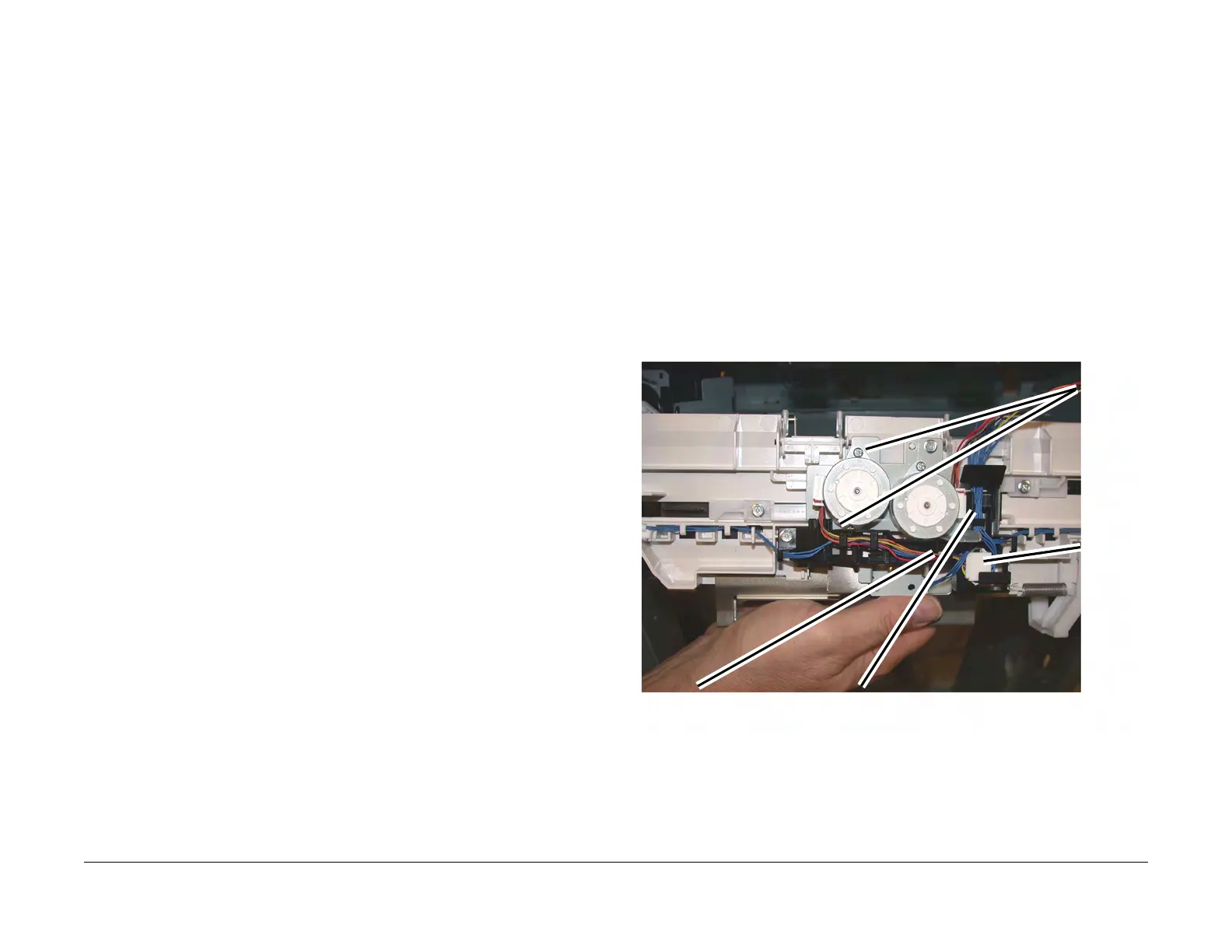

Figure 1 Removing the Tamper Motor (j0st41728)
Replacement
Replace in reverse order of removal.
1
Remove wires from guide
2
Remove the screw (1)
3
Discon-
nect the
connec-
tor
4
Remove
the
screws
(2)

Xerox WorkCentre 5230 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Standard input capacity	500 sheets
Internal memory	No MB
Type	Digital copier
