REP 22.9.6, REP 22.10.1
Launch Version
Repairs and Adjustments
Replacement
1. Reverse the removal procedure for replacement.
2. Install and align the Eject Belts with marks on the Pulleys. (Figure 4)

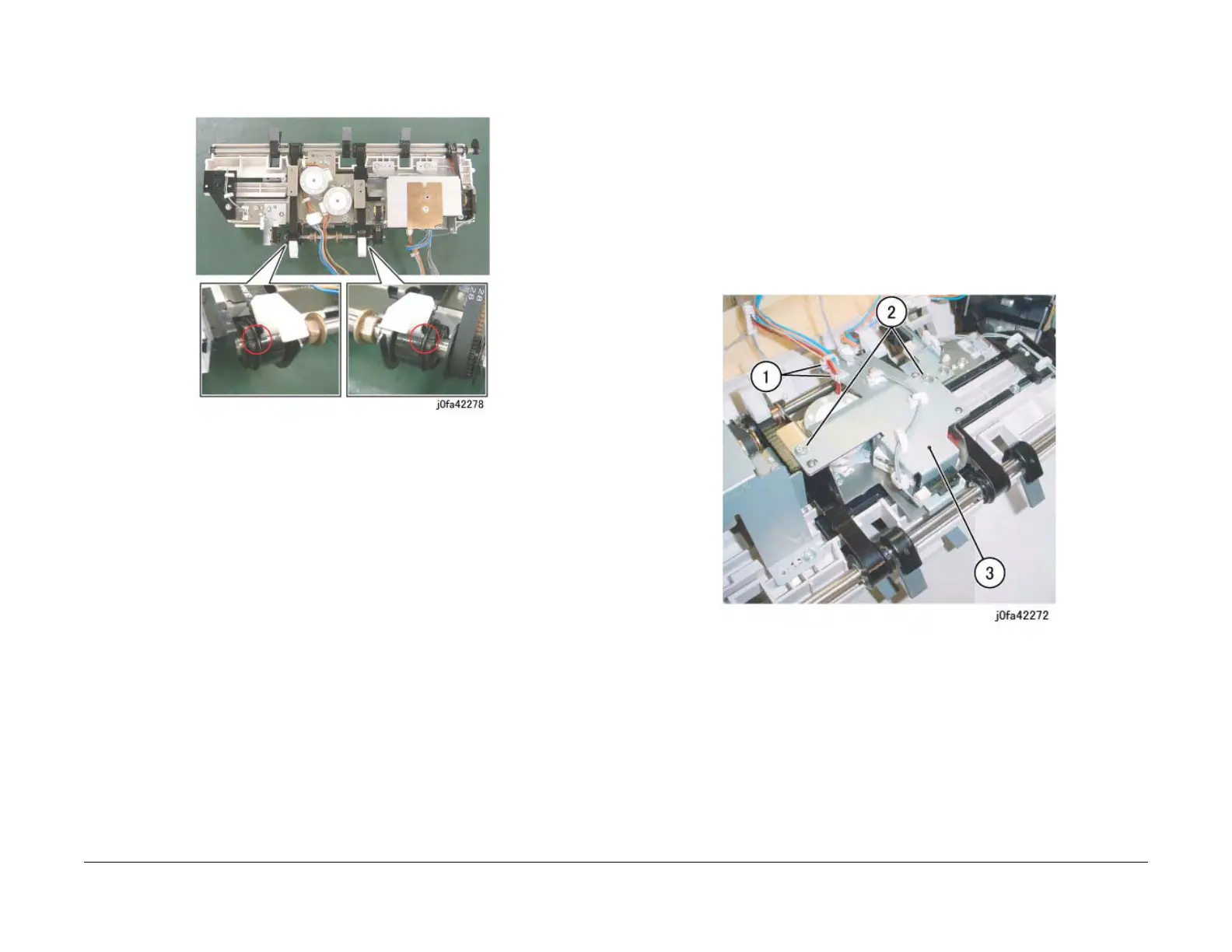

Figure 4 Installing the Eject Belts (j0fa42278)
REP 22.10.1 Front/Rear Tamper Motor Assembly
Parts List on PL 22.10
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the A-Finisher from the machine. (REP 22.1)
2. Remove the Compile Assembly. (REP 22.9.1)
3. Remove the Bracket Assembly. (Figure 1)
(1)Release Clamps (2) and remove the wires.
(2)Remove Screws (2).
(3)Remove Bracket Assembly.
Figure 1 Removing the Bracket Assembly (j0fa42272)
To Next Page
