Xerox WorkCentre 5230 User Manual

February, 2008
5-76
WorkCentre 5225, 5230
PL 18.7
Launch Version
Parts List

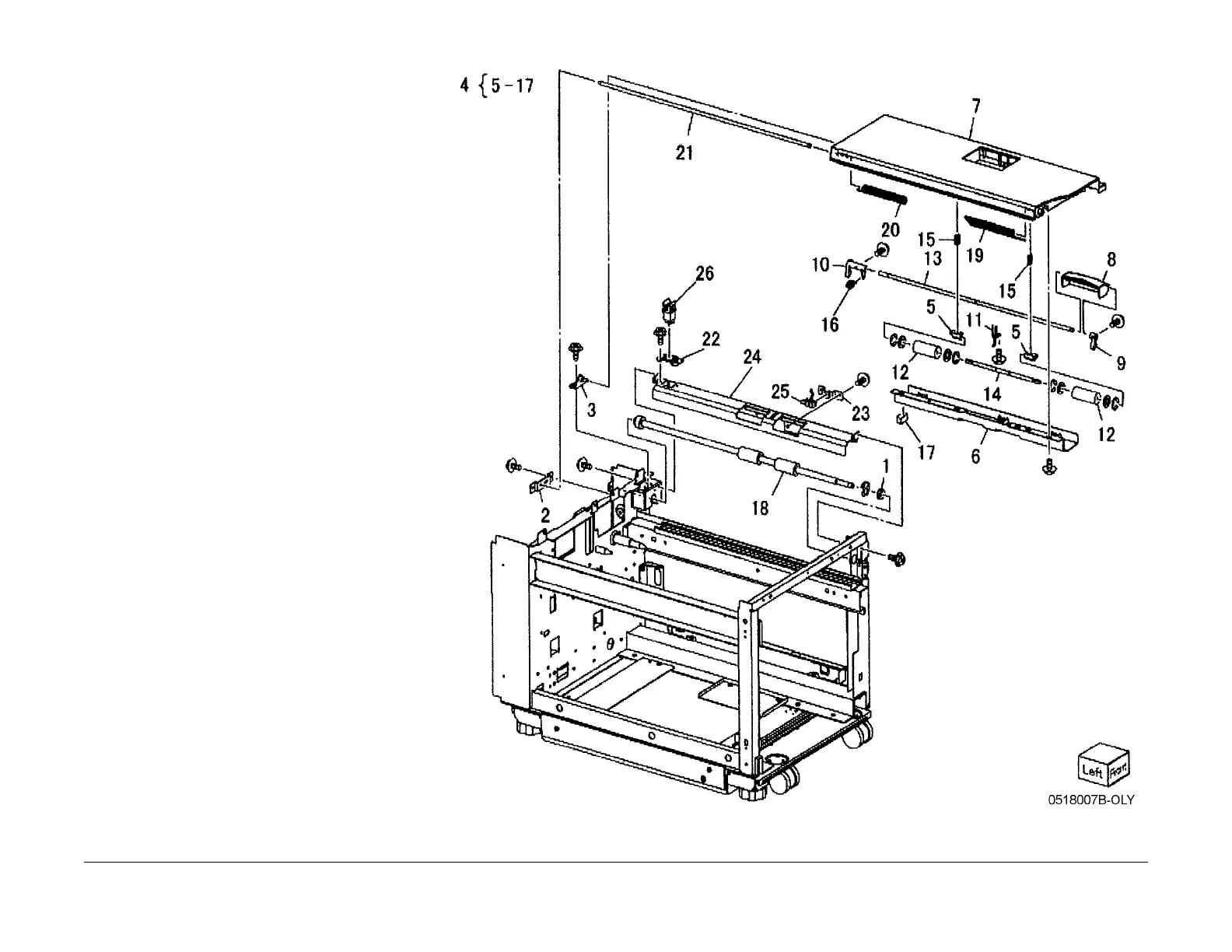

PL 18.7 HCF Top Cover Unit
Item Part Description
1 013E17100 Bearing
2 – Bracket (Not Spared)
3 – Pivot Bracket (Not Spared)
4 – Top Cover Assembly (Not Spared)
5 – Bearing (P/O PL 18.7 Item 4)
6 – Upper Chute (P/O PL 18.7 Item 4)
7 – Top Cover (P/O PL 18.7 Item 4)
8 – Knob (P/O PL 18.7 Item 4)
9 – Latch (P/O PL 18.7 Item 4)
10 – Latch (P/O PL 18.7 Item 4)
11 – Spring (P/O PL 18.7 Item 4)
12 059E01430 Pinch Roller
13 – Shaft (P/O PL 18.7 Item 4)
14 – Shaft (P/O PL 18.7 Item 4)
15 – Spring (P/O PL 18.7 Item 4)
16 – Spring (P/O PL 18.7 Item 4)
17 – Gasket (P/O PL 18.7 Item 4)
18 059K36260 Takeaway Roll (REP 7.3.10)
19 – Spring (Left) (P/O PL 18.1 Item 16)
20 – Spring (Right) (P/O PL 18.1 Item
16)
21 – Pivot Shaft (P/O PL 18.1 Item 16)
22 – Bracket (P/O PL 18.1 Item 16)
23 – Bracket (P/O PL 18.1 Item 16)
24 – Lower Chute (P/O PL 18.1 Item 16)
25 130K88150 Takeaway Sensor
26 110E94770 Top Cover Interlock Switch
