5-57
WorkCentre 5225, 5230
PL 13.8
Parts List
Launch Version

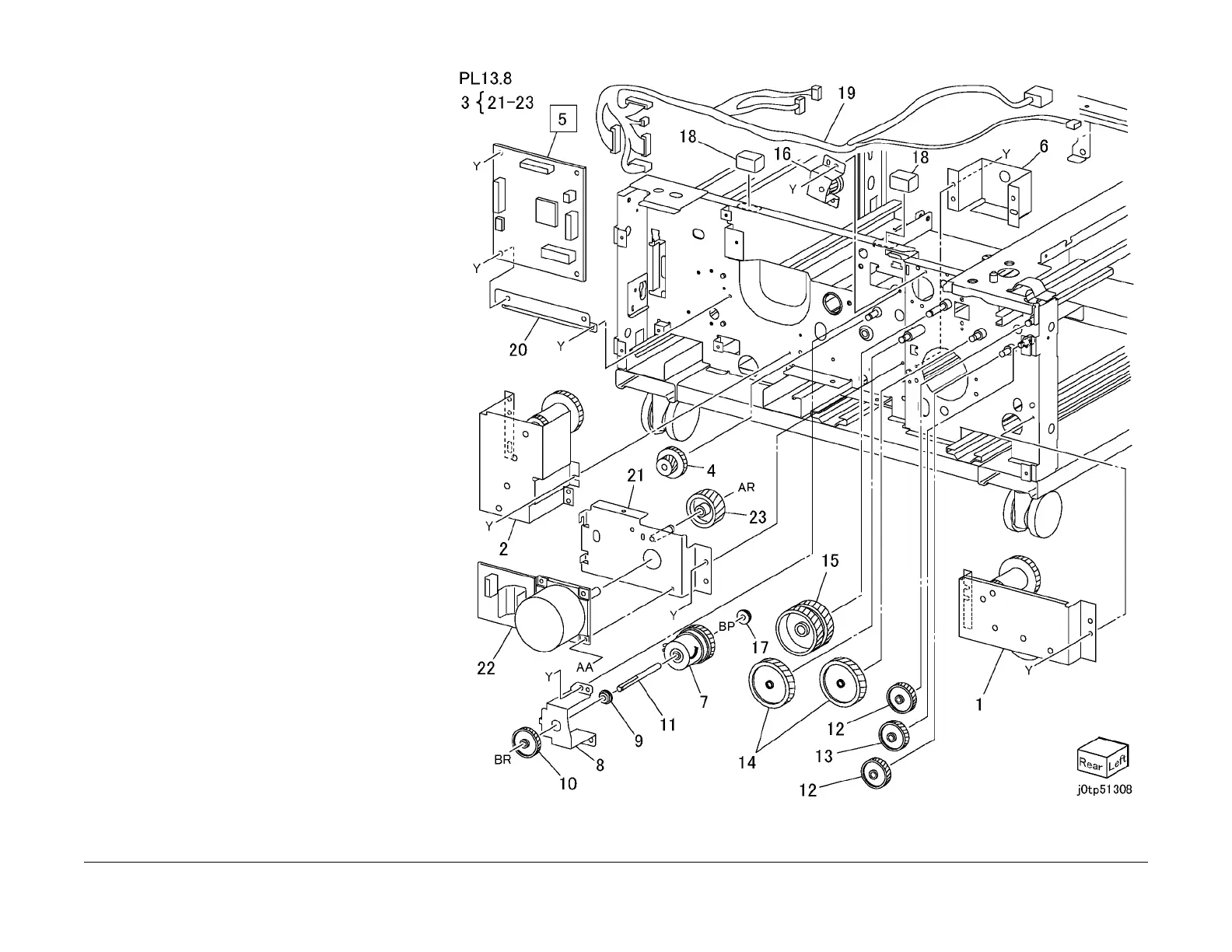

PL 13.8 Electrical-Tandem Tray
Item Part Description
1 – Gear Assembly (Not Spared)
2 – Gear Assembly (Not Spared)
3 007K93801 Tandem Tray Module Takeaway
Motor Assembly
4 – Gear (22T/40T) (Not Spared)
5 960K16185 Tandem Tray Module PWB
6 – Bracket (Not Spared)
7 121K31530 Tandem Tray Module Takeaway
Roll Clutch
8 – Bracket (Not Spared)
9 – Bearing (Not Spared)
10 – Gear (38T) (Not Spared)
11 – Shaft (Not Spared)
12 – Gear (37T) (Not Spared)
13 – Gear (32T) (Not Spared)
14 – Gear (60T) (Not Spared)
15 – Gear (60T) (Not Spared)
16 – Bracket Assembly (Not Spared)
17 – Bearing (Not Spared)
18 – Gasket (Not Spared)
19 – Wire Harness (Not Spared)
20 – Bracket (Not Spared)
21 – Bracket (P/O PL 13.8 Item 3)
22 – Tandem Tray Module Takeaway
Motor (P/O PL 13.8 Item 3)
23 – Gear (36T/72T) (P/O PL 13.8 Item
3)
