February, 2008
4-155
WorkCentre 5225, 5230
REP 16.2.15, REP 16.2.16
Repairs and Adjustments
Launch Version
REP 16.2.15 Stacker Elevator Motor
Parts List on PL 23.7
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Switch off the power and disconnect the power cord.
2. Remove the Finisher Rear Upper Cover. (REP 16.2.3)
3. Disconnect P/J8988 on the Finisher Control PWB.
4. Release the wires from the cable clamps.
5. Remove the wires from the wire guide, remove the screws (2) and move the wire guide to
one side.
6. Remove the screws (2) from the motor mount using a 5.5 mm combination wrench.
7. Remove the Stacker Elevator Motor.
Replacement
Install in reverse order of removal procedure.
REP 16.2.16 Stacker Tray
Parts List on PL 23.7
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the following:
a. Booklet Maker Assembly (if installed). (REP 22.4.2)
b. Front Cover Assembly. (REP 16.2.2)
c. Rear Upper Cover. (REP 16.2.3)
2. Remove the Stacker Tray. (Figure 1)
a. Remove the Screws (4).
b. Remove the Stacker Tray.

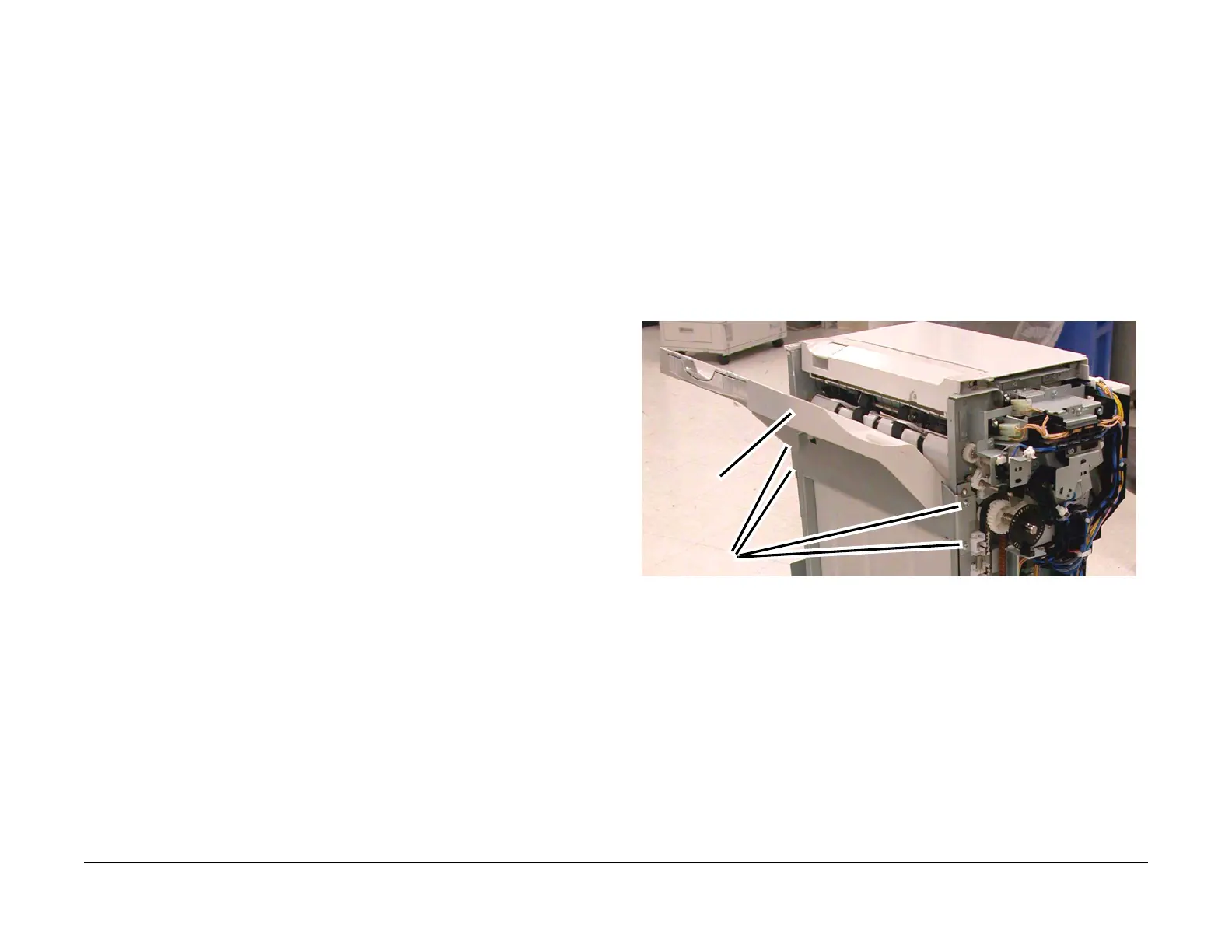

Figure 1 Removing the Stacker Tray (j0st41693)
Replacement
Reverse the removal procedure for replacement.
Screws
Stacker Tray
To Next Page
