February, 2008
4-38
WorkCentre 5225, 5230
REP 7.3.2, REP 7.3.3
Launch Version
Repairs and Adjustments
3. Slide the HCF Feeder toward you off its rail to remove it from the HCF.
Replacement
1. Position the HCF Feeder’s bottom rail-following feet (2) onto the internal HCF rail.
2. Slide the HCF Feeder back into the HCF until it seats.
CAUTION
Do not over tighten the two HCF Feeder screws.
3. Reinstall the two securing screws and tighten until snug.
REP 7.3.3 HCF Un-docking and Docking
Parts List on PL 18.8
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Unplug the HCF Power Cable connected to the left rear of the copier/printer.
2. Grasping the HCF by its upper corners, pull the HCF away from the copier/printer to
expose the HCF Docking Base. (Figure 1)

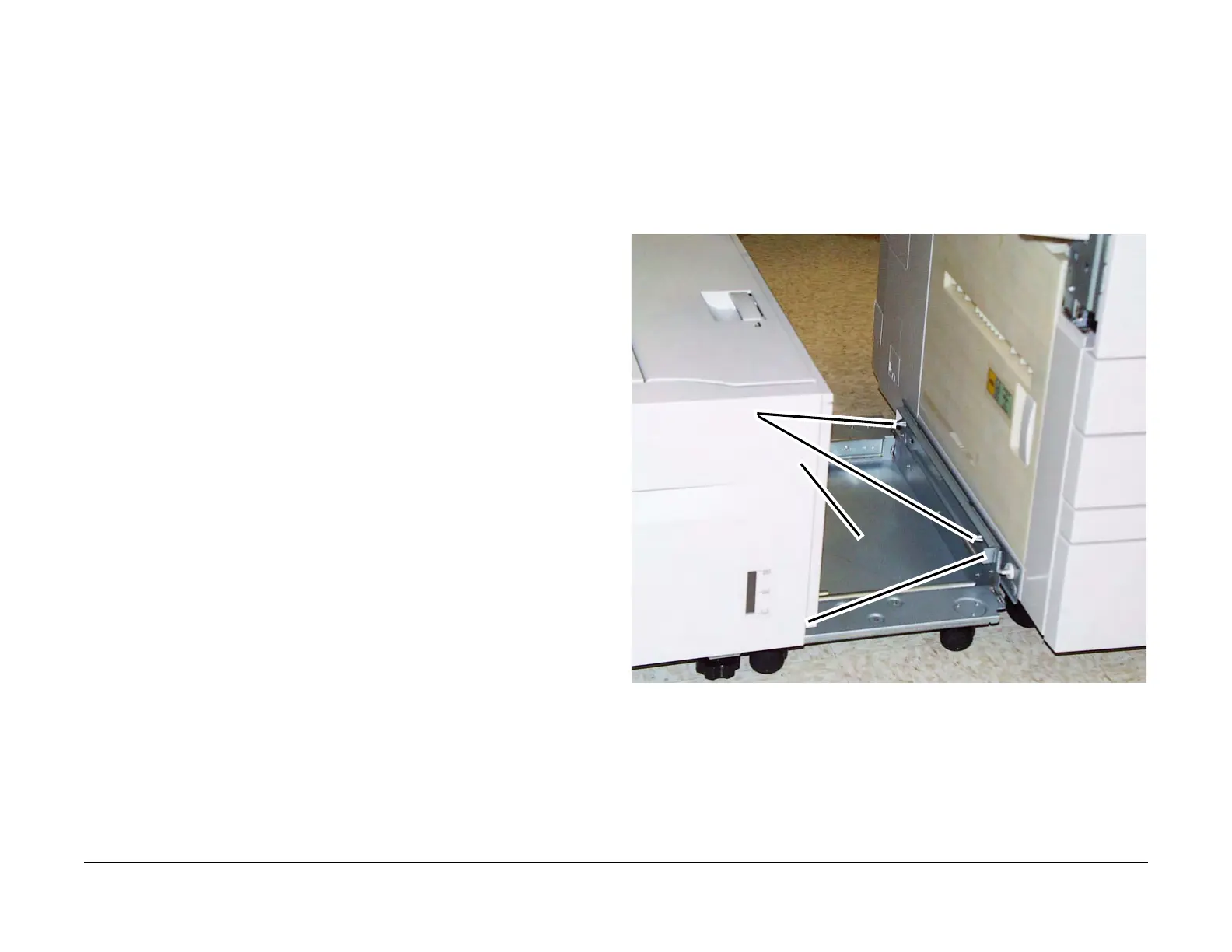

Figure 1 Exposing the docking base
3. Release the Docking Latch Spring Lever on the right side of the Docking Base.
4. Pull the HCF away from the copier/printer to un-dock it from the copier/printer.
Replacement
1. Push the HCF toward the two Docking Points on the left side of the printer.
2. Align the two holes in the HCF Docking Base with the two Docking Points on the printer/
copier.
Docking Points
HCF Docking Base
Docking Latch Spring Lever
To Next Page
