WorkCentre 5225, 5230
PL 15.8
Parts List
Launch Version

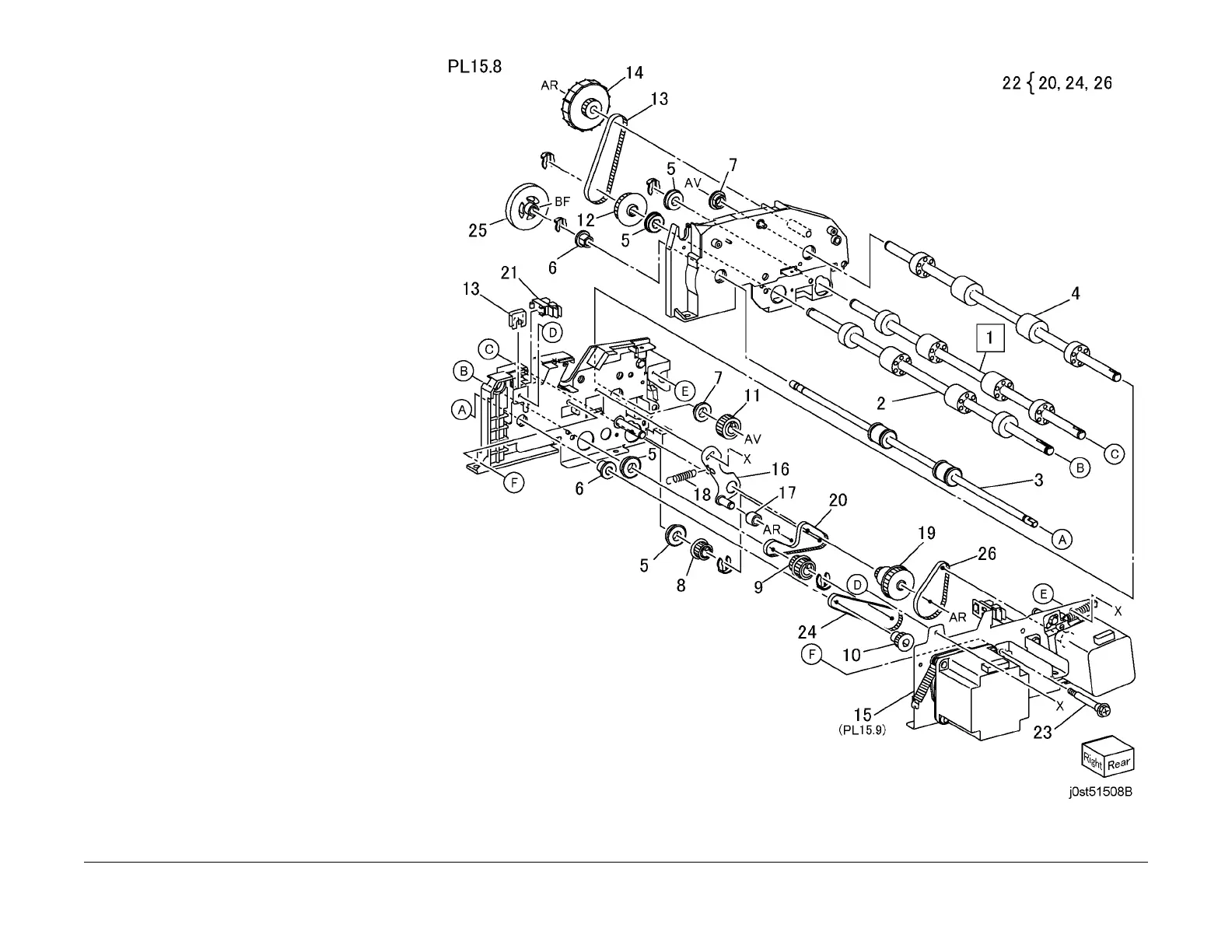

PL 15.8 DADF Feeder-Roll
Item Part Description
1 – Registration Roll (P/O PL 15.4 Item
5) (REP 15.8.1)
2 – Out Roll (P/O PL 15.4 Item 5)
3 – Exit Roll (P/O PL 15.4 Item 5)
4 – Takeaway Roll (P/O PL 15.4 Item 5)
5 – Ball Bearing (P/O PL 15.4 Item 5)
6 – Bearing (10mm) (P/O PL 15.4 Item
5)
7 – Bearing (6mm) (P/O PL 15.4 Item
5)
8 – Pulley (Registration) (P/O PL 15.4
Item 5)
9 – Pulley (Out) (P/O PL 15.4 Item 5)
10 – Pulley (Exit) (P/O PL 15.4 Item 5)
11 – Gear (Takeaway) (P/O PL 15.4 Item
5)
12 – Pulley (Out) (P/O PL 15.4 Item 5)
13 – Belt (P/O PL 15.4 Item 5)
14 – Handle Pulley (P/O PL 15.4 Item 5)
15 – Motor Unit Assembly (P/O PL 15.1
Item 3)
16 – Tension Bracket (P/O PL 15.4 Item
5)
17 – Tension Roll (P/O PL 15.4 Item 5)
18 – Spring (P/O PL 15.4 Item 5)
19 – Pulley (P/O PL 15.4 Item 5)
20 – Belt (P/O PL 15.8 Item 22)
21 930W00111 DADF Document Set Sensor
22 – KL-Clip (P/O PL 15.4 Item 5)
23 – Guide (P/O PL 15.2 Item 2)
24 – Belt (P/O PL 15.8 Item 22)
25 – Disk (P/O PL 15.2 Item 2)
26 – Belt (P/O PL 15.8 Item 22)
27 – Stud Screw (P/O PL 15.2 Item 2)
28 604K47010 Belt Kit
