WorkCentre 5225, 5230
PL 6.5
Parts List
Launch Version

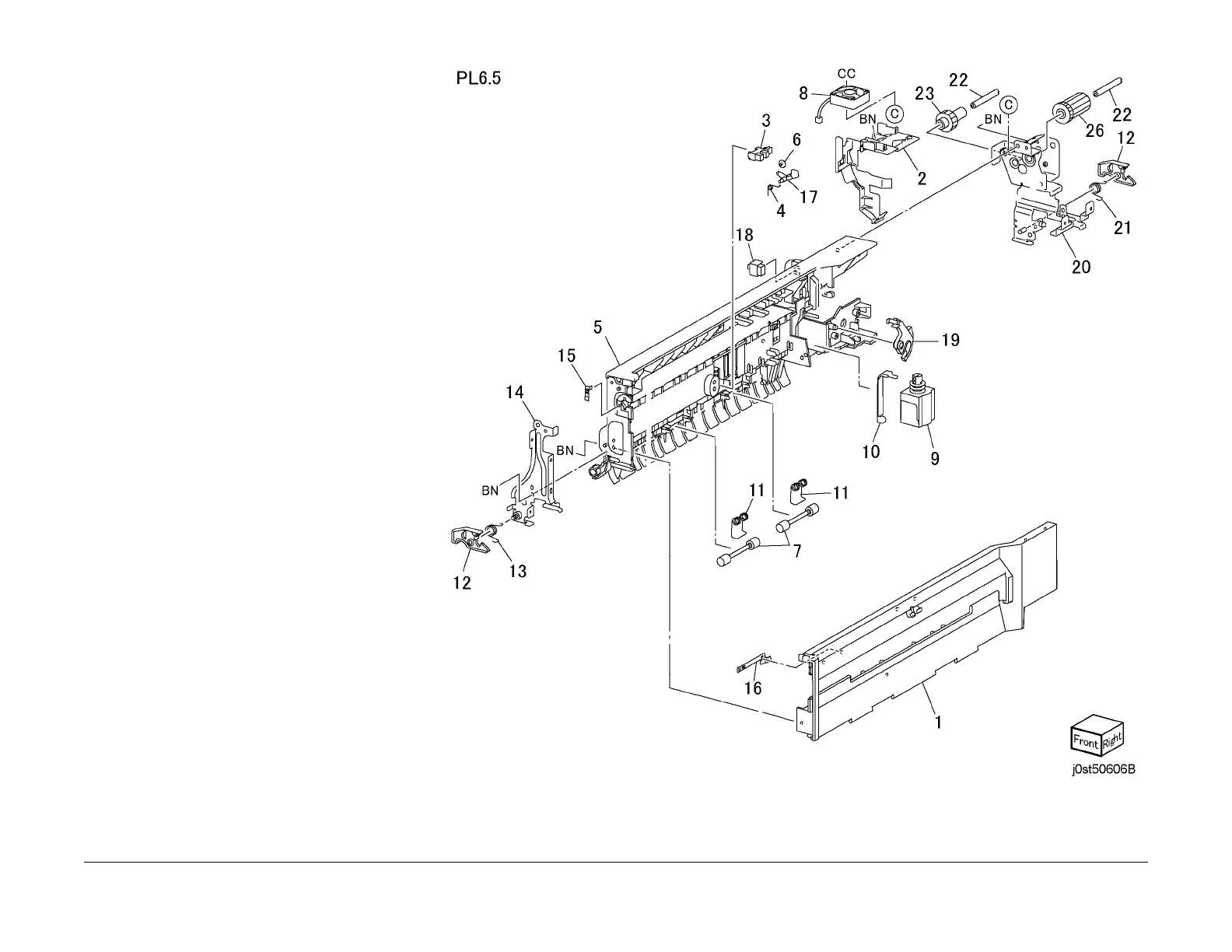

PL 6.5 Tray Guide Assembly
Item Part Description
1 – Tray Guide (P/O PL 6.1 Item 5)
2 – Cover (P/O PL 6.1 Item 5)
3 930W00113 Exit 2 Sensor (P/O PL 6.1 Item 5)
4 809E37332 Spring Actuator
5 – Lower Chute (P/O PL 6.1 Item 5)
6 059E98780 Actuator
7 604K20400 Roller Kit (2/Kit)
8 – Exit Fan (P/O PL 6.1 Item 5)
9 121K41700 Exit 2 Gate Solenoid
10 – Exit Gate Link (P/O PL 6.1 Item 5)
11 604K20430 Spring Kit (2/Kit)
12 003E60171 Latch
13 809E50210 Spring
14 – Front Plate (P/O PL 6.1 Item 5)
15 – Earth Plate (P/O PL 6.1 Item 5)
16 – Earth Plate (P/O Pl6.1 Item 5)
17 120E22451 Actuator
18 – Exit 2 Interlock Switch (P/O PL 6.1
Item 5)
19 – Offset Gear (P/O PL 6.1 Item 5)
20 – Rear Plate (P/O PL 6.1 Item 5)
21 – Spring (P/O PL 6.1 Item 5)
22 – Shaft (P/O PL 6.1 Item 5)
23 – Gear (19T/44T) (P/O PL 6.1 Item 5)
24 – Gear (40T) (P/O PL 6.1 Item 5)
