Xerox WorkCentre 5230 User Manual

February, 2008
4-142
WorkCentre 5225, 5230
REP 16.2.11
Launch Version
Repairs and Adjustments
3. Remove the Wire Guide. (Figure 2)
a. Pull out the Cable Clamps (3), and remove the wires from the Wire Guide.
b. Remove the Screws (2).
c. Remove the Wire Guide.

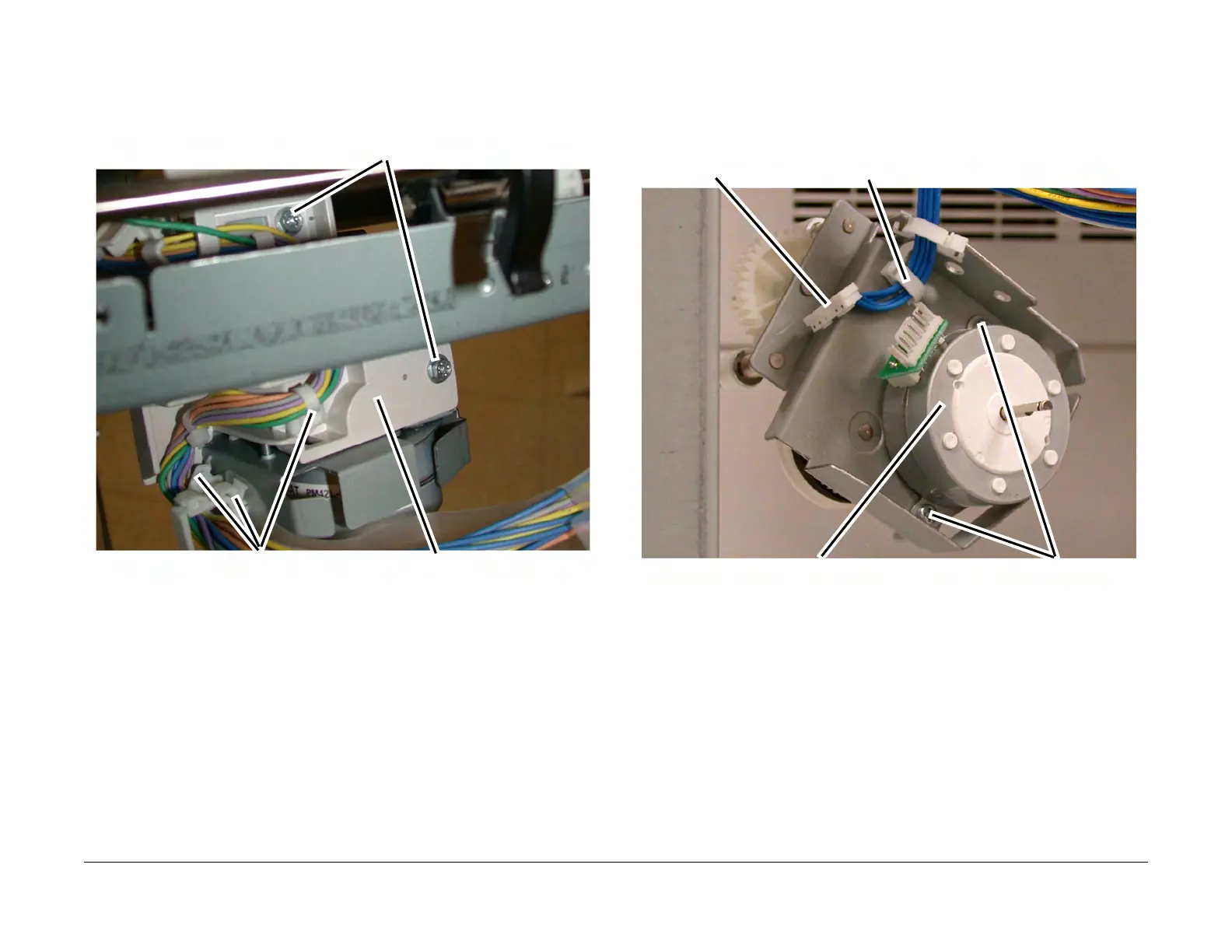

Figure 2 Removing the Wire Guide (j0st41698)
4. Remove the Stapler Move Motor. (Figure 3)
a. Remove the wires from the Cable Clamp.
b. Disconnect the Connector.
c. Remove the Screws (2).
d. Remove the Stapler Move Motor.
Figure 3 Removing the Stapler Move Motor (j0st41696)
Replacement
1. Reverse the removal procedure for replacement.
Cable Clamps
Screws
Wire Guide
Cable Clamp
Connector
Screws
Stapler Move Motor

Xerox WorkCentre 5230 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Standard input capacity	500 sheets
Internal memory	No MB
Type	Digital copier
