February, 2008
4-194
WorkCentre 5225, 5230
REP 22.6.1
Launch Version
Repairs and Adjustments
REP 22.6.1 ENT Roll Assembly
Parts List on PL 22.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the A-Finisher from the machine. (REP 22.1)
2. Remove the Inner Front Cover. (PL 22.1)
3. Remove the Rear Cover. (PL 22.1)
4. Remove the Left Cover. (PL 22.2)
5. Remove the Upper Frame Section. (Figure 1)
(1)Remove Screw and Bracket.
(2)Remove Screws (2).
(3)Remove Screw and Bracket.
(4)Remove Screws (2).
(5)Remove the Upper Frame Section

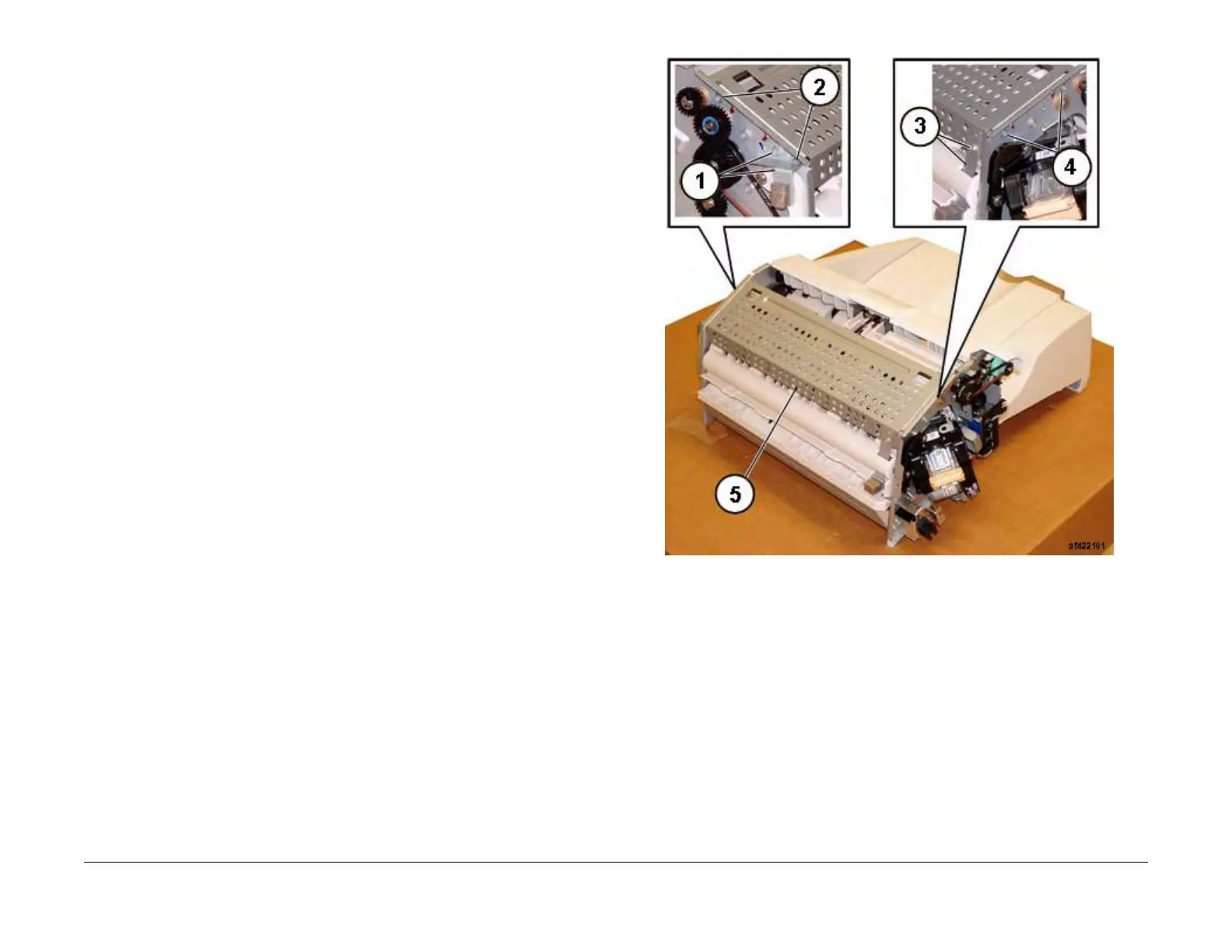

Figure 1 Removing the Upper Frame Section (af422101)
To Next Page
