4-204
WorkCentre 5225, 5230
REP 22.8.4, REP 22.9.1
Launch Version
Repairs and Adjustments
REP 22.8.4 Stacker Stack Sensor
Parts List on PL 22.8
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the A-Finisher from the machine. (REP 22.1)
2. Remove the Rear Cover. (PL 22.1)
3. Turn over the A-Finisher.
4. Remove the Tray Cover. (PL 22.2)
5. Remove the Stacker Stack Sensor Assembly. (Figure 1)
NOTE: The Stacker Stack Sensor Assembly has 2 Sensors.
(1)Release the wires from the Clamp.
(2)Remove Screw.
(3)Remove Stacker Stack Sensor Assembly.
(4)Disconnect appropriate Sensor Connector, and remove Sensor from Bracket.

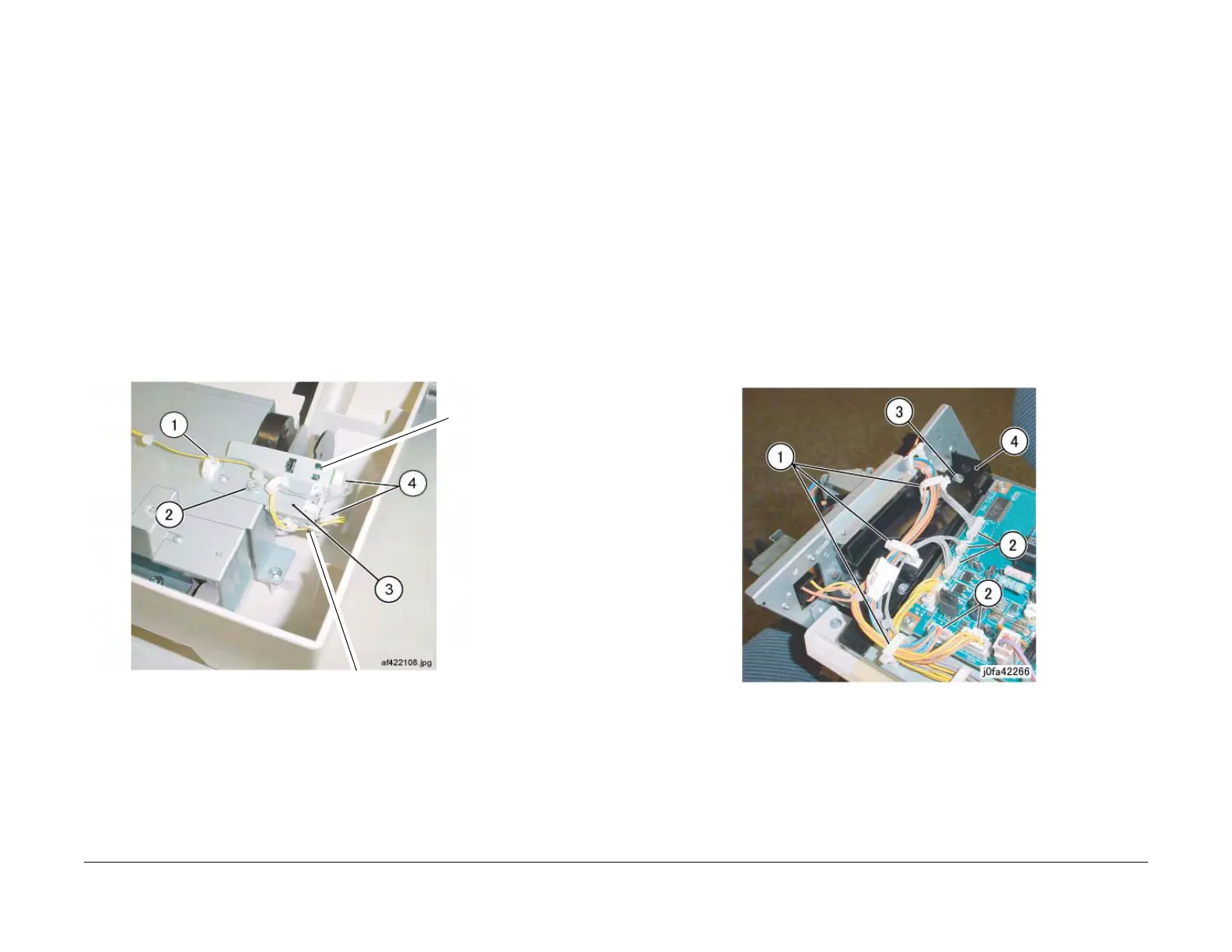

Figure 1 Removing the Stacker Stack Sensor Assembly (af422108)
Replacement
1. Reverse the removal procedure for replacement.
REP 22.9.1 Compile Assembly
Parts List on PL 22.9
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the A-Finisher from the machine. (REP 22.1)
2. Remove the Inner Front Cover. (PL 22.1)
3. Remove the Rear Cover. (PL 22.1)
4. Turn over the A-Finisher.
5. Remove the Bottom Cover. (PL 22.2)
6. Remove the Tray Cover. (PL 22.2)
7. Remove the Connector Bracket. (Figure 1)
(1)Release Clamps (3) and remove the wires.
(2)Disconnect Connectors (5).
(3)Remove Screws (2).
(4)Remove Connector Bracket.
Figure 1 Removing the Connector Bracket (j0fa42266)
Sensor
Sensor
