Xerox WorkCentre 5230 User Manual

February, 2008
4-116
WorkCentre 5225, 5230
REP 15.4.2
Launch Version
Repairs and Adjustments

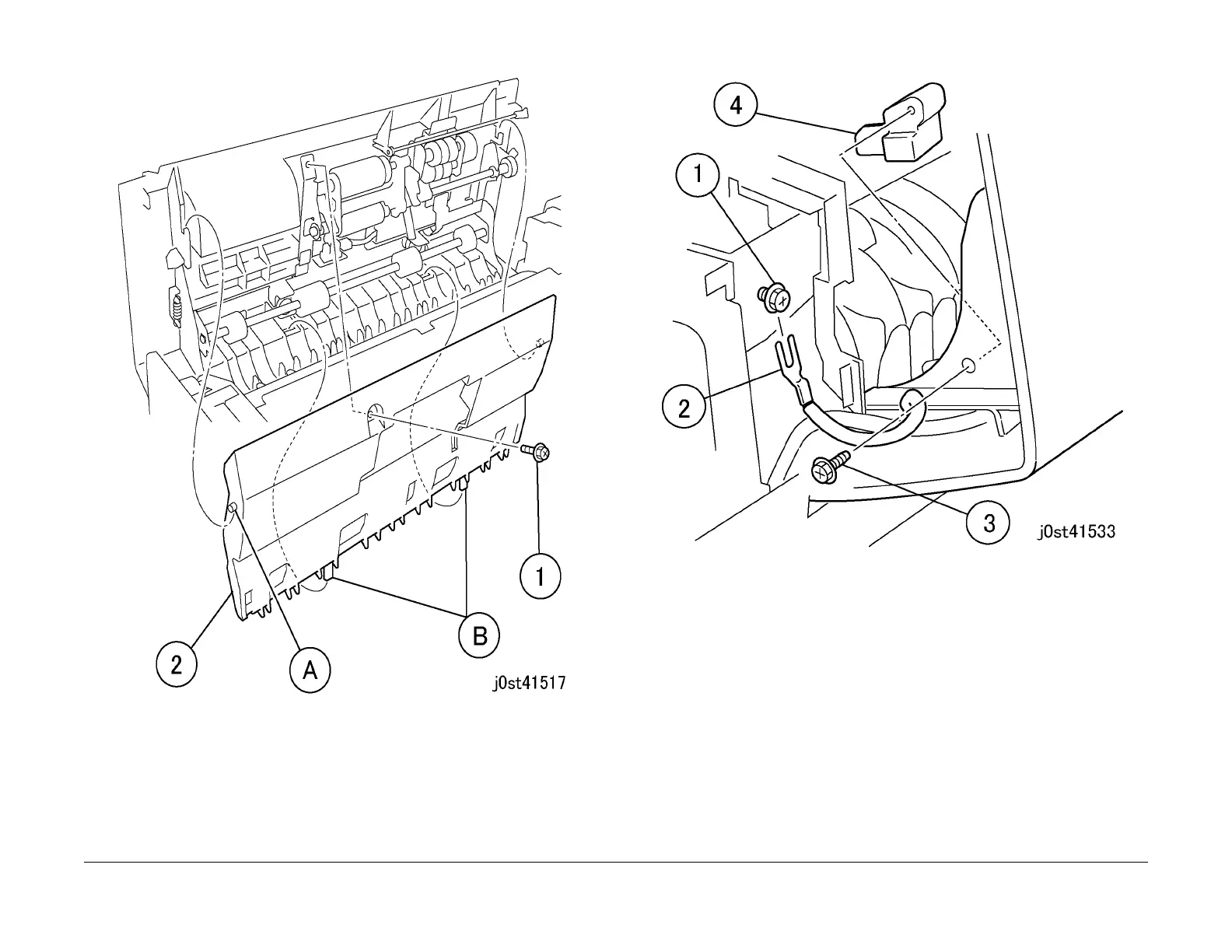

Figure 1 Removing the Feed Upper Chute
4. Remove the Harness Guide. (Figure 2)
1. Loosen the screw.
2. Remove the Earth Wire.
3. Remove the Tapping Screw (1).
4. Unfasten the Harness Guide.
Figure 2 Removing the Harness Guide
5. Remove the Plate Spring. (Figure 3)
1. Remove the Tapping Screw (2).
2. Remove the Plate Spring.
