Xerox WorkCentre 5230 User Manual

February, 2008
5-54
WorkCentre 5225, 5230
PL 13.5
Launch Version
Parts List

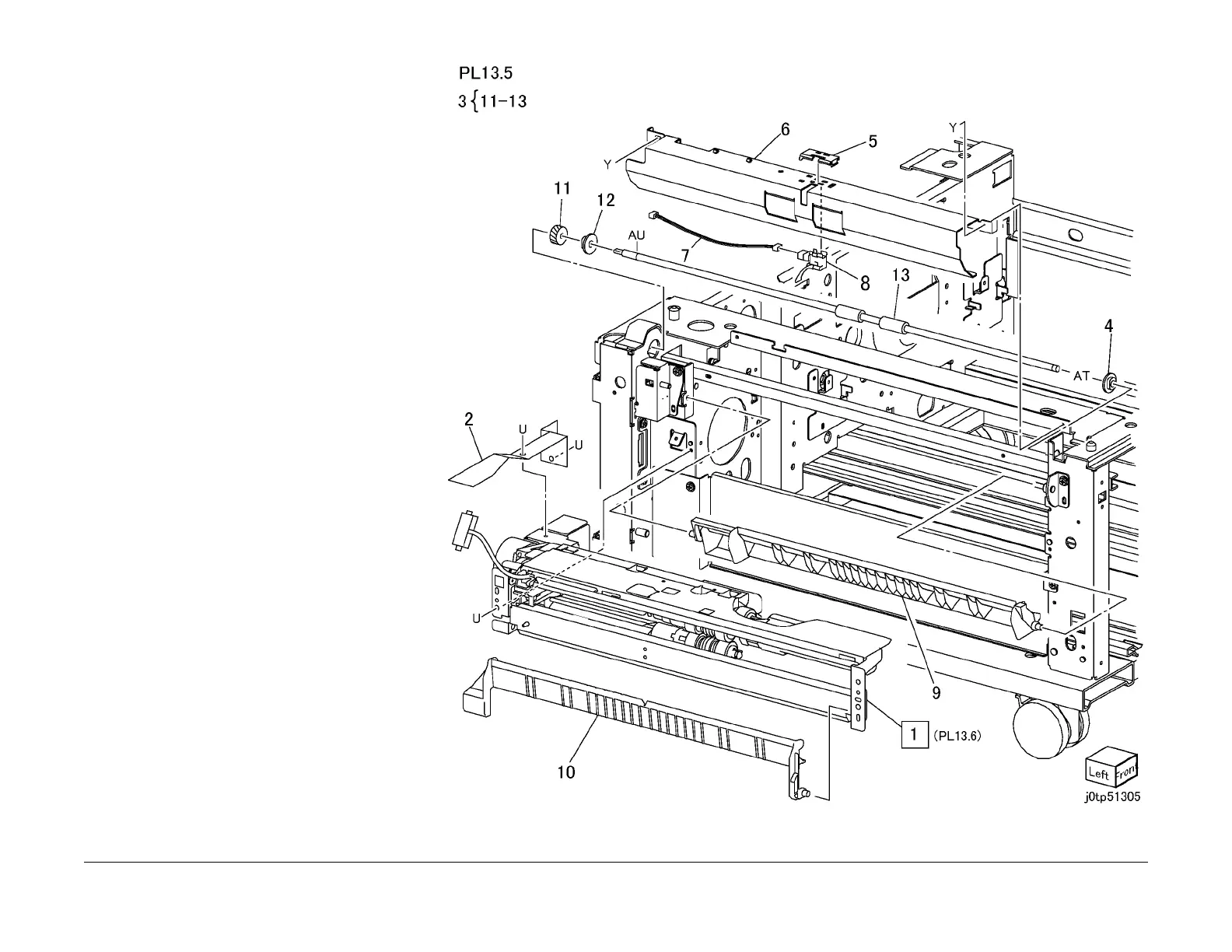

PL 13.5 Paper Feed (2/2)-Tandem
Item Part Description
1 059K42524 Tray 3 Feeder
2 – Cover (Not Spared)
3 059K40370 Takeaway Roll Assembly
4 – Bearing (Not Spared)
5 – Cover (Not Spared)
6 – Chute (Not Spared)
7 962K18171 Wire Harness
8 130K64121 Tray 3 Feed Out Sensor
9 – Upper Chute (Not Spared)
10 054E22622 Lower Chute
11 – Gear (16T) (P/O PL 13.5 Item 3)
12 – Bearing (P/O PL 13.5 Item 3)
13 – Takeaway Roll (P/O PL 13.5 Item 3)
