Xerox WorkCentre 5230 User Manual

February, 2008
4-40
WorkCentre 5225, 5230
REP 7.3.4
Launch Version
Repairs and Adjustments

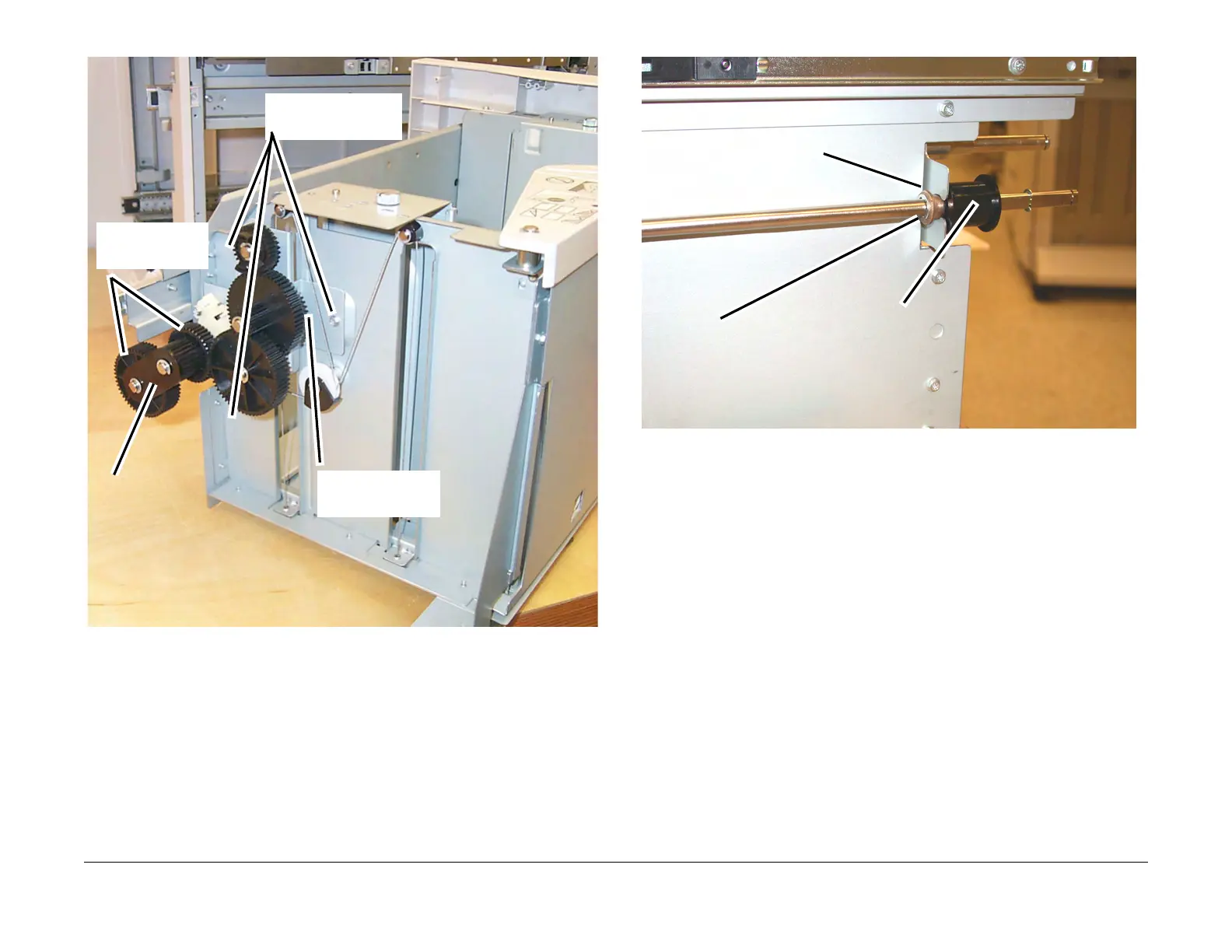

Figure 1 Gear Bracket Assembly
5. At the rear of the HCF Tray, begin to free up movement of the Tray Cable Pulley. (Figure
2)
a. Remove the E-Ring on the Lift Shaft.
b. Slide the Bushing to the left on the Lift Shaft.
NOTE: You will not be able to release the cable ends from underneath the Tray
Cable Pulley until you perform the next step, which puts slack in the cable enabling
the Lift Shaft to be disengaged from its bracket, and the Tray Cable Pulley moved
farther to the left releasing the cable ends.
Figure 2 Lift Shaft rear Tray Cable Pulley
6. Preparing to remove the Rear Tray Cable. (Figure 3)
a. Remove (2) E-Rings, (2) Wire Guides, and (2) Pulleys. See also Figure 6 (a).
1
Remove the oval
shaped Plate
3
Remove the screws (3)
4
Remove the Gear
Bracket Assembly
2
Remove the gears
(2)
1
Remove the E-ring
2
Slide the Bushing away
from the frame
Tray Cable Pulley

Xerox WorkCentre 5230 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Standard input capacity	500 sheets
Internal memory	No MB
Type	Digital copier
