Managing and Viewing Logs
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 119
D-Link UWS User Manual
Hosts Configuration
Use the Host Configuration page to configure remote logging hosts where the switch can send logs. To enable
remote logging, see “Syslog Configuration” on page 123.
To access the Host Configuration page, click LAN > Administration > Log > Host Configuration in the navigation
tree.

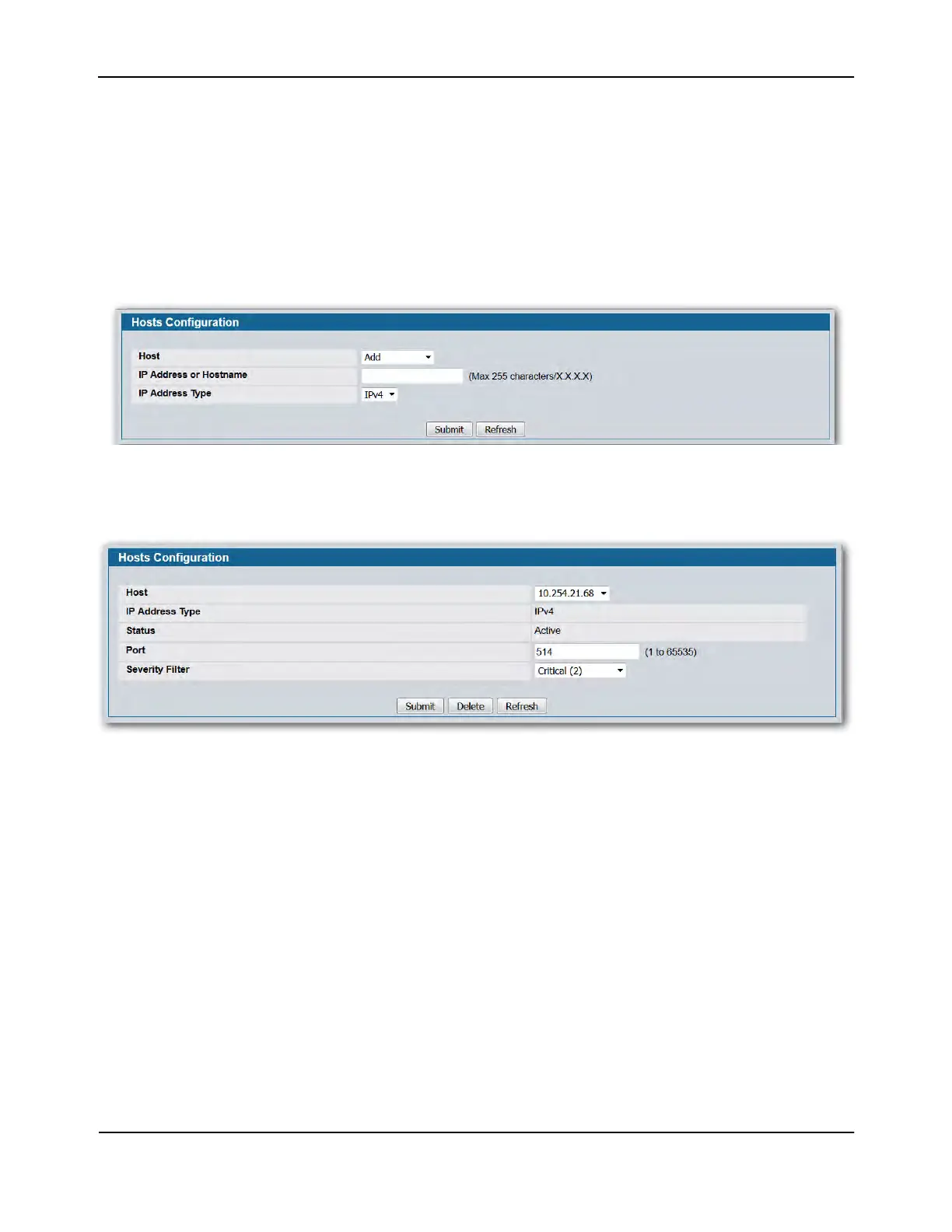

Figure 46 shows the Host Configuration page in its default state, before any logging hosts are added.
Figure 46: Host Configuration
After you add a logging host, the screen displays additional fields, as Figure 47 shows
Figure 47: Host Configuration with Logging Host
Adding a Remote Logging Host
Use the following procedures to add, configure, or delete a remote logging host.
1. From the Host field, select Add to add a new host, or select the IP address of an existing host to configure
the host.
If you are adding a new host, enter the IP address of the host in the IP Address field and click Submit. The
screen refreshes, and additional fields appear.
2. In the Port field, type the port number on the remote host to which logs should be sent.
3. Select the severity level of the logs to send to the remote host.
4. Click Submit to apply the changes to the system.
