Radio Configuration
In order to accommodate a broad range of wireless clients and wireless network requirements, the
DWL-8600AP and DWL-6600AP support two radios. Radio 1 can broadcast in one of the following modes:
• IEEE 802.11a mode
• IEEE 802.11a and IEEE 802.11n modes
• 5 GHz IEEE 802.11n mode
Radio 2 can broadcast in one of the following modes:
• IEEE 802.11b and IEEE 802.11g modes
• IEEE 802.11b, IEEE 802.11g, and IEEE 802.11n modes
• 2.4 GHz IEEE 802.11n mode
The DWL-3600AP supports one radio that can broadcast in one of the following modes:
• IEEE 802.11b and IEEE 802.11g modes
• IEEE 802.11b, IEEE 802.11g, and IEEE 802.11n modes
• 2.4 GHz IEEE 802.11n mode
You configure the default radio settings from the WLAN > Basic Setup > Radio tab, which the following figure
shows.

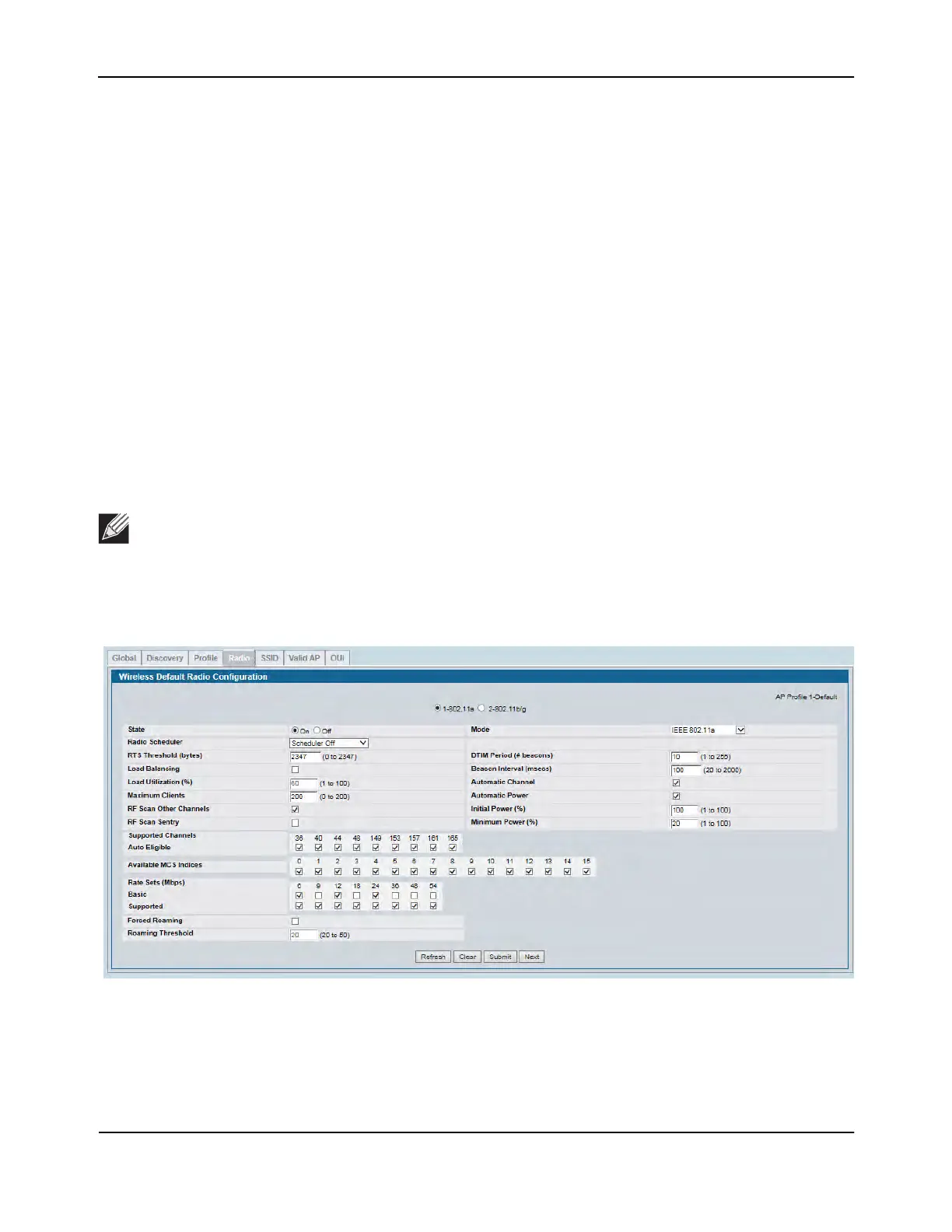

Figure 359: Radio Settings
The DWL-3600AP is a single-radio AP. Any settings you configure for Radio 1 (802.11a/n) are not
applied to the DWL-3600AP.
