D-Link DWL-8610AP User Manual

Multiple Port Mirroring
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 91
D-Link UWS User Manual
Adding a Port Mirroring Session
1. From the LAN > Administration > Multiple Port Mirroring page, click Add Source Port to display the Add
Source Port page.

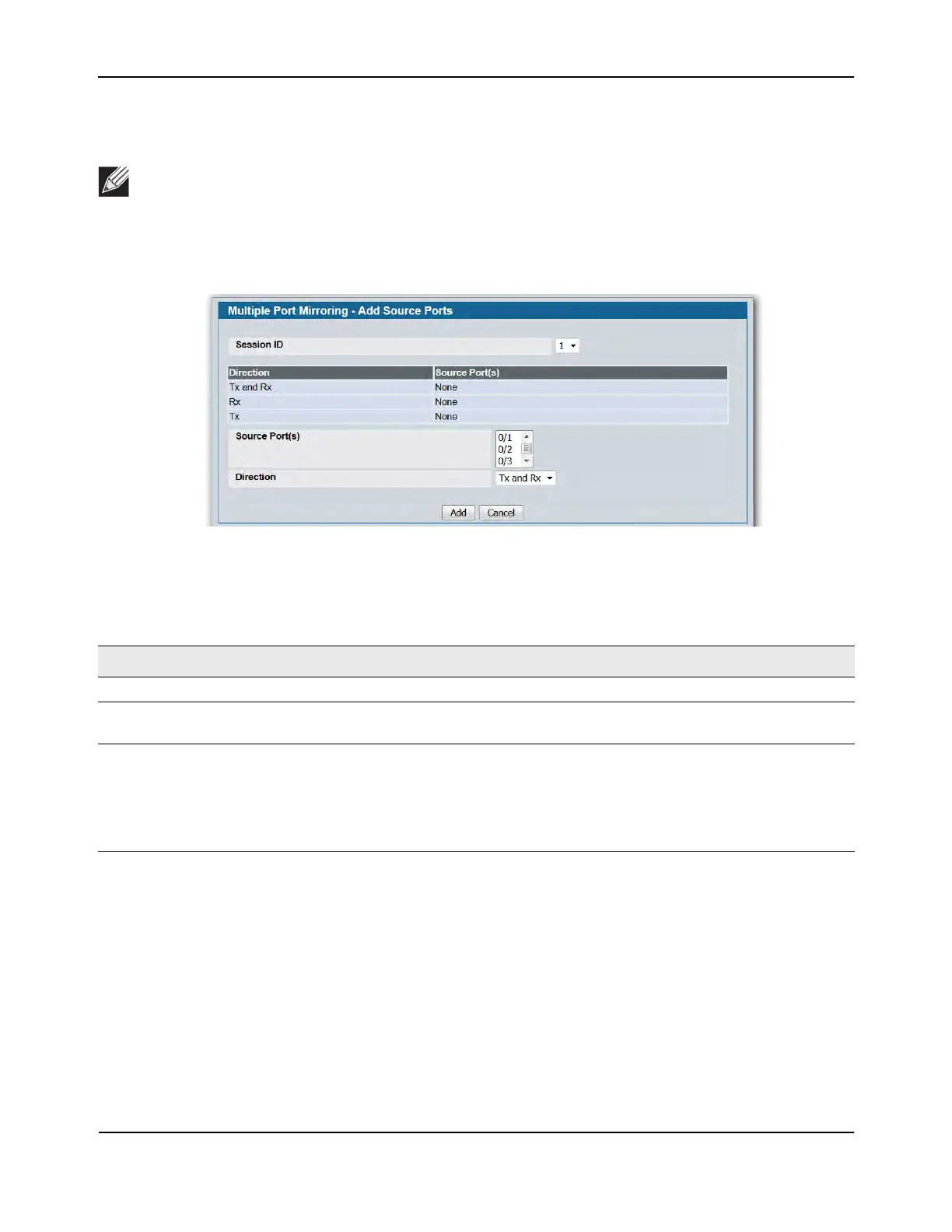

Figure 25: Multiple Port Mirroring—Add Source Ports
2. Configure the following fields:
3. Click Add to apply the changes to the system.
The new port mirroring session is enabled for the unit and port, and the device is updated. The source port
appears in the Source Port list on the Multiple Port Mirroring page.
Note: A Port will be removed from a VLAN or LAG when it becomes a destination mirror.
Table 20: Multiple Port Mirroring—Add Source Fields
Field Description
Session ID Specifies the monitoring session.
Source Port(s) Select the unit and port from which traffic is mirrored. Up to eight source
ports can be mirrored to a destination port.
Direction Select the type traffic monitored on the source port, which can be one of the
following:
• Tx: Monitors transmitted packets only.
• Rx: Monitors received packets only.
• Tx and Rx: Monitors transmitted and received packets.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
