Serial Port
The Serial Port Configuration page allows you to change the switch’s serial port settings. In order for a terminal
or terminal emulator to communicate with the switch, the serial port settings on both devices must be the
same. Some settings on the switch cannot be changed.
To view or configure the serial port settings on the switch, click LAN > Administration > Serial Port in the
navigation tree.

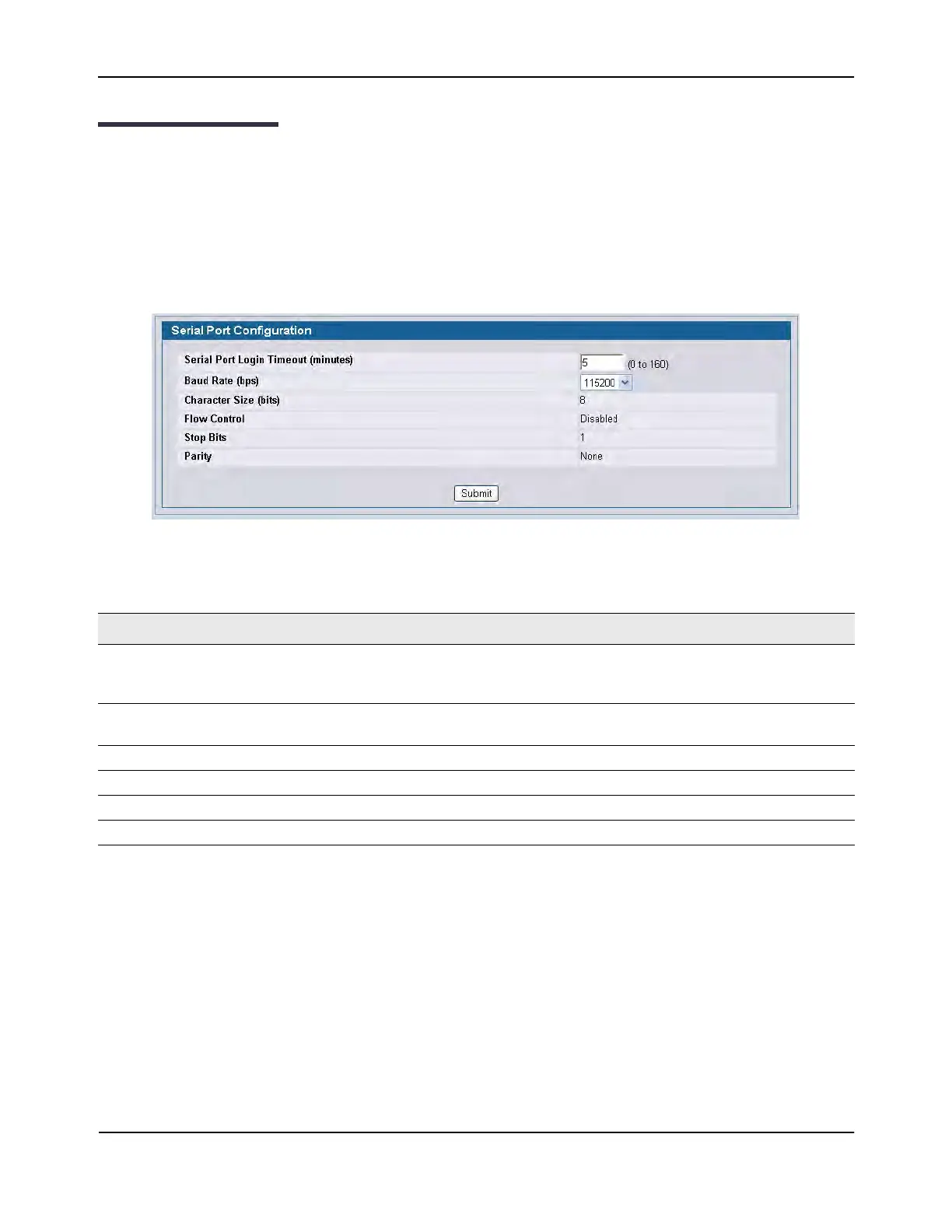

Figure 14: Serial Port
• If you change any data, click Submit to apply the changes to the system. If you want the switch to retain
the new values across a power cycle, you must perform a save.
Table 9: Serial Port Fields
Field Description
Serial Port Login Timeout
(minutes)
Indicates how many minutes of inactivity should occur on a serial port
connection before the switch closes the connection. Enter a number between
0 and 160. The factory default is 5. Entering 0 disables the timeout.
Baud Rate (bps) Select the default baud rate for the serial port connection from the menu. The
factory default is 115200.
Character Size (bits) The number of bits in a character. This is always 8.
Flow Control Whether hardware flow control is enabled or disabled. It is always disabled.
Stop Bits The number of stop bits per character. Its is always 1.
Parity The parity method used on the serial port. It is always None.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
