Configuring RIP
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 310
D-Link UWS User Manual
When an access list rule includes a destination IP address and netmask (an extended access list), the
destination IP address is compared to the network mask of the destination of the route. The destination
netmask in the access list serves as a wildcard mask, indicating which bits in the route’s destination mask are
significant for the filtering operation.
• If you make changes to the page, click Submit to apply the changes to the system.
• To delete a configured route, click Delete.
RIP Route Redistribution Summary
Use the RIP Route Redistribution Summary page to display Route Redistribution configurations.
To display the page, click LAN > Monitoring > L3 Status > RIP > Route Redistribution Summary in the
navigation menu.

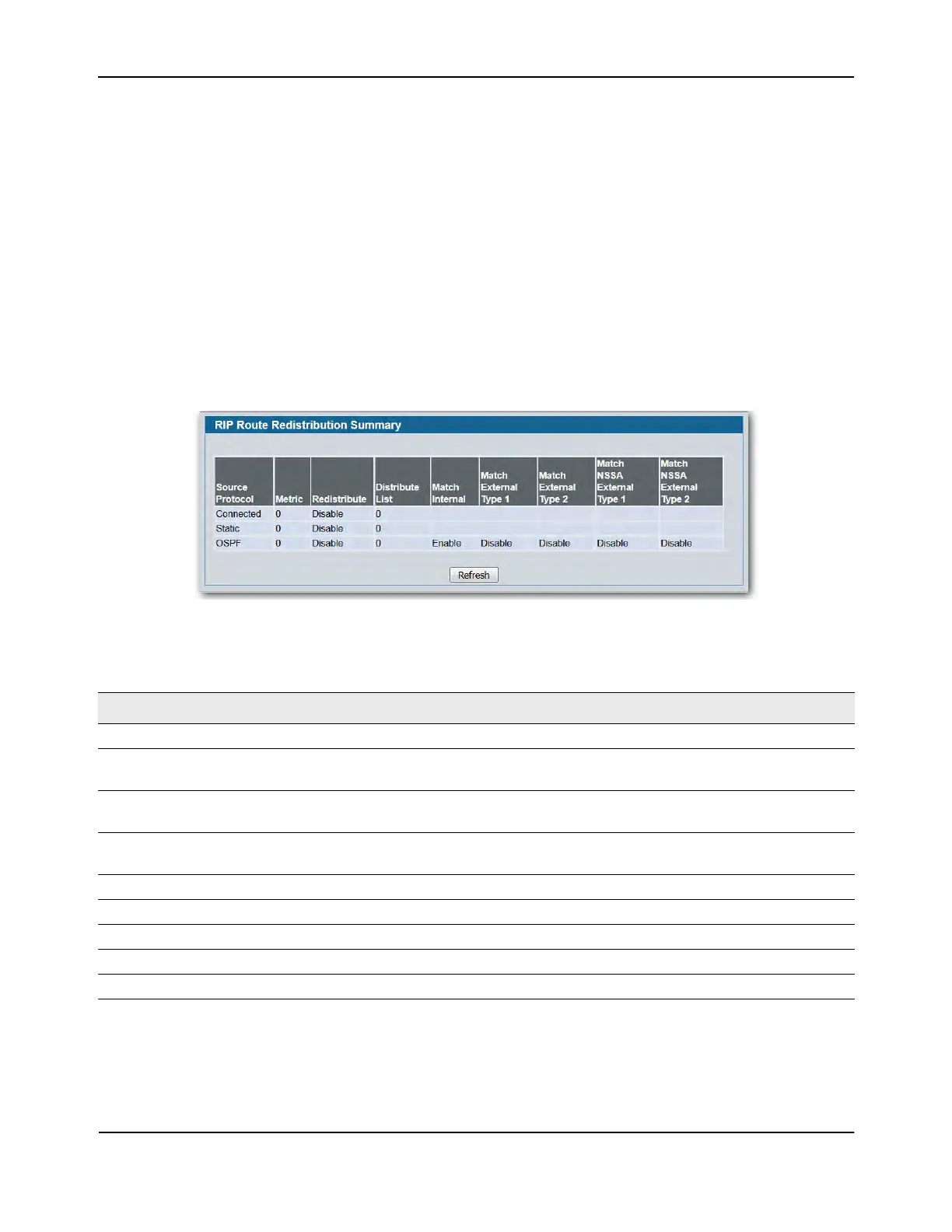

Figure 199: RIP Route Redistribution Summary
• Click Refresh to update the information on the screen.
Table 181: RIP Route Redistribution Summary Fields
Field Description
Source Protocol The Source Route to be Redistributed by RIP
Metric The Metric of redistributed routes for the given source route. Displays 0 when
not configured.
Redistribute The route-redistribution mode for a particular source protocol.By default this
is disabled.
Distribute List The Access List that filters the routes to be redistributed by the Destination
Protocol. Displays 0 when not configured.
Match Internal When Enable RIP redistributes OSPF Internal Routes.
Match External Type 1 When Enable RIP redistributes External Type 1 Routes.
Match External Type 2 When Enable RIP redistributes External Type 2 Routes.
Match NSSA External Type 1 When Enable RIP redistributes NSSA External Type 1 Routes.
Match NSSA External Type 2 When Enable RIP redistributes NSSA External Type 2 Routes.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
