D-Link DWL-8610AP User Manual

AP Management
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 586
D-Link UWS User Manual
Managed AP Advanced Settings
When the AP is in Managed mode, remote access to the AP is disabled. However, you can enable Telnet access
by enabling the Debug feature on the AP Management > Advanced Settings page. From the Managed AP
Advanced Settings page, you can also manually change the RF channel and power for each radio on an AP. The
manual power and channel changes override the settings configured in the AP profile (including automatic
channel selection) and take effect immediately. The manual channel and power assignments are not retained
when the AP is reset or if the profile is reapplied to the AP, such as when the AP disassociates and reassociates
with the switch.

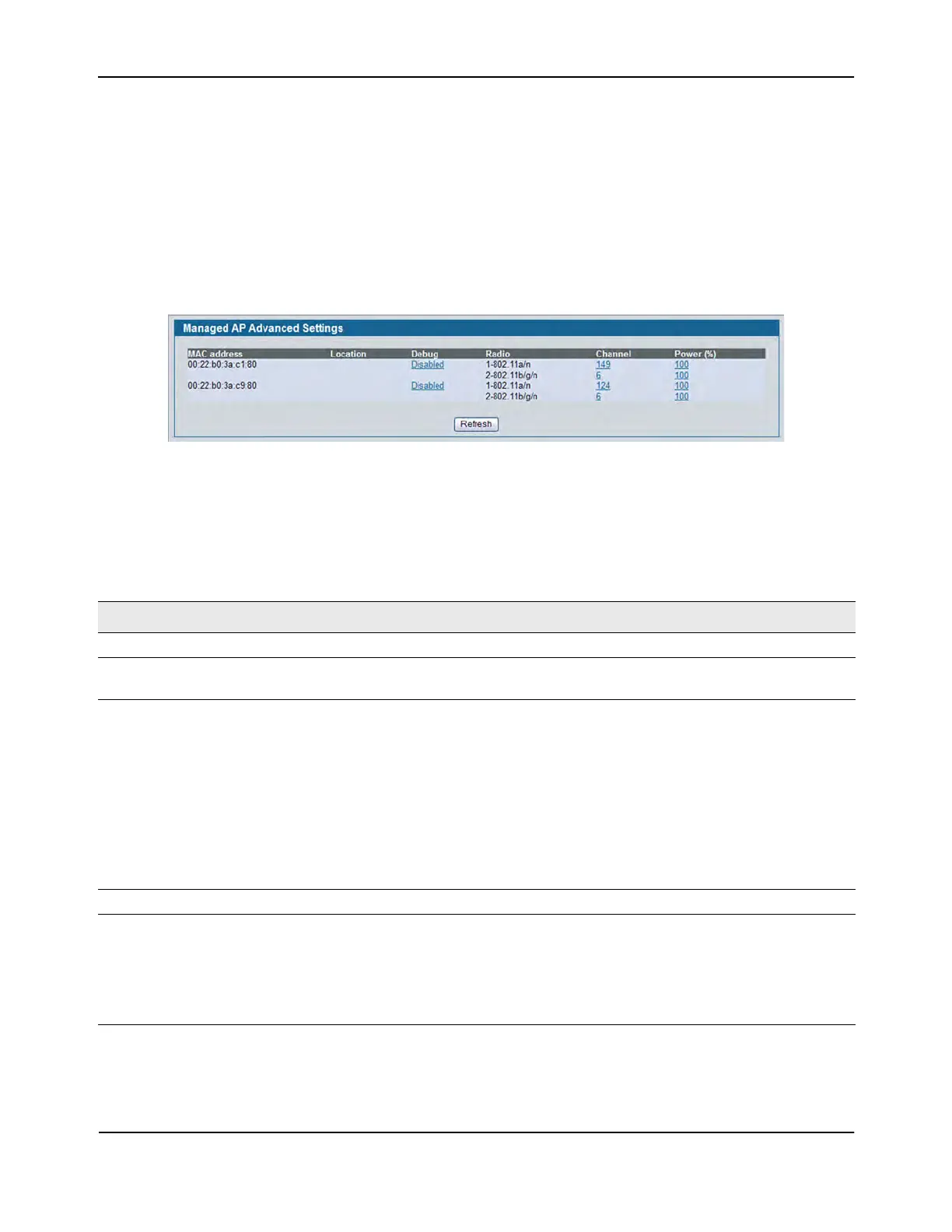

Figure 374: Advanced AP Management
Each AP managed by the DWS-4000 Series switch is listed by its MAC address and location. The location is
based on the value in the RADIUS or local Valid AP database. Table 343 describes the Advanced features you
can configure for the AP.
Table 343: Advanced AP Management
Field Description
MAC Address Shows the MAC address of the AP.
Location Shows the AP location, which is based on the value configured in the RADIUS or local
Valid AP database.
Debug To help you troubleshoot, you can enable Telnet access to the AP so that you can
debug the device from the CLI.
The Debug field shows the debug status and can be one of the following:
• Disabled
• Set Requested
• Set in Progress
• Enabled
To change the status, click the Debug status link. The Managed AP Debug page
appears. Table 344 describes the fields on the new page.
Radio Identifies the radio to which the channel and power settings apply.
Channel Click the Channel link to access the Managed AP Channel/Power Adjust page. From
that page, you can set a new channel for Radio 1 or Radio 2. The available channels
depend on the radio mode and country in which the APs operate. The manual
channel change overrides the channel configured in the AP profile and is not retained
when the AP reboots or when the AP profile is reapplied.Table 345 on page 589
describes the fields on the new page.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
