D-Link DWL-8610AP User Manual

Configuring GARP
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 207
D-Link UWS User Manual
GARP Port Configuration
Use the GARP Port Configuration page to configure GARP settings for a specific interface.
To access the GARP Port Configuration page, click LAN > L2 Features> GARP > Port Configuration in the
navigation tree.

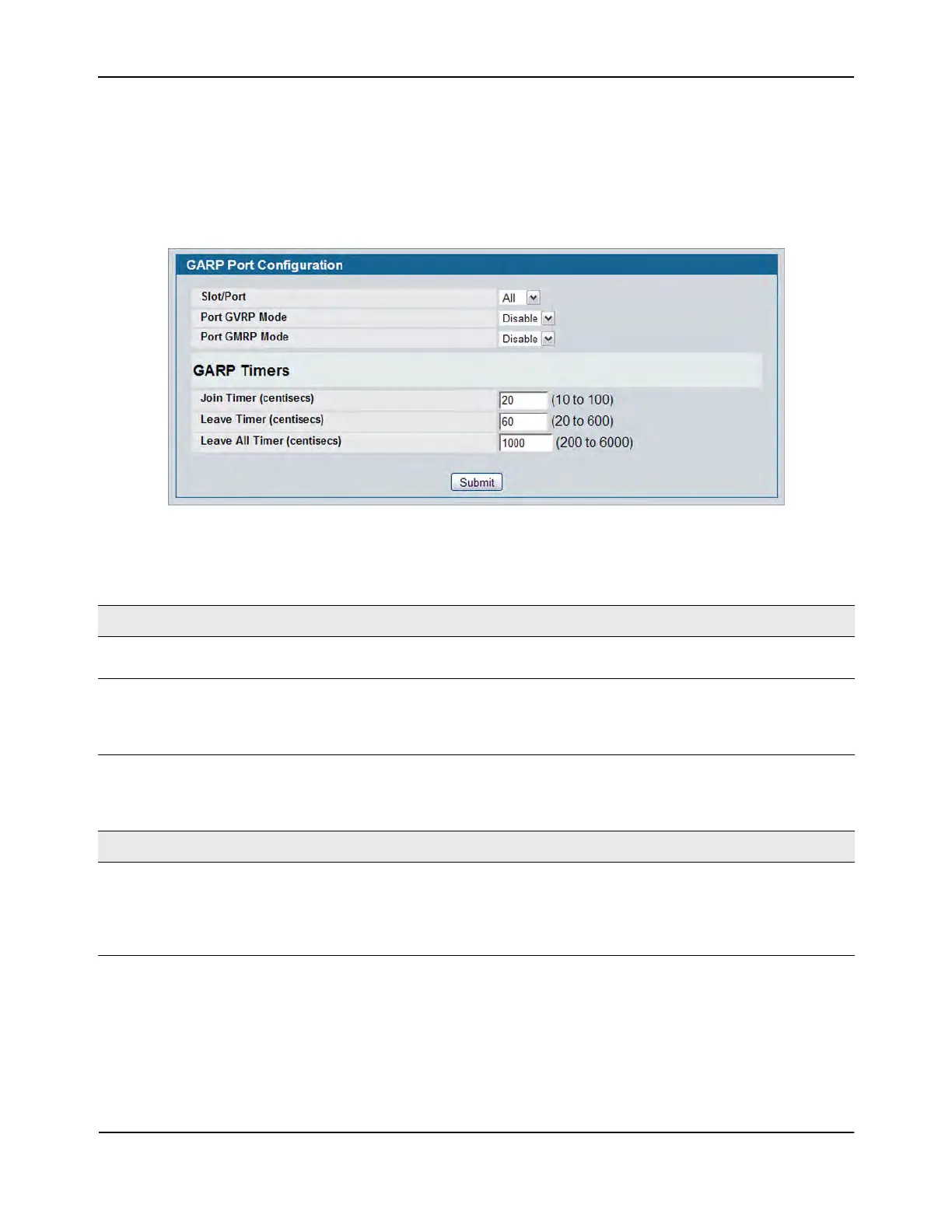

Figure 116: GARP Port Configuration
Table 100: GARP Port Configuration Fields
Field Description
Slot/Port Specifies interface on which to configure the GARP settings. If you select All
from the drop-down menu, the settings on the page affect all interfaces.
Port GVRP Mode Choose the GARP VLAN Registration Protocol administrative mode for the
port by selecting enable or disable from the pulldown menu.If you select
disable, the protocol will not be active and the Join Time, Leave Time and
Leave All Time will have no effect. The factory default is disable.
Port GMRP Mode Choose the GARP Multicast Registration Protocol administrative mode for the
port by selecting enable or disable from the pulldown menu. If you select
disable, the protocol will not be active, and Join Time, Leave Time and Leave
All Time have no effect. The factory default is disable.
GARP Timers
GARP Join Timer (centisecs) Specify the time between the transmission of GARP PDUs registering (or re-
registering) membership for a VLAN or multicast group in centiseconds. Enter
a number between 10 and 100 (0.1 to 1.0 seconds). The factory default is 20
centiseconds (0.2 seconds). An instance of this timer exists for each GARP
participant for each port.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
