D-Link DWL-8610AP User Manual

Monitoring Status and Statistics
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 455
D-Link UWS User Manual
Viewing the Peer Switch Configuration Received Status
The Peer Switch Configuration feature allows you to send the critical wireless configuration from one switch
to all other switches. In addition to keeping the switches synchronized, this function enables the administrator
to manage all wireless switches in the cluster from one switch. The Peer Switch Configuration Received Status
page provides information about the configuration a switch has received from one of its peers.

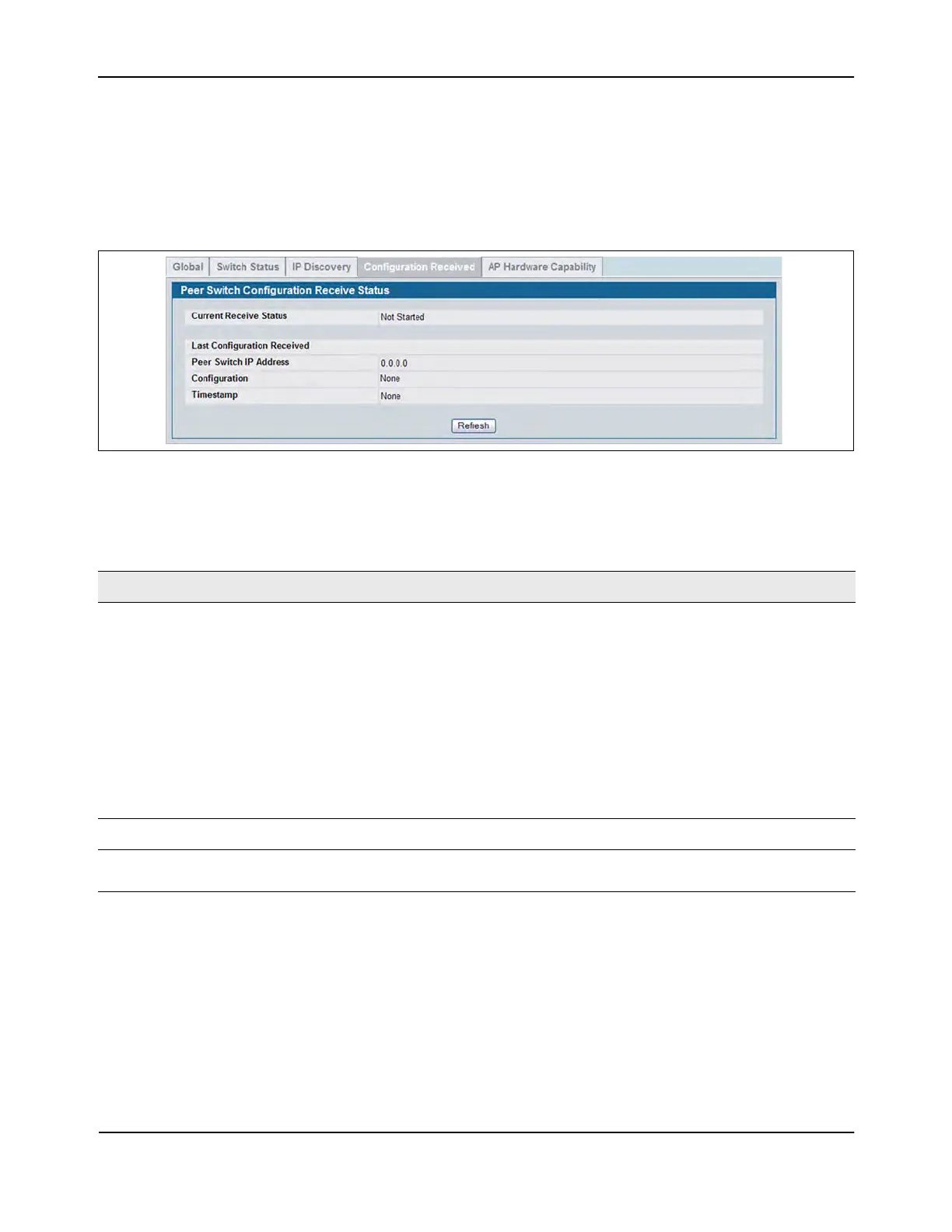

Figure 306: Configuration Received
Table 258 describes the fields on the Wireless Global Status page.
Table 261: Peer Switch Configuration
Field Description
Current Receive Status Indicates the global status when wireless configuration is received from a peer
switch. The possible status values are as follows:
• Not Started
• Receiving Configuration
• Saving Configuration,
• Applying AP Profile Configuration
• Success
•Failure — Invalid Code Version
•Failure — Invalid Hardware Version
•Failure — Invalid Configuration
Last Configuration Received
Peer Switch IP Address Indicates the last switch from which this switch received any wireless configuration
data.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
