D-Link DWL-8610AP User Manual

Multiple Port Mirroring
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 90
D-Link UWS User Manual
Multiple Port Mirroring
Port mirroring selects the network traffic for analysis by a network analyzer. This is done for specific ports of
the switch. As such, many switch ports are configured as source ports and one switch port is configured as a
destination port. You have the ability to configure how traffic is mirrored on a source port. Packets that are
received on the source port, that are transmitted on a port, or are both received and transmitted, can be
mirrored to the destination port.
The packet that is copied to the destination port is in the same format as the original packet on the wire. This
means that if the mirror is copying a received packet, the copied packet is VLAN tagged or untagged as it was
received on the source port. If the mirror is copying a transmitted packet, the copied packet is VLAN tagged or
untagged as it is being transmitted on the source port.
Use the Multiple Port Mirroring page to define port mirroring sessions.
To access the Multiple Port Mirroring page, click LAN > Administration > Multiple Port Mirroring in the
navigation menu.

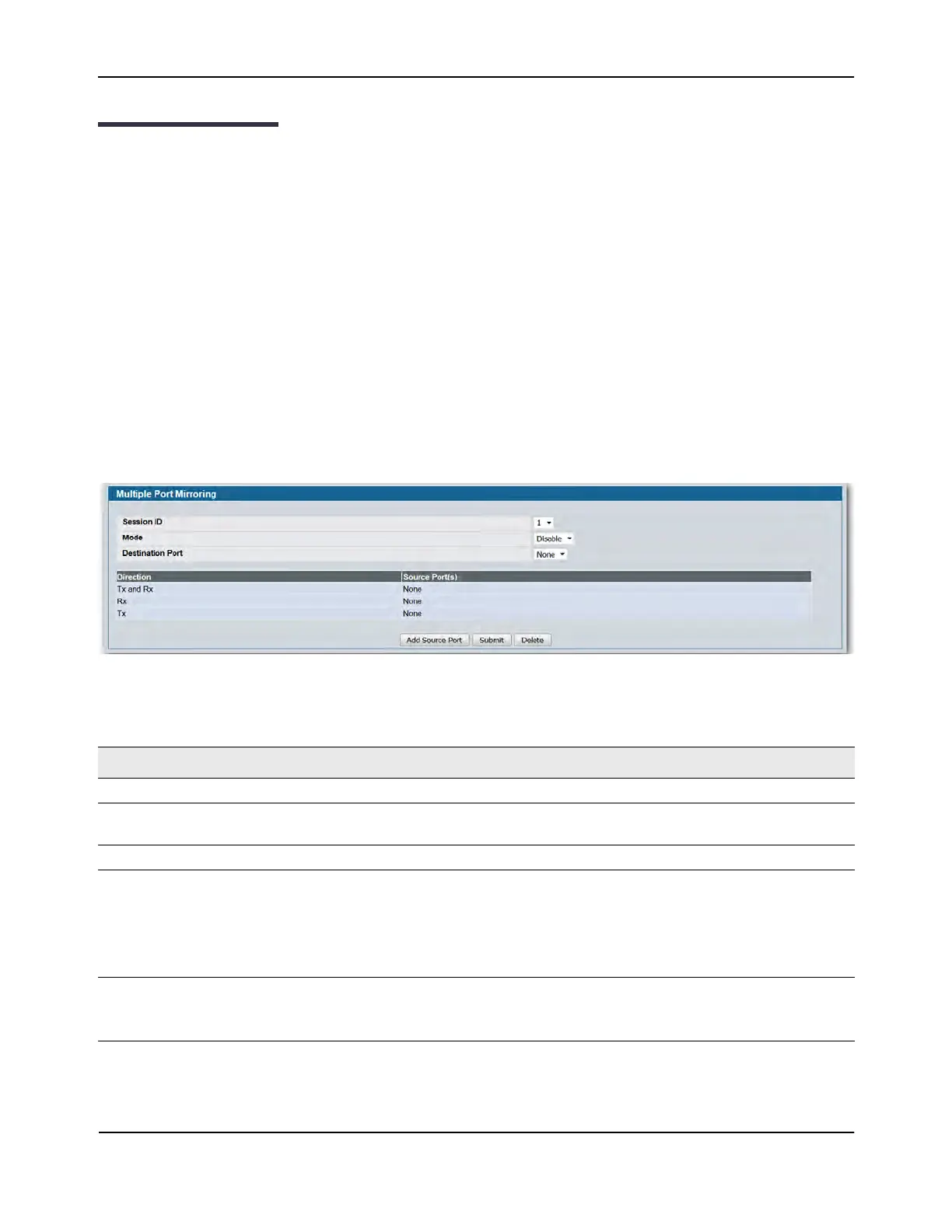

Figure 24: Multiple Port Mirroring
Table 19: Multiple Port Mirroring Fields
Field Description
Session ID Specifies the monitoring session.
Mode Enables you to turn on of off Multiple Port Mirroring. The default is Disabled
(off).
Destination Port Select the port to which port traffic may be copied.
Direction Specifies the direction of traffic on source port(s) which will be sent to the
probe port. Possible values are:
• Tx and Rx - Both Ingress and Egress traffic.
• Rx - Ingress traffic only.
• Tx - Egress traffic only.
Source Port(s) Specifies the source port(s) with directions as mirrored port(s). Traffic of the
source port(s) is sent to the probe port.
Up to 52 source ports can be selected per session.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
