Virtual Router Redundancy Protocol (VRRP)
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 330
D-Link UWS User Manual
VRRP Route Tracking
Use the VRRP Route Tracking page to add a route into the tracking list. To access this page, click Add from the
VRRP Route Tracking page.

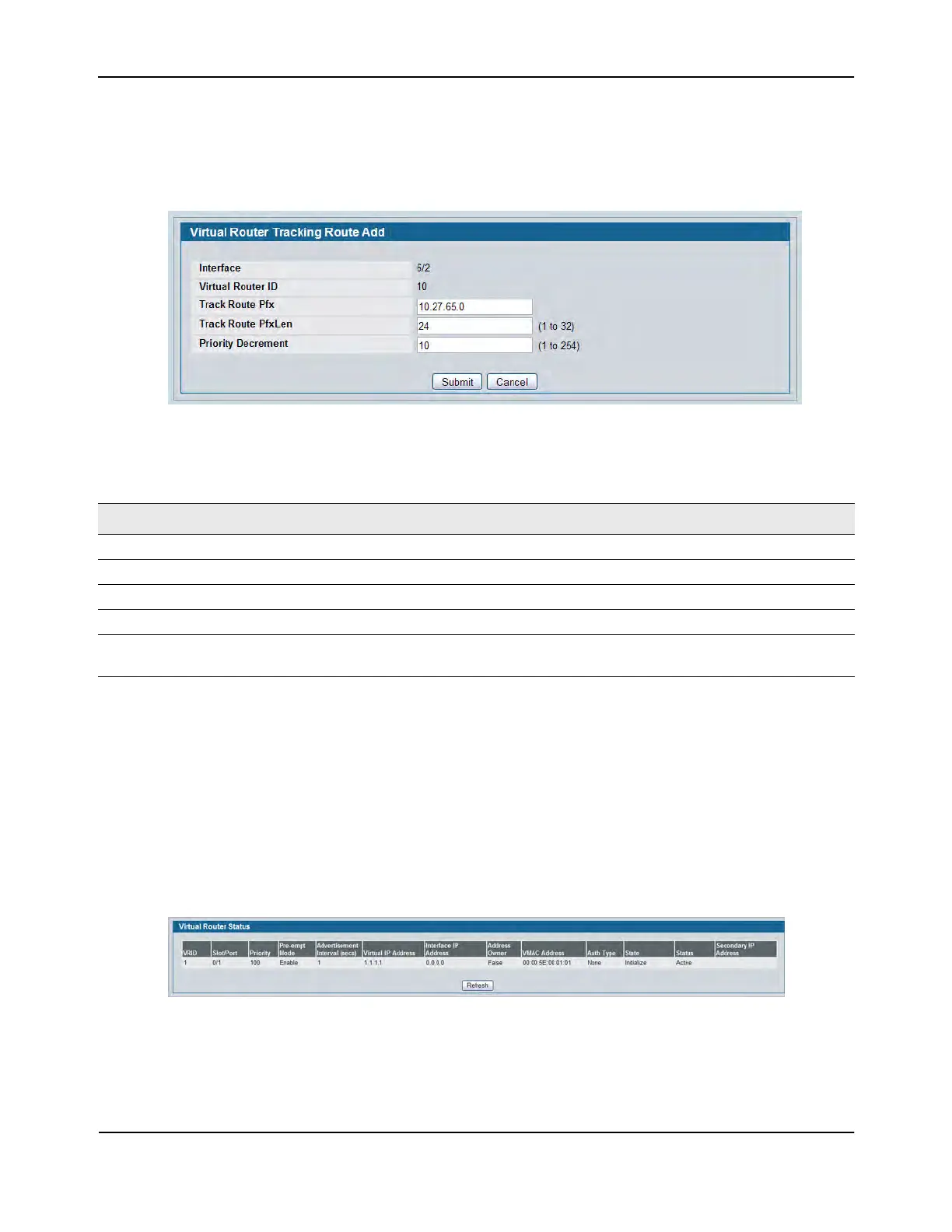

Figure 215: VRRP Route Tracking
• Click Submit to send the updated configuration to the switch. Configuration changes take effect
immediately. These changes will not be retained across a power cycle unless a Save is performed.
• Click Cancel to return to the VRRP Route Tracking Configuration page.
Virtual Router Status
Use the Virtual Router Status page to display virtual router status.
To display the page, click LAN > Monitoring > L3 Status > Virtual Router Status in the navigation tree.
Figure 216: Virtual Router Status
Table 196: VRRP Route Tracking Fields
Field Description
Interface The Interface associated with the Virtual Router ID.
Virtual Router ID The Virtual Router ID for which data is to be displayed.
Track Route Pfx The prefix of the route.
Track Route PfxLen The prefix length of the route.
Priority Decrement The priority decrement for the route. The valid range is 1-254. The default
value is 10.
