ACL Interface Configuration
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 371
D-Link UWS User Manual
ACL Interface Configuration
When an ACL is bound to an interface, all the rules that have been defined are applied to the selected
interface. Use the ACL Interface Configuration page to assign ACLs and Interfaces and prioritize the ACLs that
are bound to each interface. To display the ACL Interface Configuration page, click LAN > QoS > Access Control
Lists > Interface Configuration in the navigation menu.

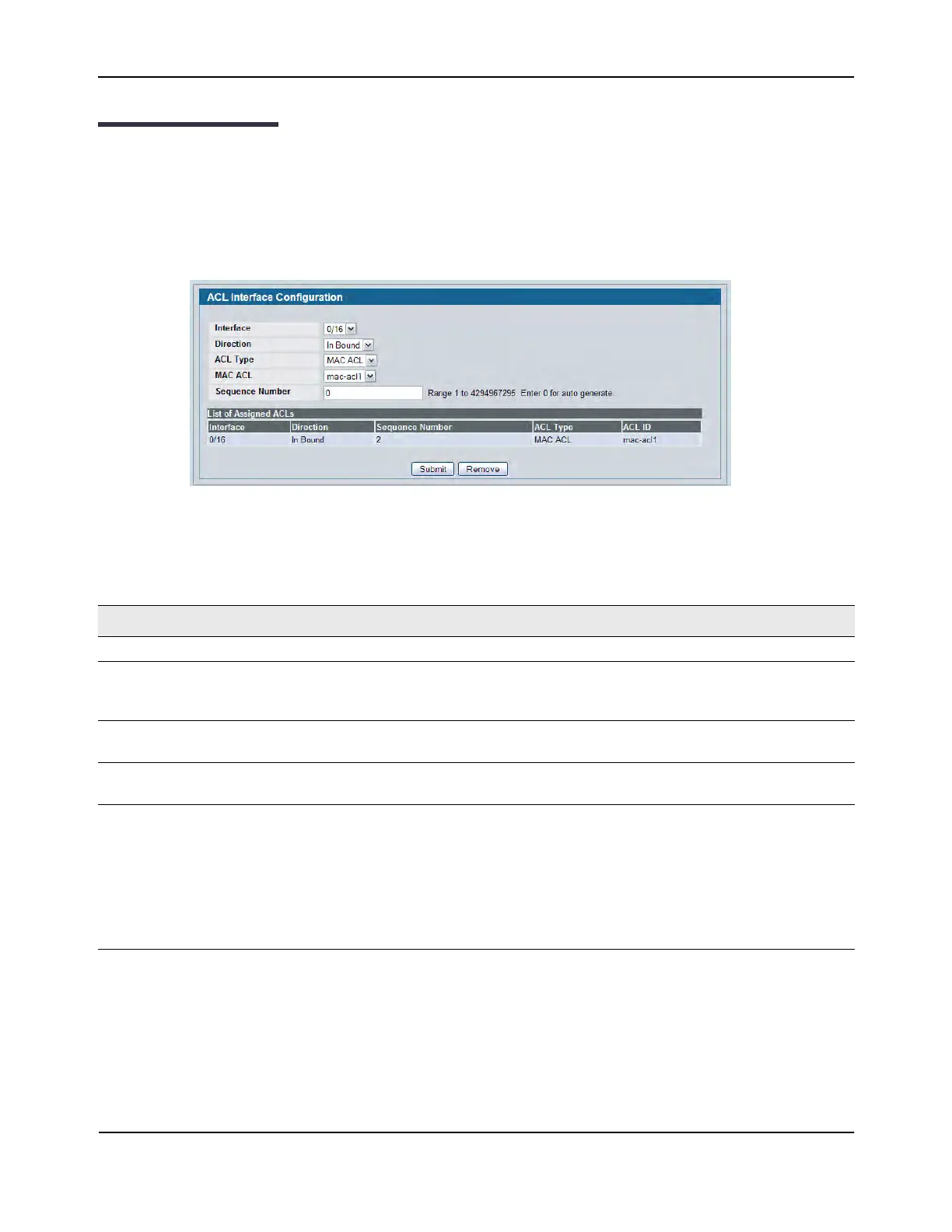

Figure 250: ACL Interface Configuration
If an ACL has been assigned to the interface, it displays in the table at the bottom of the page.
Table 216: ACL Interface Configuration Fields
Field Description
Interface Select the interface or LAG from the menu.
Direction Specifies the packet filtering direction for the ACL. The system supports
Inbound filtering. inbound filtering means the system applies the ACL rules to
packets as they enter the interface.
ACL Type Use the menu to select the ACL type to which incoming packets are matched.
Packets can be matched to IP- or MAC-based ACLs.
IP/MAC ACL Select the ACL of the specified type to apply to the interface from the
dropdown menu.
Sequence Number Assigns the priority of this ACL. If more than one ACL is applied to an interface,
then the match criteria for the highest sequence ACLs are checked first. A
lower number indicates higher priority. If a sequence number is already in use
for this interface and direction, the specified access list replaces the currently
attached access list using that sequence number. If you do not specify a
sequence number, a sequence number that is one greater than the highest
sequence number currently in use for this interface and direction is used. The
valid range is 1-4294967295.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
