D-Link DWL-8610AP User Manual

Captive Portal Configuration
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 397
D-Link UWS User Manual
Configuring Users in the Local Database
From the Local User Configuration page, you can configure additional settings for an existing CP user in the
local database. When you add a user, you can set maximum data transmission rates to control bandwidth
usage. The timeouts and transmission limits are configured on a per-user basis.

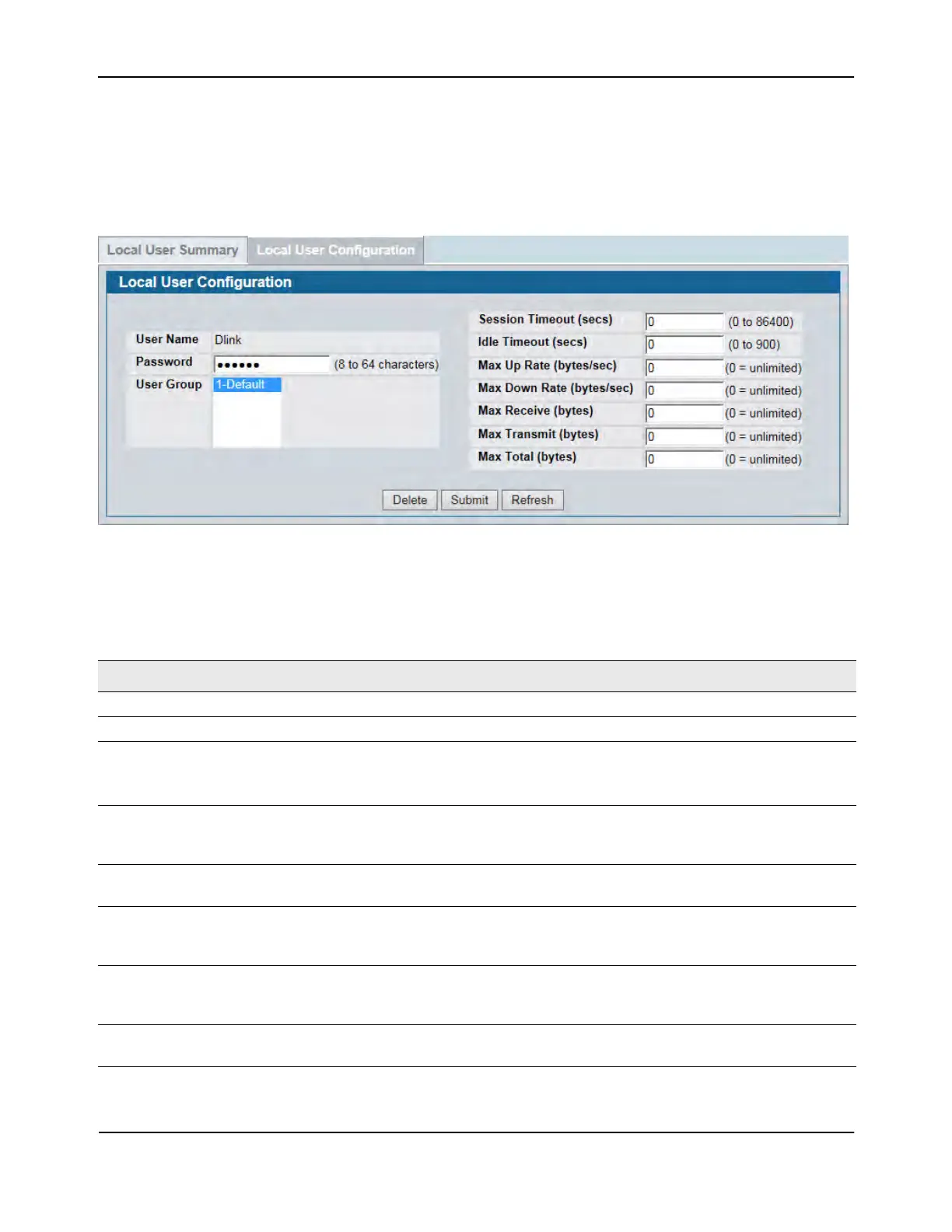

Figure 269: Local User Configuration
Table 229 describes the fields you use to configure CP users in the local database.
Table 229: Local User Configuration
Field Description
User Name Enter the name of the user.
Password Enter a password for the user. The password length can be from 8 to 64 characters.
User Group Assign the user to at least one User Group. To assign a user to more than one group,
press the Ctrl key and click each group.
New users are assigned to the 1-Default user group by default.
Session Timeout Enter the number of seconds a user is permitted to remain connected to the network.
Once the Session Timeout value is reached, the user is logged out automatically. A value
of 0 means that the user does not have a Session Timeout limit.
Idle Timeout Enter the number of seconds the user can remain idle before the switch automatically
logs the user out. A value of 0 means that the user does not have an idle timeout limit.
Max Up Rate Enter the maximum speed, in bytes per second, that the user can transmit traffic when
using the captive portal. This setting limits the bandwidth at which the user can send
data into the network.
Max Down Rate Enter the maximum speed, in bytes per second, that the user can receive traffic when
using the captive portal. This setting limits the bandwidth at which the user can receive
data from the network.
Max Receive Enter the maximum number of bytes that the user is allowed to receive when using the
captive portal. After this limit has been reached the user will be disconnected.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
