Viewing Associated Client TSPEC Status
The TSPEC page for the associated client status shows information about a client’s active traffic streams. If
there are no associated clients with active traffic streams, the page displays a message indicating that there
are no traffic streams for any associated clients.

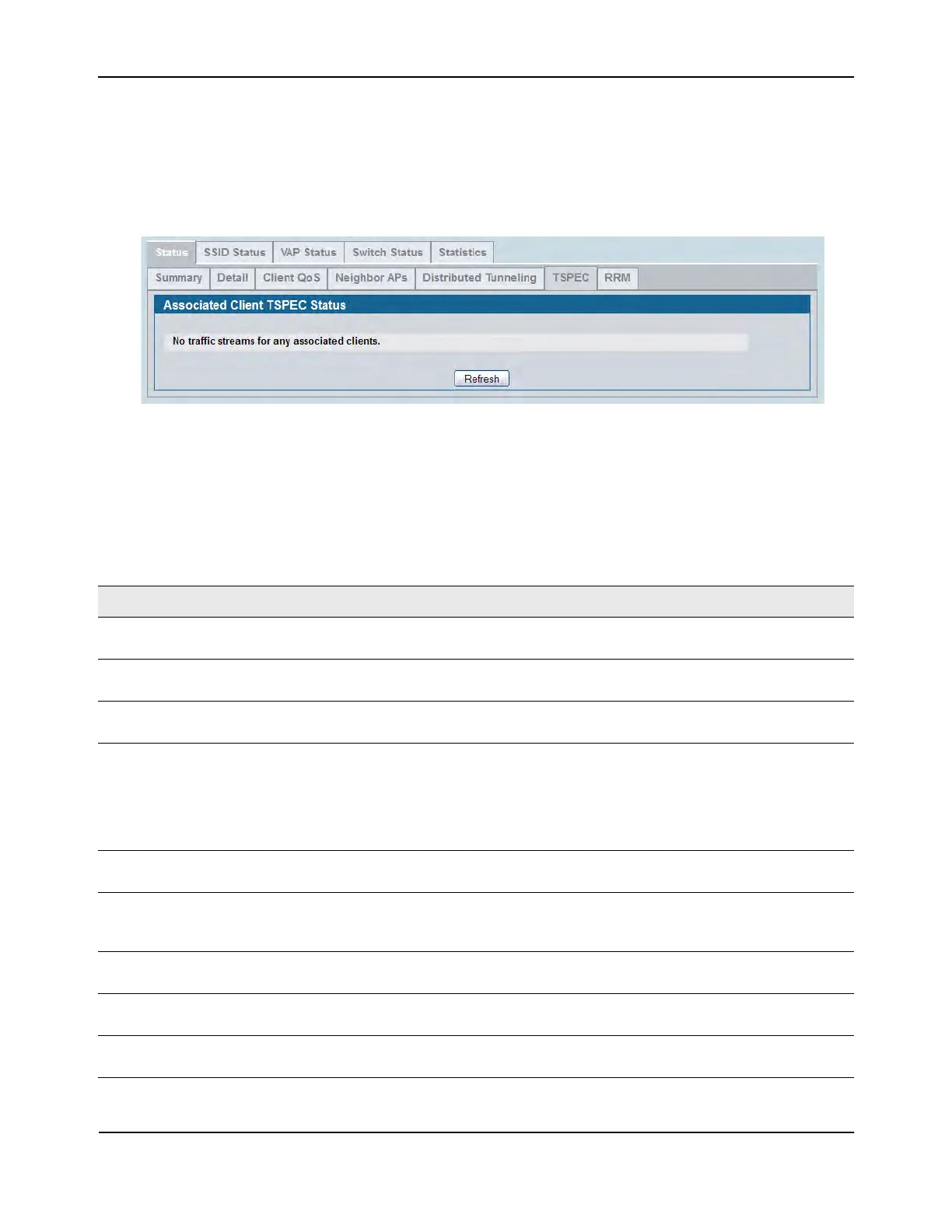

Figure 329: Associated Client TSPEC Status
Use the menu above the table to select the MAC address of the client with the information to view. Only clients
with an active traffic stream appear in the selection list.
Table 293 describes the information available on the TSPEC page for the associated client status.
Table 297: Associated Client TSPEC Status
Field Description
Client MAC Address MAC address of a client that has one or more active traffic streams on an AP
managed by the switch.
Traffic Stream Identifier (TID) Identifying number of the traffic stream as specified in the TSPEC. The TID
range is 0–7.
Access Category (AC) The access category to which the traffic stream corresponds, which is either
voice or video.
Direction The direction of the traffic stream as indicated in the TSPEC. The possible
values are:
• Uplink
• Downlink
• Bidirectional
User Priority (UP) The user priority indicated in the TSPEC, which identifies the traffic stream or
the client.
Medium Time Medium time (bandwidth) allocated to the client for this traffic stream. This
value is calculated by the AP using the TSPEC parameters provided by the
client and is measured in 32μsec/sec units.
Excess Usage Events Number of times the client has exceeded the medium time (bandwidth)
established for its TSPEC.
BSSID Basic service-set identifier. The MAC address of the (virtual) AP to which the
client is associated.
SSID Service set identifier. The network name assigned to the BSSID to which the
client is associated.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
