D-Link DWL-8610AP User Manual

SSL/Secure HTTP Configuration
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 381
D-Link UWS User Manual

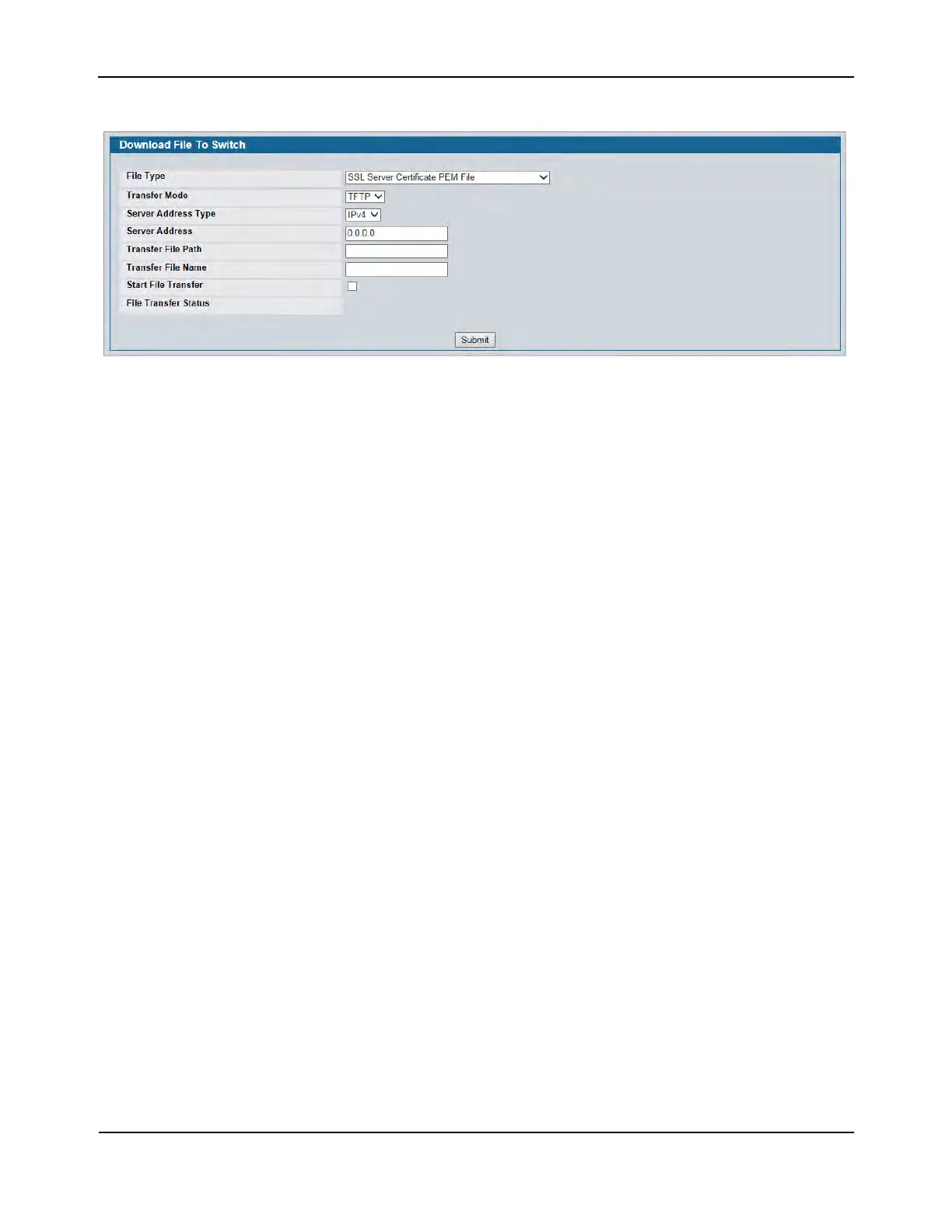

Figure 257: File Download
2. From the File Type field on the File Download page, select one of the following types of SSL files to
download:
– SSL Trusted Root Certificate PEM File: SSL Trusted Root Certificate File (PEM Encoded).
– SSL Server Certificate PEM File: SSL Server Certificate File (PEM Encoded).
– SSL DH Weak Encryption Parameter PEM File: SSL Diffie-Hellman Weak Encryption Parameter File
(PEM Encoded).
– SSL DH Strong Encryption Parameter PEM File: SSL Diffie-Hellman Strong Encryption Parameter File
(PEM Encoded).
3. Verify the IP address of the TFTP server and ensure that the software image or other file to be downloaded
is available on the TFTP server.
4. Complete the TFTP Server IP Address and TFTP File Name (full path without TFTP server IP address) fields.
5. Select the Start File Transfer check box, and then click Submit.
After you click Submit, the screen refreshes and a “File transfer operation started” message appears. After
the software is downloaded to the device, a message appears indicating that the file transfer operation
completed successfully.
6. To return to the Secure HTTP Configuration page, click LAN > Security > SSL Configuration in the navigation
menu.
7. To enable the HTTPS admin mode, select Enable from the HTTPS Admin Mode field, and then click Submit.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
