Table 239 describes the fields on the Interface - Client Status page.
Viewing the Client CP Association Status
Use the CP - Client Status page to view clients that are authenticated to a specific CP configuration.

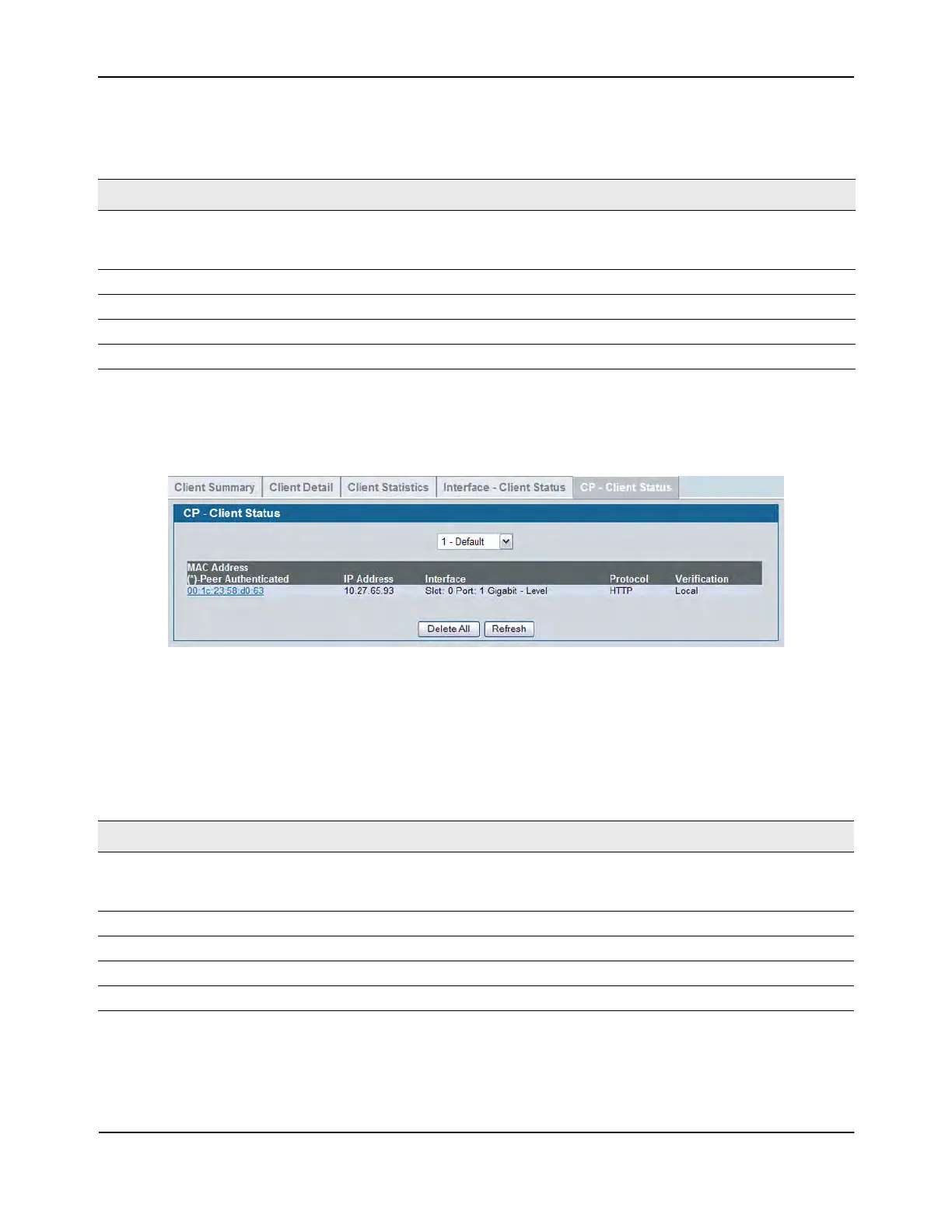

Figure 279: CP - Client Status
The drop-down menu lists each CP configured on the switch. To view information about the clients connected
to the CP, select it from the list.
The following table describes the fields on the Client CP Association Status page.
Table 239: Interface - Client Status
Field Description
MAC Address Identifies the MAC address of the wireless client. If the MAC address is
marked with an asterisk (*), the authenticated client is authenticated by a
peer switch. In order words, the cluster controller was not the authenticator.
IP Address Identifies the IP address of the wireless client.
CP Configuration Identifies the captive portal the client used to access the network.
Protocol Shows the current connection protocol, which is either HTTP or HTTPS.
Verification Shows the current account type, which is Guest, Local, or RADIUS.
Table 240: CP - Client Status
Field Description
MAC Address Identifies the MAC address of the wireless client. If the MAC address is marked with
an asterisk (*), the authenticated client is authenticated by a peer switch. In order
words, the cluster controller was not the authenticator.
IP Address Identifies the IP address of the wireless client.
Interface Identifies the interface the client used to access the network.
Protocol Shows the current connection protocol, which is either HTTP or HTTPS.
Verification Shows the current account type, which is Guest, Local, or RADIUS.
