Locating WLAN Devices
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 653
D-Link UWS User Manual
Managed AP Coordinates
Use the Managed AP Coordinates page to manually specify where APs are physically located.

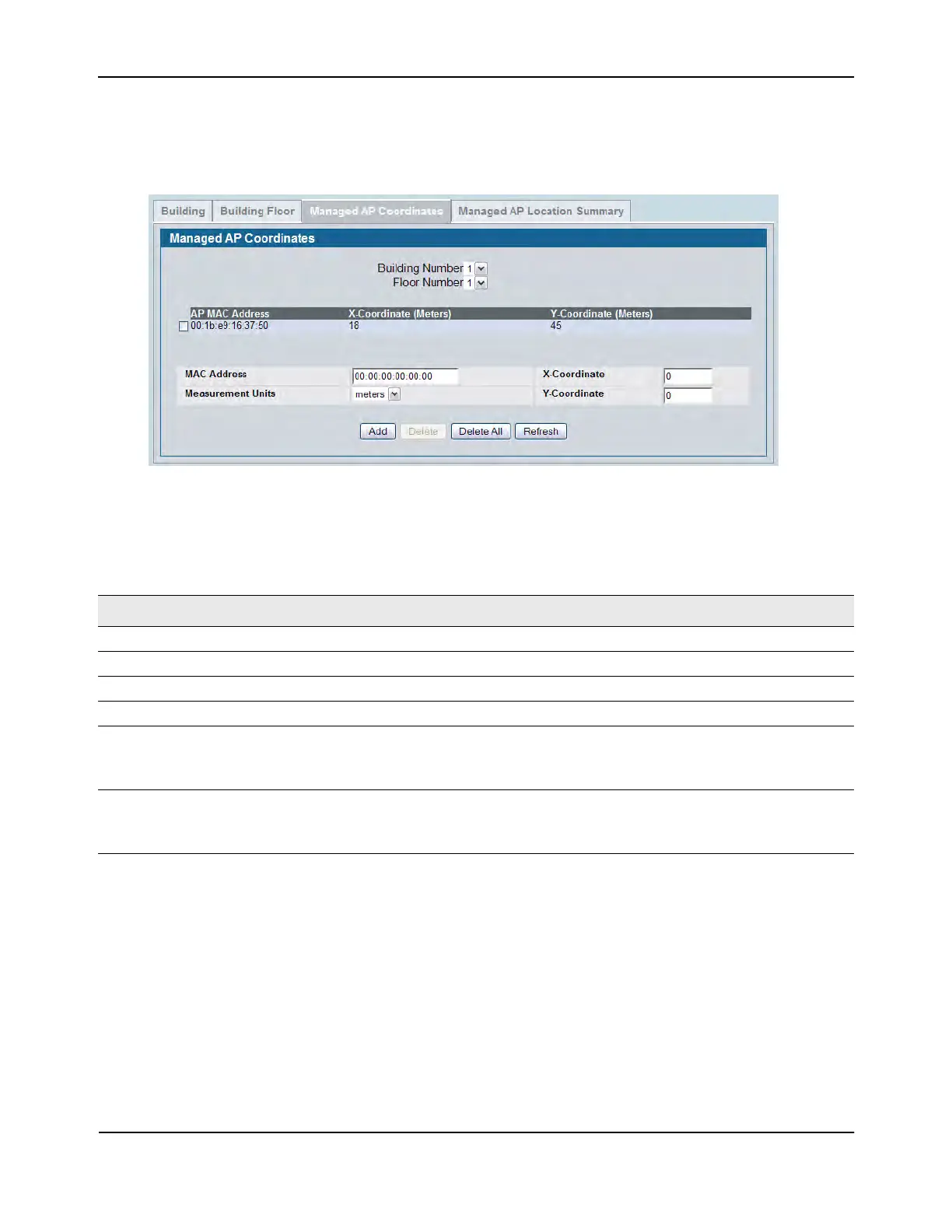

Figure 410: Managed AP Coordinates
The following table shows the fields available on the Managed AP Coordinates page.
Command Buttons
The page includes the following buttons:
• Add— Adds the AP information defined in the fields to the selected building and floor.
• Delete— Removes the selected AP from the database.
• Delete All—Removes all APs configured in the database.
• Refresh—Updates the page with the latest information.
Table 376: Managed AP Coordinates
Field Description
Building Number Select the number that identifies the building where the AP is located.
Floor Number Select the number that identifies the floor where the AP is located.
AP MAC Address Identifies the MAC address of the AP
Measurement Units Specify whether the coordinate units are meters or feet.
X-Coordinate Specify the X axis offset of the managed AP from some arbitrary 0,0 point on the
building floor. By convention the X axis is the horizontal axis.
The range is –3000 to 3000 feet or –1000 to 1000 meters.
Y-Coordinate Specify the Y axis offset of the managed AP from some arbitrary 0,0 point on the
building floor. By convention the Y axis is the vertical axis.
The range is –3000 to 3000 feet or –1000 to 1000 meters.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
