Configuring RIP
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 308
D-Link UWS User Manual
RIP Interface Summary
Use the RIP Interface Summary page to display RIP configuration status on an interface.
To display the page, click LAN > Monitoring > L3 Status > RIP > Interface Summary in the navigation tree.

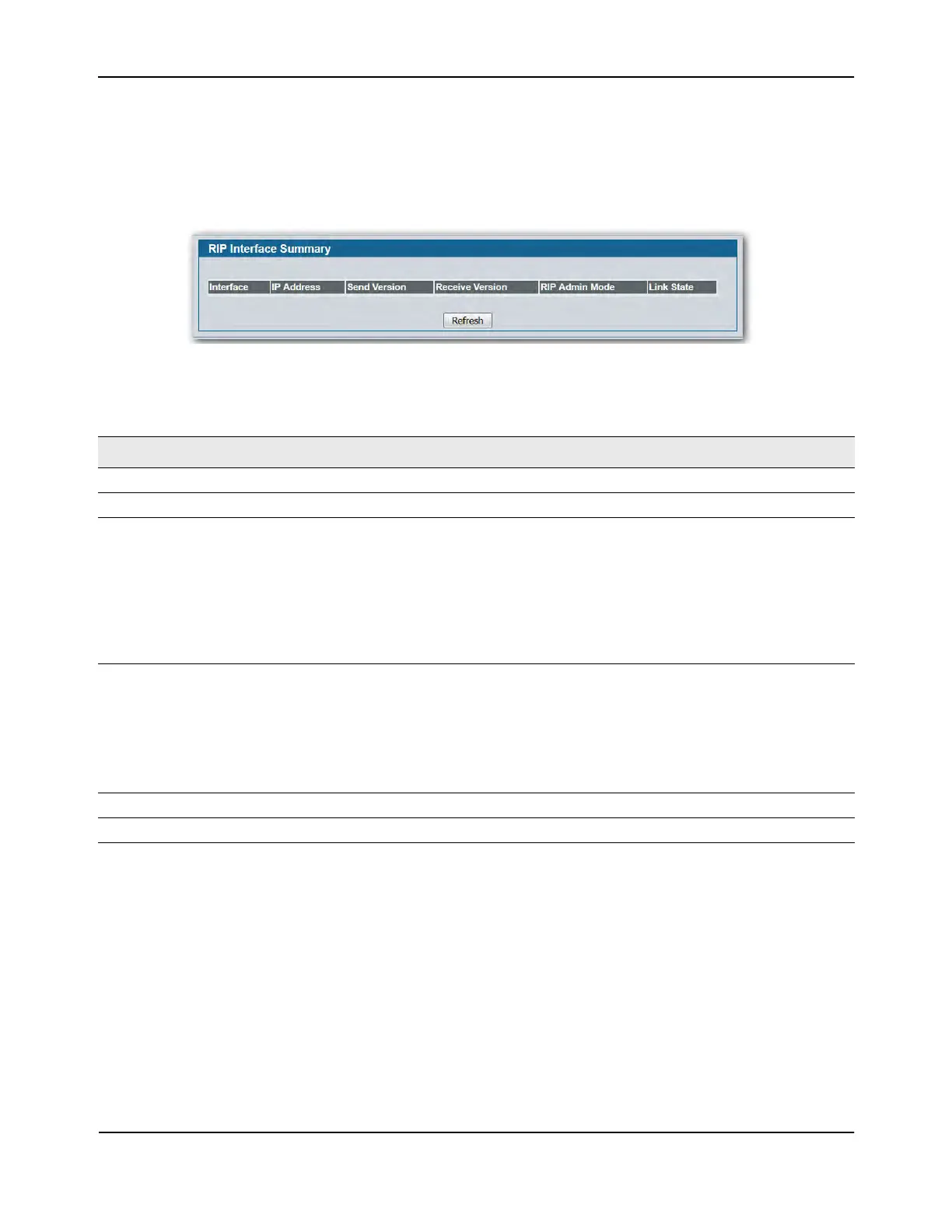

Figure 197: RIP Interface Summary
• Click Refresh to update the information on the screen.
Table 179: RIP Interface Summary Fields
Field Description
Interface The interface, such as the routing-enabled VLAN on which RIP is enabled.
IP Address The IP Address of the router interface.
Send Version Specifies the RIP version to which RIP control packets sent from the interface
conform. The default is RIP-2. Possible values are:
• RIP-1: RIP version 1 packets are sent using broadcast.
• RIP-1c: RIP version 1 compatibility mode. RIP version 2 formatted packets
are transmitted using broadcast.
• RIP-2: RIP version 2 packets are sent using multicast.
• None: RIP control packets are not transmitted.
Receive Version Specifies which RIP version control packets are accepted by the interface. The
default is Both. Possible values are:
• RIP-1: only RIP version 1 formatted packets are received.
• RIP-2: only RIP version 2 formatted packets are received.
• Both: packets are received in either format.
• None: no RIP control packets are received.
RIP Admin Mode Specifies whether RIP is Enabled or Disabled on the interface.
Link State Specifies whether the RIP interface is up or down.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
