Viewing Multicast Forwarding Database Information
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 239
D-Link UWS User Manual
• To search for a MAC address if the list is too long to scan, enter the MAC address in hex format and click
Search.
• Click Refresh to update the information on the screen with the most current data.
MFDB GMRP Table
Use the GMRP Table page to view all of the entries in the Multicast Forwarding Database that were created
for the GARP Multicast Registration Protocol.
To access the GMRP Table page, click LAN > Monitoring > Multicast Forwarding Database > GMRP Table in
the navigation tree.

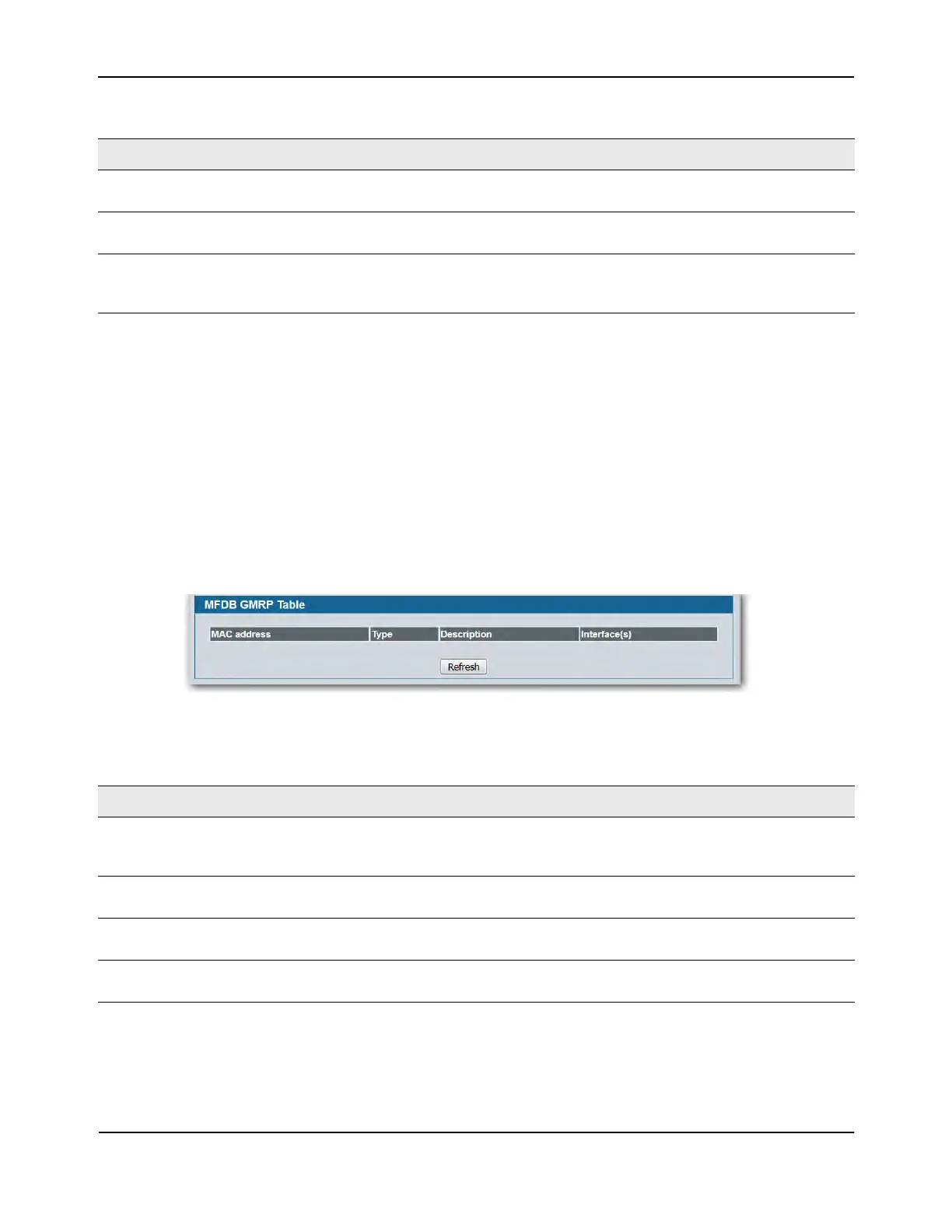

Figure 144: GMRP Table
• Click Refresh to update the information on the screen with the most current data.
Description The text description of this multicast table entry. Possible values are
Management Configured, Network Configured and Network Assisted.
Interface(s) The list of interfaces that are designated for forwarding (Fwd) and filtering
(Flt) for the selected address.
Forwarding Slot/Port(s) The resultant forwarding list is derived from combining all the forwarding
interfaces and removing the interfaces that are listed as the static filtering
interfaces.
Table 128: GMRP Table Fields
Field Description
MAC Address A VLAN ID/multicast MAC address pair for which the switch has forwarding and or filtering
information. The format is 8 two-digit hexadecimal numbers that are separated by colons,
for example 00:01:23:45:67:89:AB:CD.
Type This displays the type of the entry. Static entries are those that are configured by the end
user. Dynamic entries are added to the table as a result of a learning process or protocol.
Description The text description of this multicast table entry. Possible values are Management
Configured, Network Configured and Network Assisted.
Interface(s) The list of interfaces that are designated for forwarding (Fwd) and filtering (Flt) for the
associated address.
Table 127: MFDB Table Fields (Cont.)
Field Description

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
