Visualizing the Wireless Network
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 678
D-Link UWS User Manual

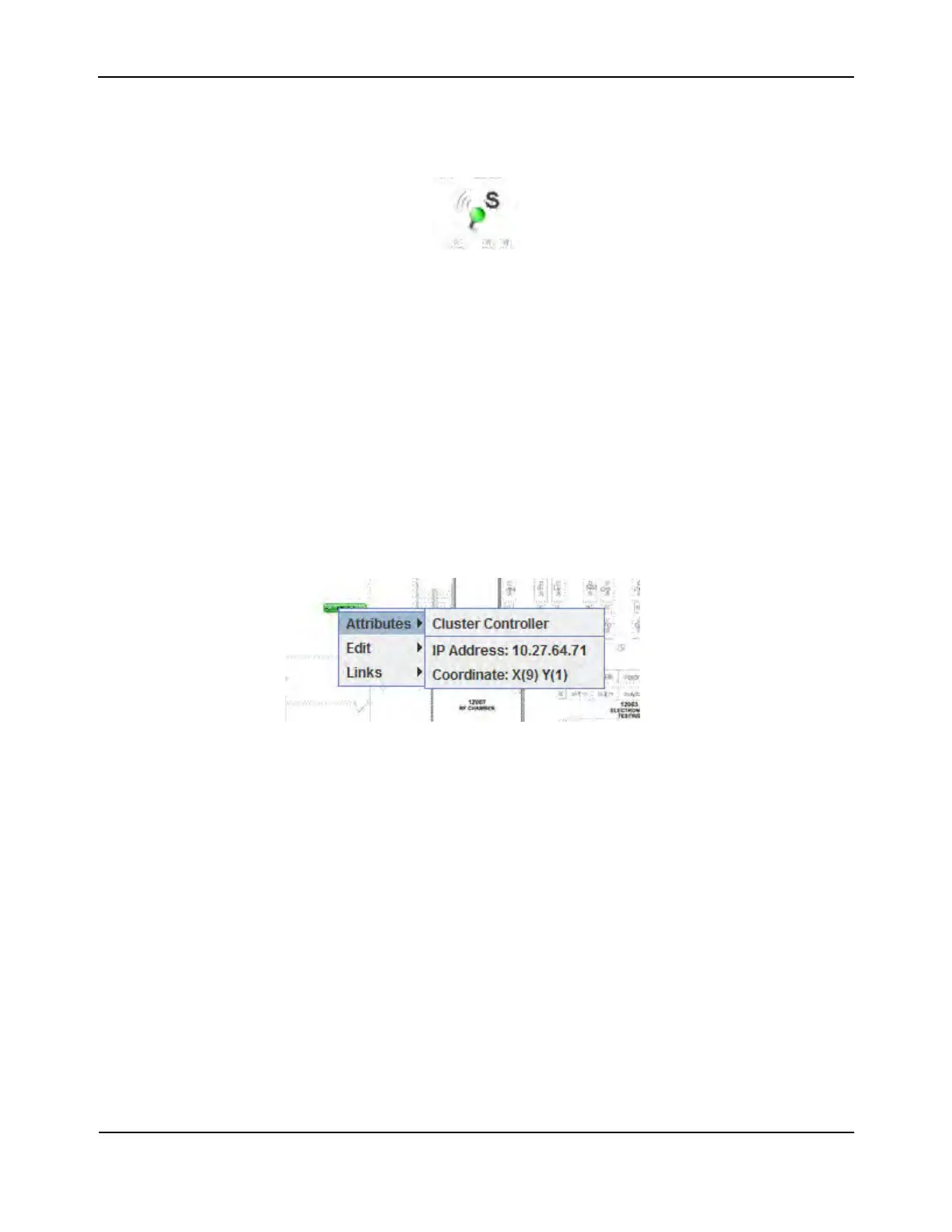

A radio operating in Sentry Mode displays the letter “S” in place of the antenna on the AP icon, as Figure 431
shows.
Figure 431: Sentry Mode—Detailed View
When the AP Power Display is enabled, radios in sentry mode show a gray AP power display image around the
AP.
The Channel Color legend maps the color of the power display image to the channel that the image color
represents. The color corresponds to the channel that the radio is using for transmission. The available
channels depend on the mode and country of operation.
Viewing Component Information
After you place a component on the graph, you can right-click the component to learn more information about
it, ungraph it, or to access a page on the Web UI to manage or monitor the component. You must be logged
on to the switch for the links to be active.
Figure 432: Wireless Component Attributes

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
