D-Link DWL-8610AP User Manual

Loopback Interfaces
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 302
D-Link UWS User Manual

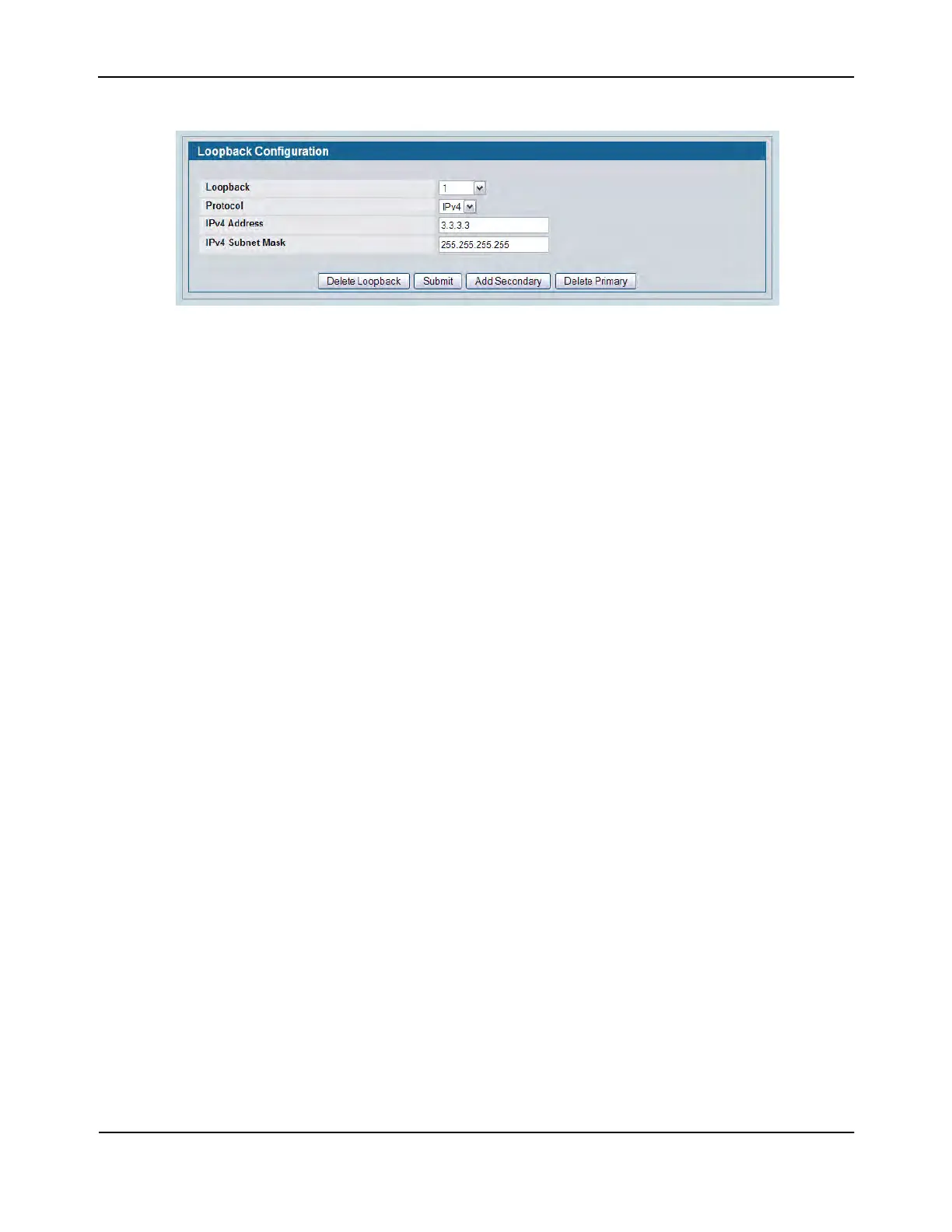

Figure 192: Loopbacks Configuration—IPv4 Entry
4. In the Protocol field, select IPv4
5. Enter desired values in the remaining fields.
6. Click Submit.
The new loopback is saved, and the web page reappears showing secondary address configuration fields.
For an example of the fields on this page, see Figure 191.
7. Optionally, click the Add Secondary field to add a secondary IP address and complete the Secondary
Address, Secondary IP Address, and Secondary Subnet Mask fields.
8. Click Submit.
Removing a Loopback
1. Open the Loopback Configuration page.
2. Specify the loopback to remove in the Loopback menu.
3. Click Delete Loopback.
The loopback is deleted, and the device is updated.
Removing a Secondary Address
1. Open the Loopback Configuration page.
2. Specify the loopback to be affected.
3. Specify the secondary address to be removed.
4. Click Delete Selected Secondary.
The secondary address is deleted, and the device is updated.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
