Configuring IGMP Snooping
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 215
D-Link UWS User Manual
Interface Configuration
Use the IGMP Snooping Interface Configuration page to configure IGMP snooping settings on specific
interfaces.
To access the IGMP Snooping Interface Configuration page, click LAN > L2 Features> IGMP Snooping >
Interface Configuration in the navigation tree.

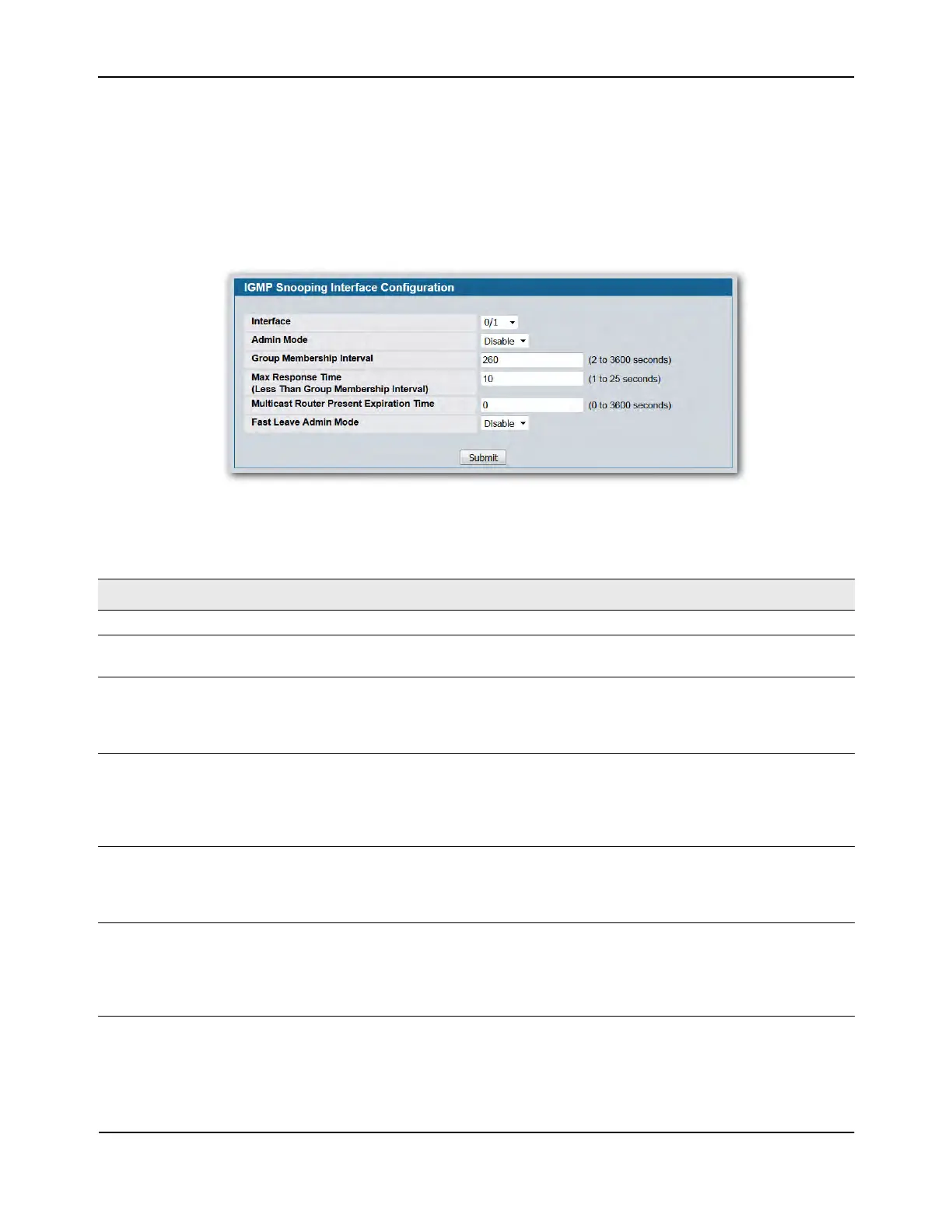

Figure 120: IGMP Snooping Interface Configuration
• If you make any changes on the page, click Submit to apply the new settings to the switch.
Table 104: IGMP Snooping Interface Configuration Fields
Field Description
Interface Select the physical or LAG interfaces to configure.
Admin Mode Select the interface mode for the selected interface for IGMP Snooping for the
switch from the pulldown menu. The default is disable.
Group Membership Interval Specify the amount of time you want the switch to wait for a report for a
particular group on a particular interface before it deletes that interface from
the group. The valid range is from (2 to 3600) seconds. The default is 260
seconds.
Max Response Time Specify the amount of time you want the switch to wait after sending a query
on an interface because it did not receive a report for a particular group on
that interface. Enter a value greater or equal to 1 and less than the Group
Membership Interval in seconds. The default is 10 seconds. The configured
value must be less than the Group Membership Interval.
Multicast Router Present
Expiration Time
Specify the amount of time you want the switch to wait to receive a query on
an interface before removing it from the list of interfaces with multicast
routers attached. Enter a value between 0 and 3600 seconds. The default is 0
seconds. A value of zero indicates an infinite timeout; i.e., no expiration.
Fast Leave Admin Mode Select the Fast Leave mode for the a particular interface from the pulldown
menu. The default is Disable. Enabling Fast Leave mode allows the switch to
immediately remove the Layer 2 LAN interface from its forwarding table entry
upon receiving an IGMP leave message for that multicast group without first
sending out MAC-based general queries to the interface.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
