Configuring IGMP Snooping Queriers
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 225
D-Link UWS User Manual
IGMP Snooping Querier VLAN Status
Use this page to view the operational state and other information for IGMP snooping queriers for VLANs on
the network.
To access this page, click Monitoring > Querier VLAN Status in the navigation tree.

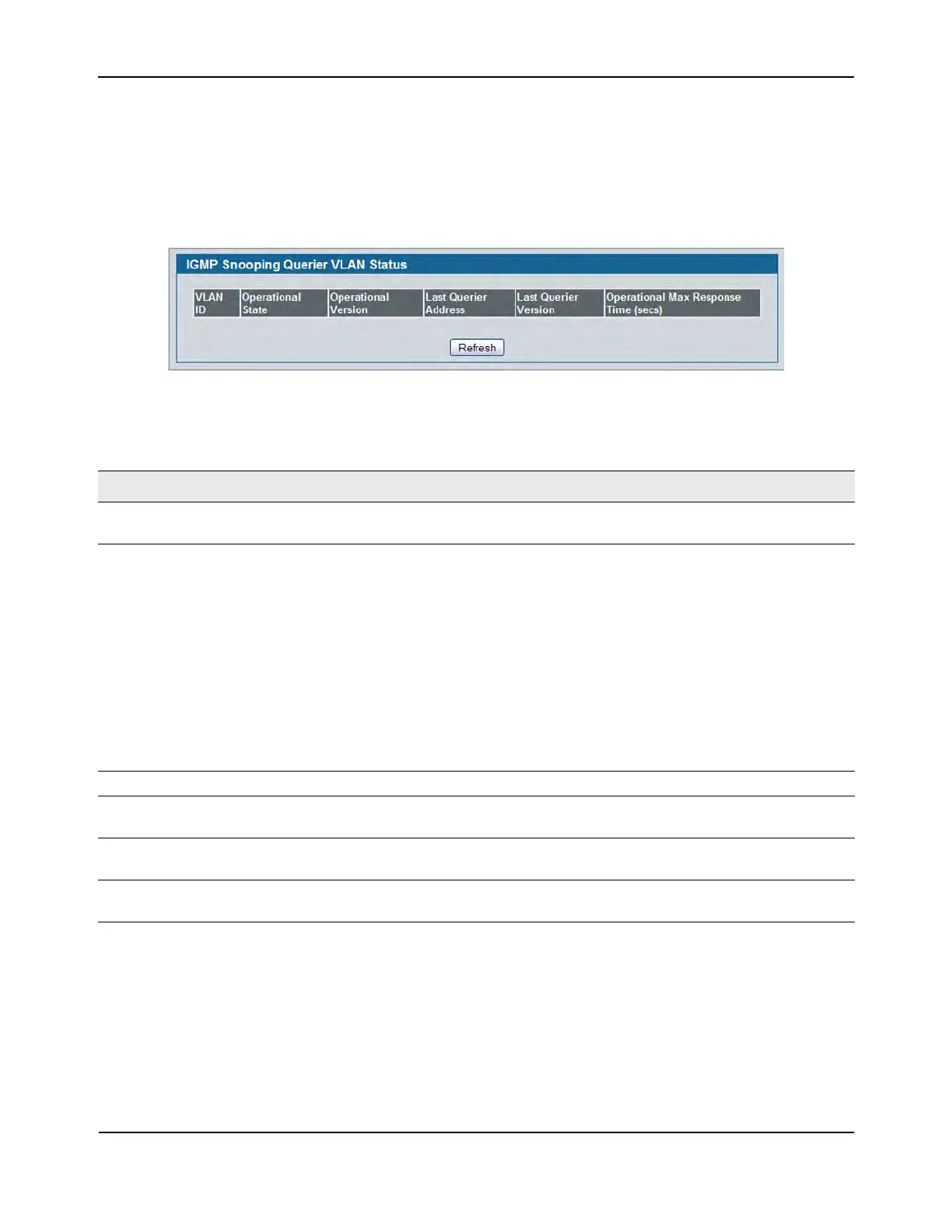

Figure 130: IGMP Snooping Querier VLAN Status
• Click Refresh to re-display the page with the latest information from the switch.
Table 114: IGMP Snooping Querier VLAN Status Fields
Field Description
VLANID Specifies the VLAN ID on which the IGMP Snooping Querier is administratively
enabled and for which VLAN exists in the VLAN database.
Operational State Specifies the operational state of the IGMP Snooping Querier on a VLAN:
• Querier: The snooping switch is the querier in the VLAN. The snooping
switch will send out periodic queries with a time interval equal to the
configured querier query interval. If the snooping switch sees a better
querier (numerically lower) in the VLAN, it moves to non-querier mode.
• Non-Querier: The snooping switch is in non-querier mode in the VLAN. If
the querier expiry interval timer expires, the snooping switch moves into
querier mode.
• Disabled: The snooping querier is not operational on the VLAN. The
snooping querier moves to disabled mode when IGMP snooping is not
operational on the VLAN, when the querier address is not configured, or
the network management address is not configured.
Operational Version Displays the IGMP protocol version of the operational querier.
Last Querier Address Displays the IP address of the last querier from which a query was snooped on
the VLAN.
Last Querier Version Displays the IGMP protocol version of the last querier from which a query was
snooped on the VLAN.
Operational Max Response
Time
Displays the maximum response time to be used in the queries that are sent
by the snooping querier.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
